Low Speed GMLAN Wiring Schematics

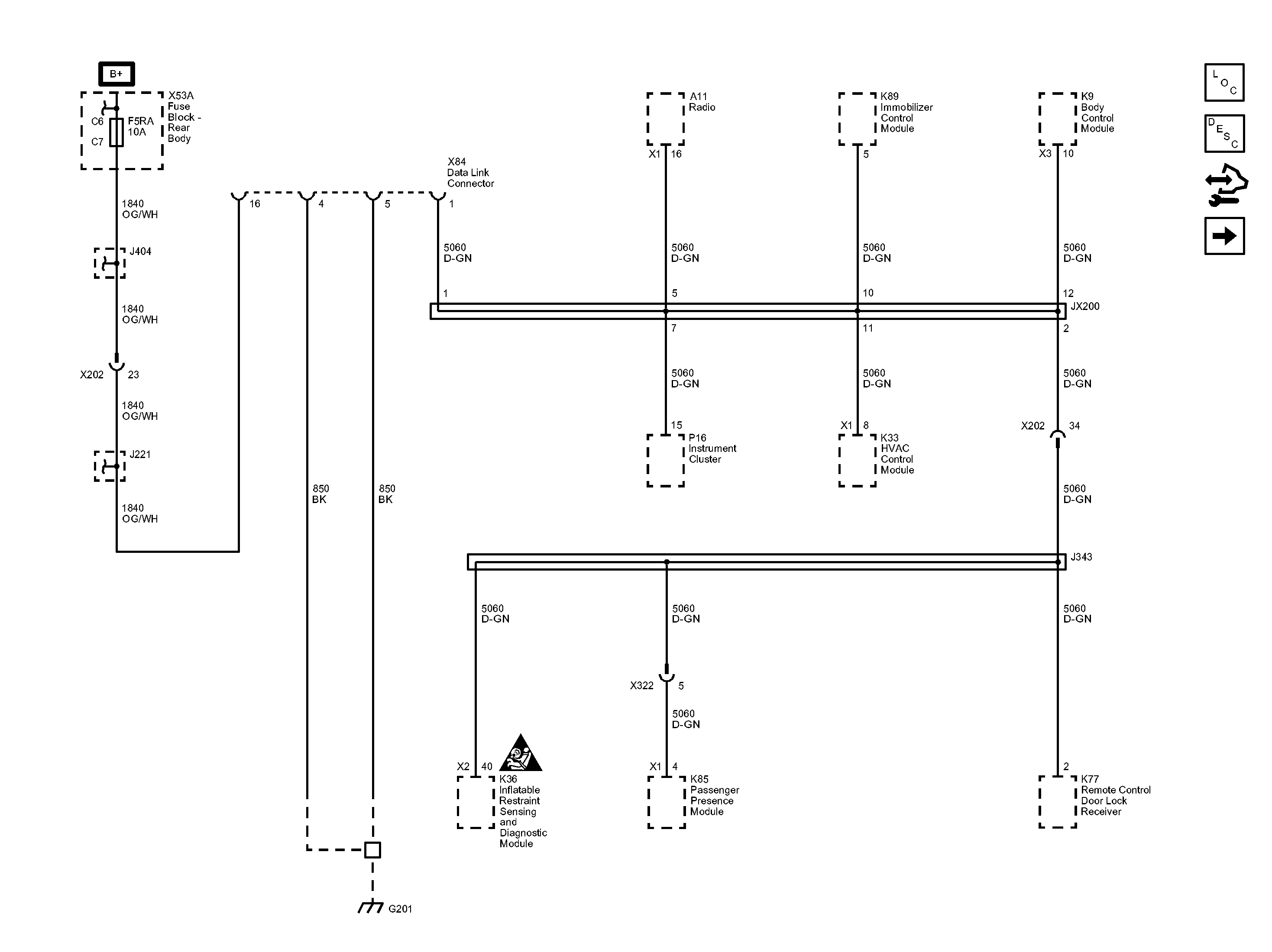

Fig 1: Low Speed GMLAN Wiring Schematic
GM2662706Courtesy of GENERAL MOTORS COMPANY
