Installation Procedure
WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

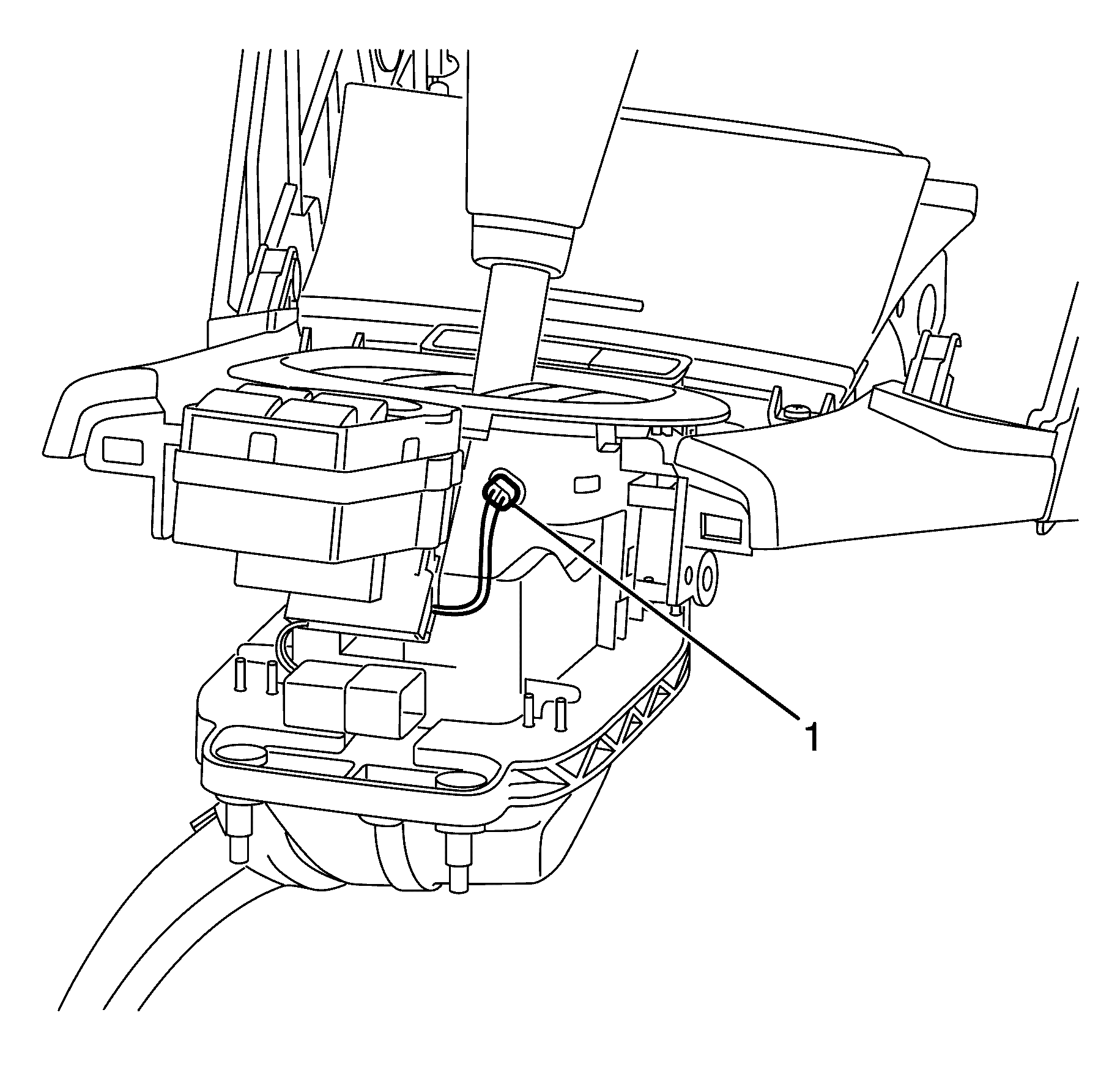

- Install a new transmission floor shift control indicator light bulb to the socket (1).
- Install the transmission floor shift control indicator lamp to the rear of the shift control housing by turning the lamp socket clockwise.
- Install the trim plate panel. Refer to Console Trim Plate Replacement (9C3) .
- Check the operation of the transmission floor shift control indicator light.
