Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.

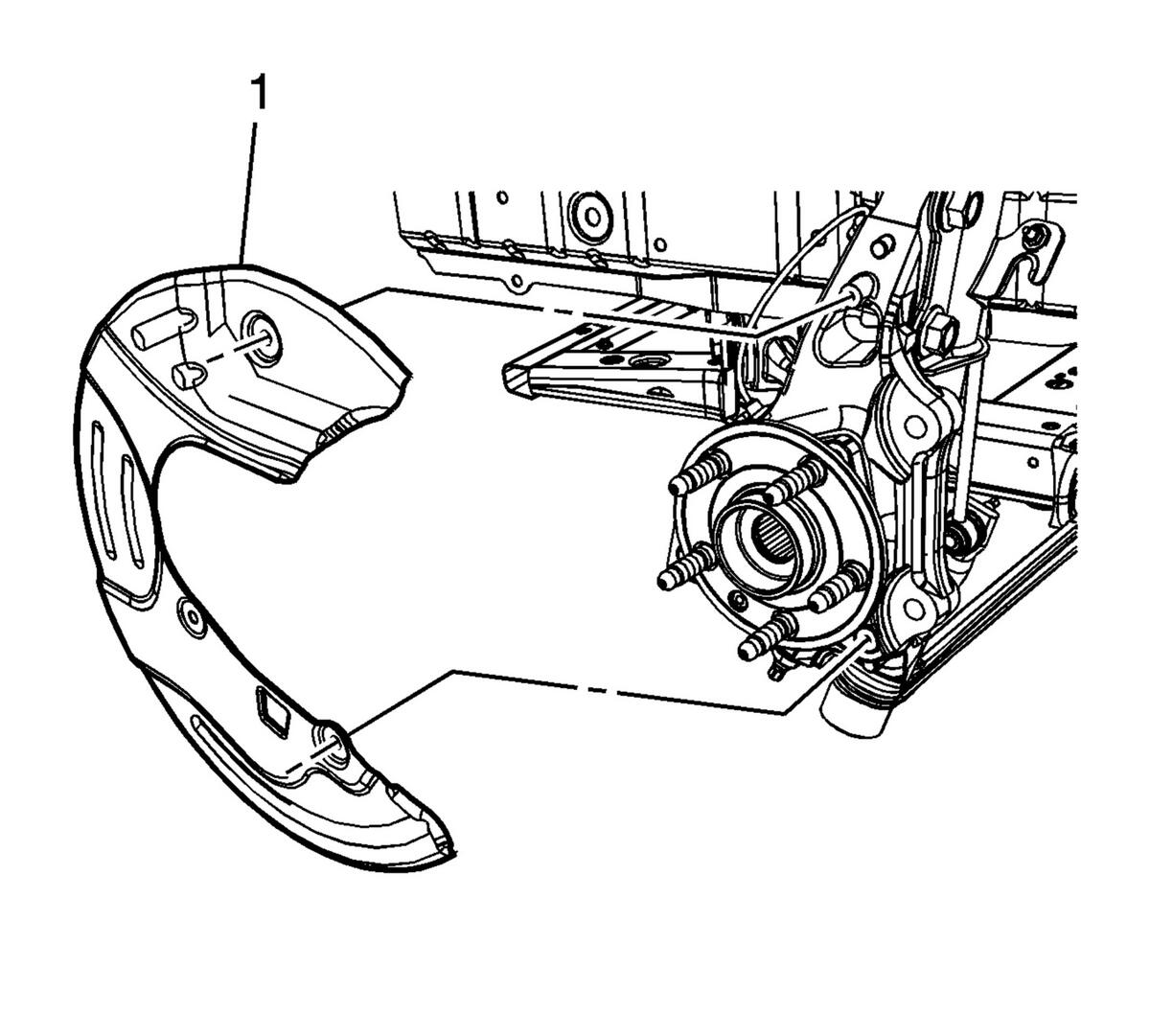

Fig 1: Front Brake Shield

Courtesy of GENERAL MOTORS CORP.

Install the front brake shield (1).

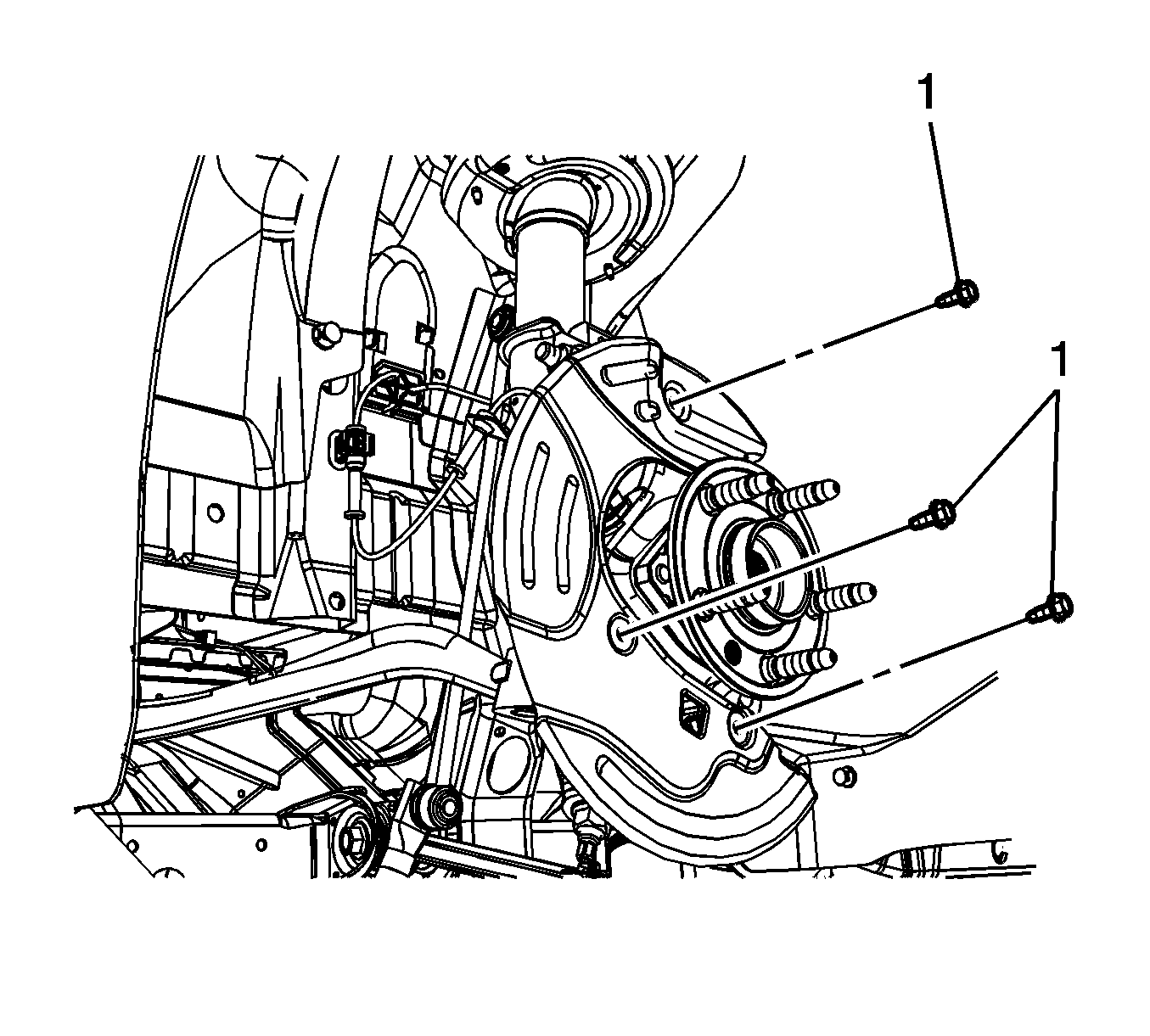

Fig 2: Front Brake Shield Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION:

Refer to Fastener Caution .

Install the front brake shield bolts (1) and tighten to 9 N.m (80 lb in).

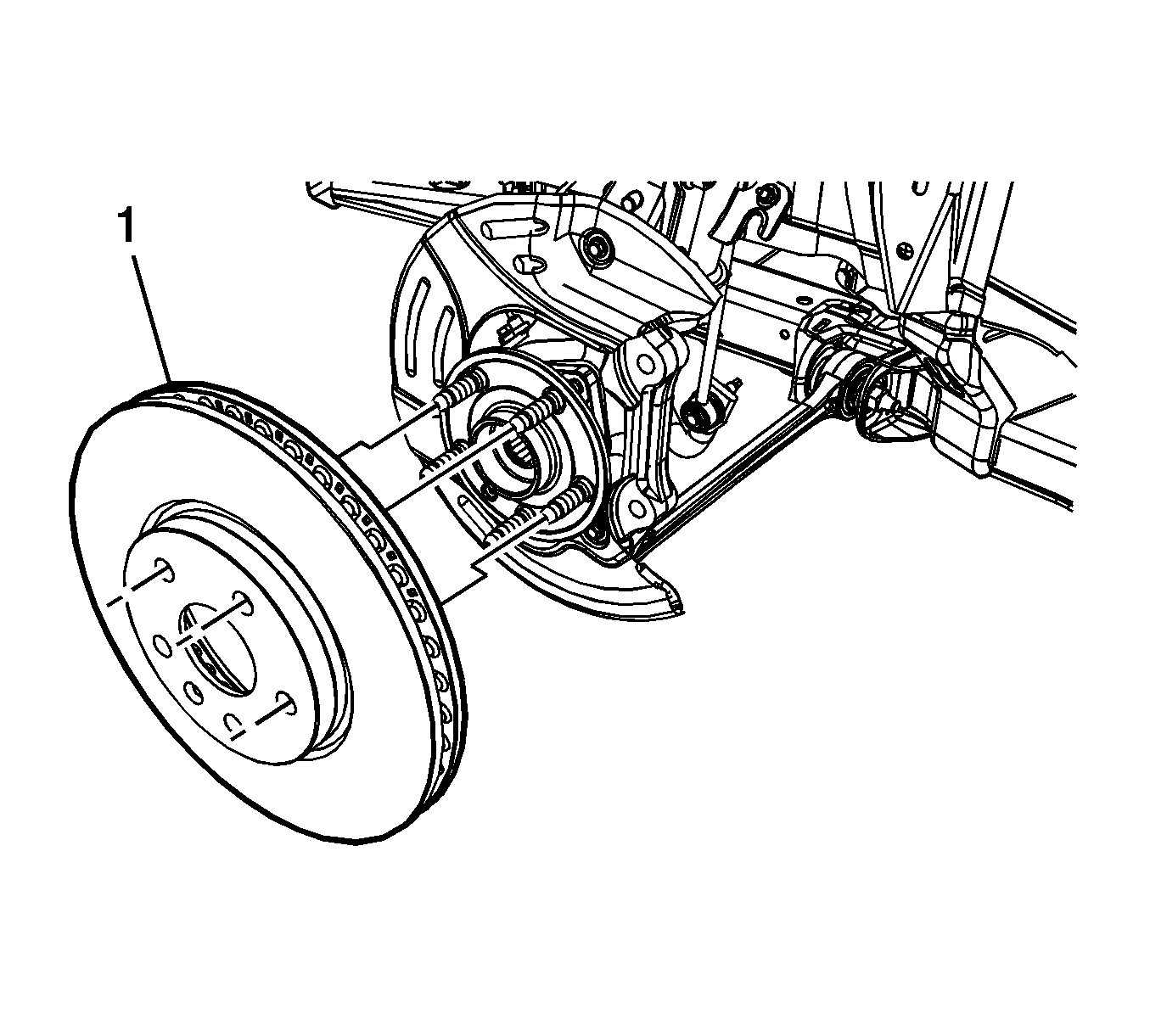

Fig 3: Disc Brake Rotor

Courtesy of GENERAL MOTORS CORP.

Install the front disc brake rotor (1). Refer to Front Brake Rotor Replacement .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
