Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Caprice. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the brake caliper, guide pins, seals and brake pad springs for damage and/or corrosion and replace, if necessary. Refer to Brake Caliper Inspection (Front) , Brake Caliper Inspection (Rear) .
  2. Clean the brake pad spring contact points on the brake caliper bracket of any corrosion or debris.

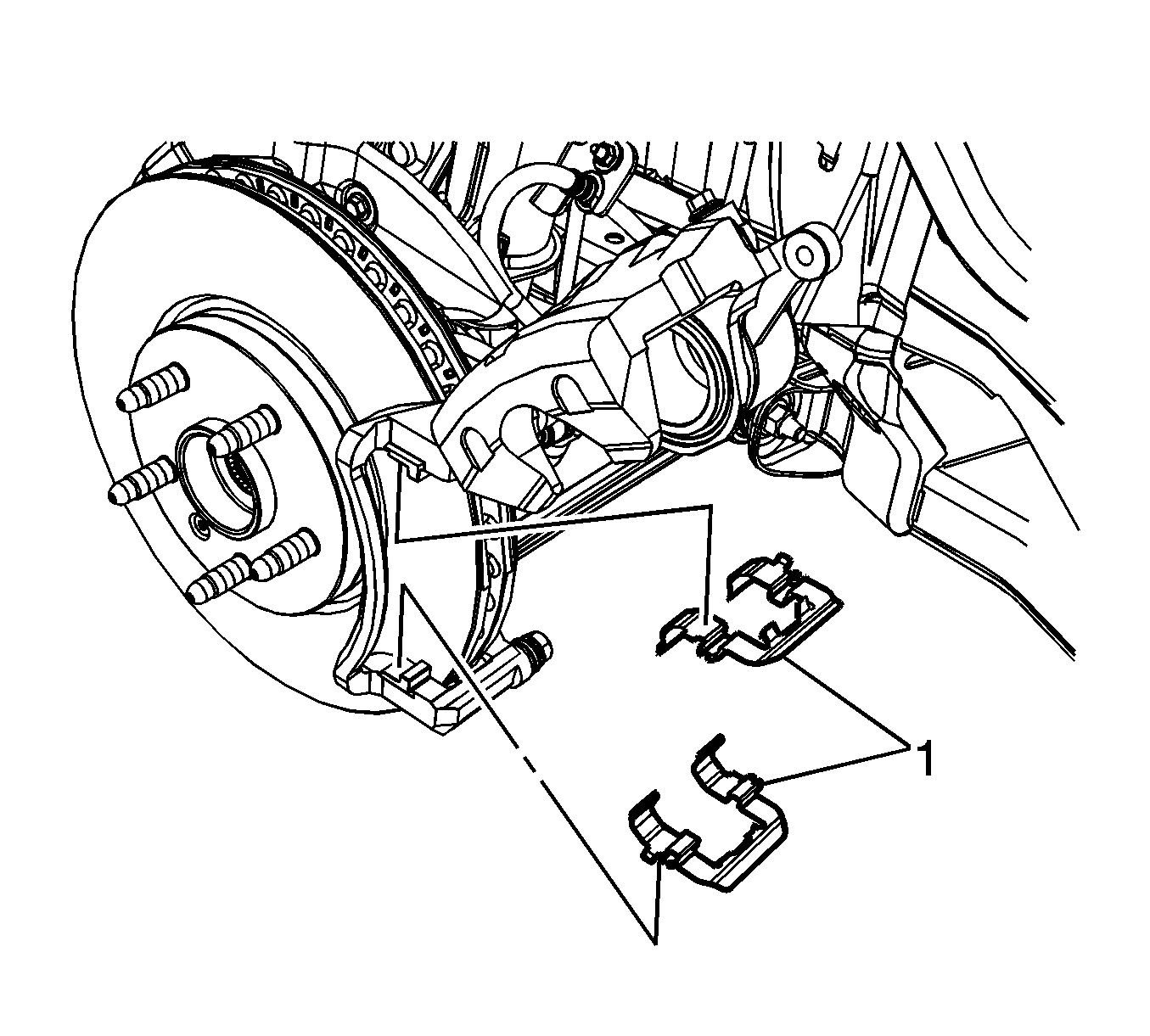

    3. Fig 1: Brake Pad Springs
    GM2243690Courtesy of GENERAL MOTORS CORP.
  3. Install the brake pad springs (1).

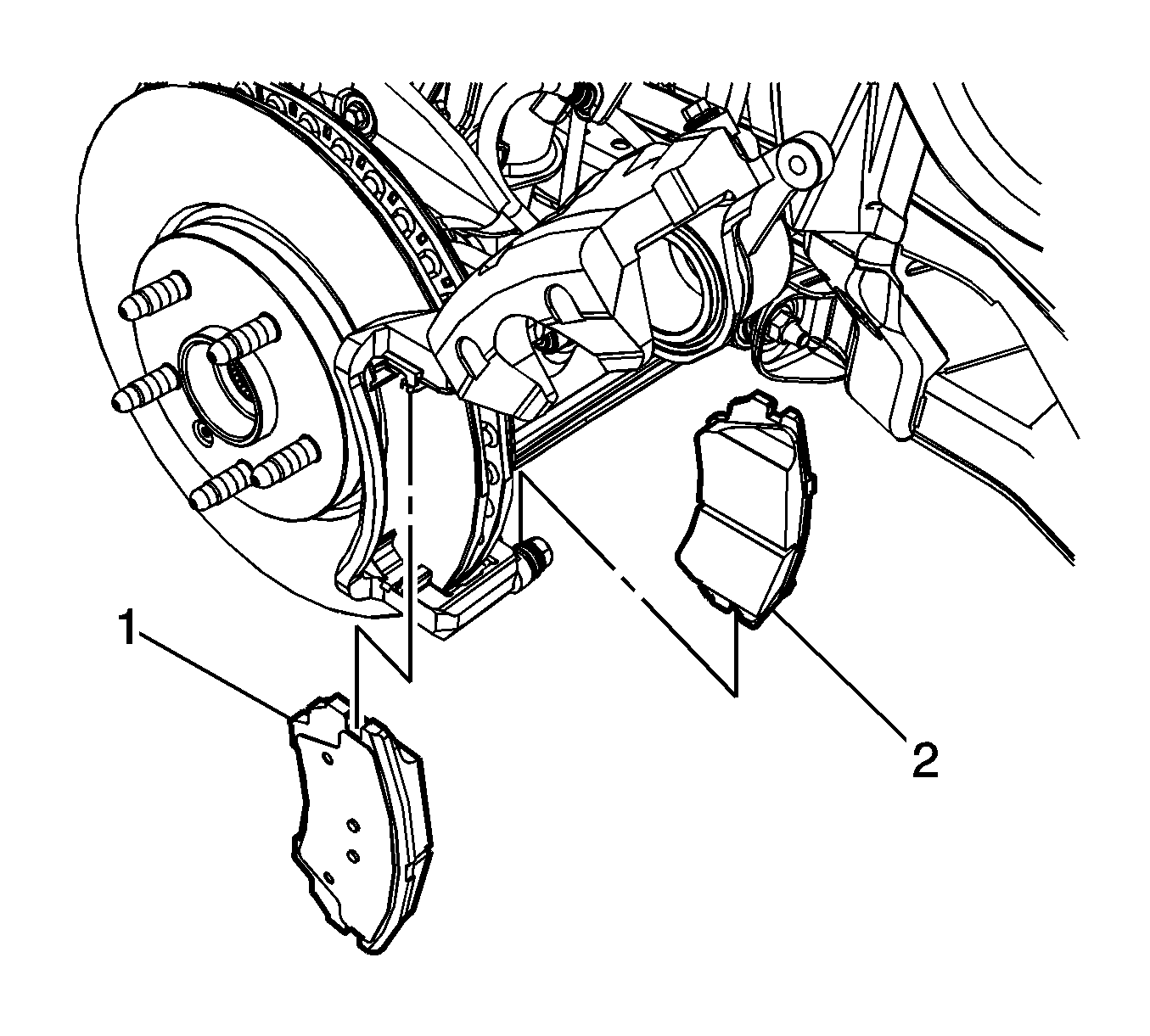

    4. Fig 2: Brake Pads
    GM2243689Courtesy of GENERAL MOTORS CORP.
  4. Install the outer brake pad (1).
  5. Install the inner brake pad (2).
  6. Rotate the brake caliper to the installed position.

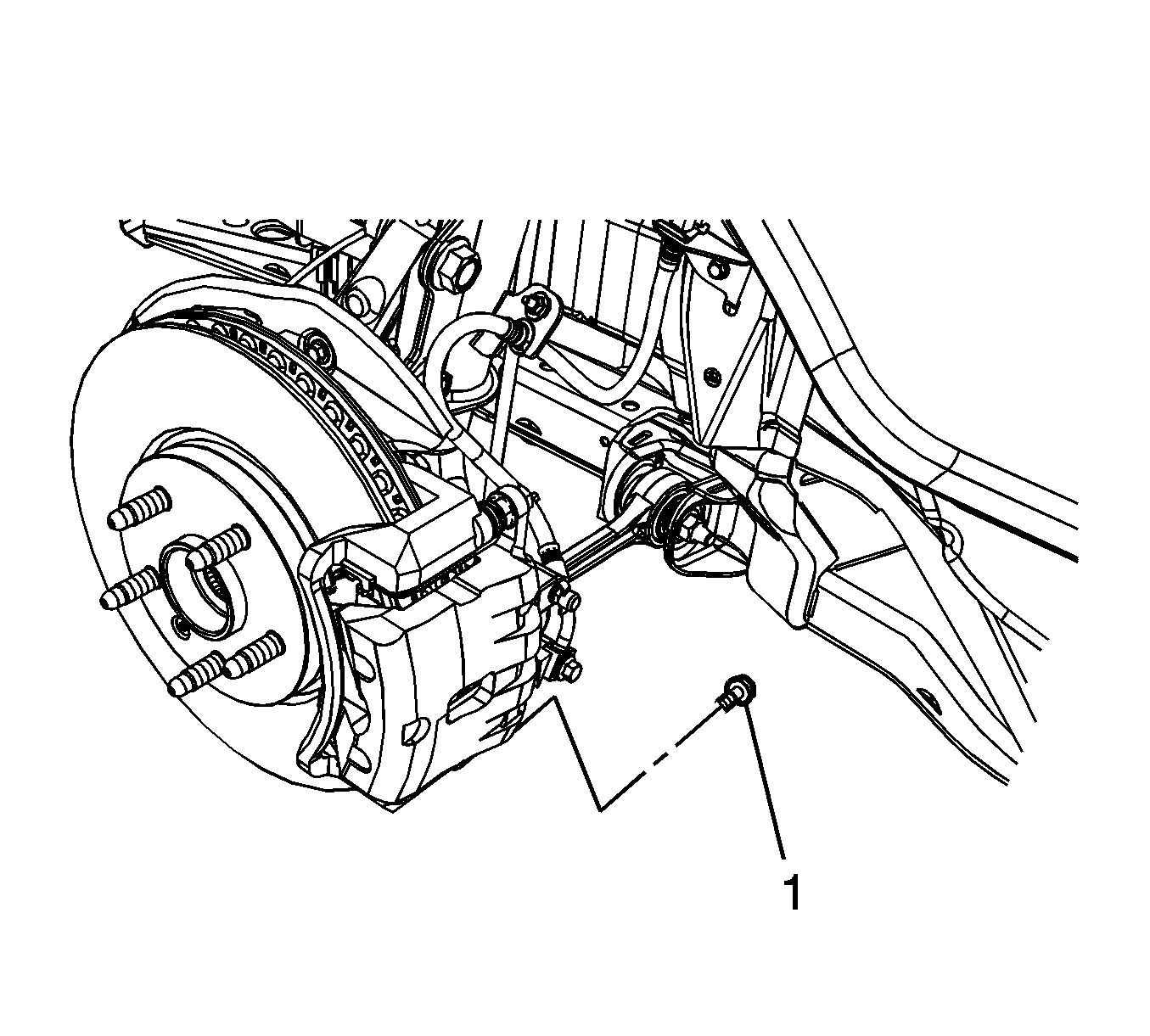

    7. Fig 3: Lower Brake Caliper Guide Pin Bolt
    GM2243688Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Install a new brake caliper guide pin bolt.

  7. Using a backup wrench on the brake caliper guide pin, install a new brake caliper guide pin bolt (1) and tighten to 27 N.m (20 lb ft).
  8. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  9. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
  10. Slowly release the brake pedal.
  11. Wait 15 seconds, then repeat steps 9 and 10 until a firm brake pedal apply is obtained. This will properly seat the brake caliper pistons and brake pads.
  12. Fill the brake master cylinder reservoir to the proper level. Refer to Master Cylinder Reservoir Filling .
  13. Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing .
