Installation Procedure

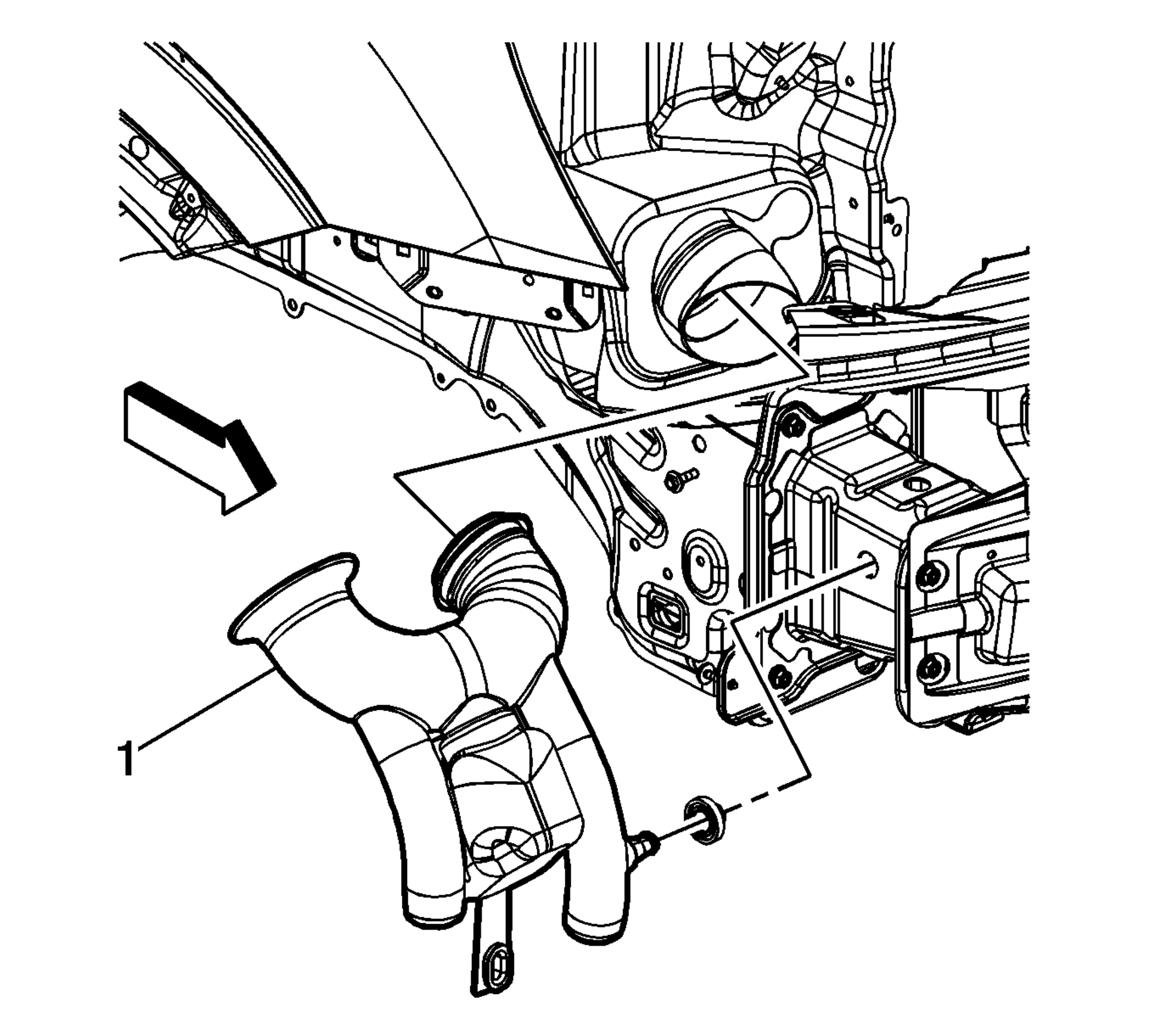

    Fig 1: Air Cleaner Inlet Duct
    GM1884766Courtesy of GENERAL MOTORS COMPANY
  1. Position the air cleaner inlet duct (1) in the vehicle body grommet and air cleaner assembly.

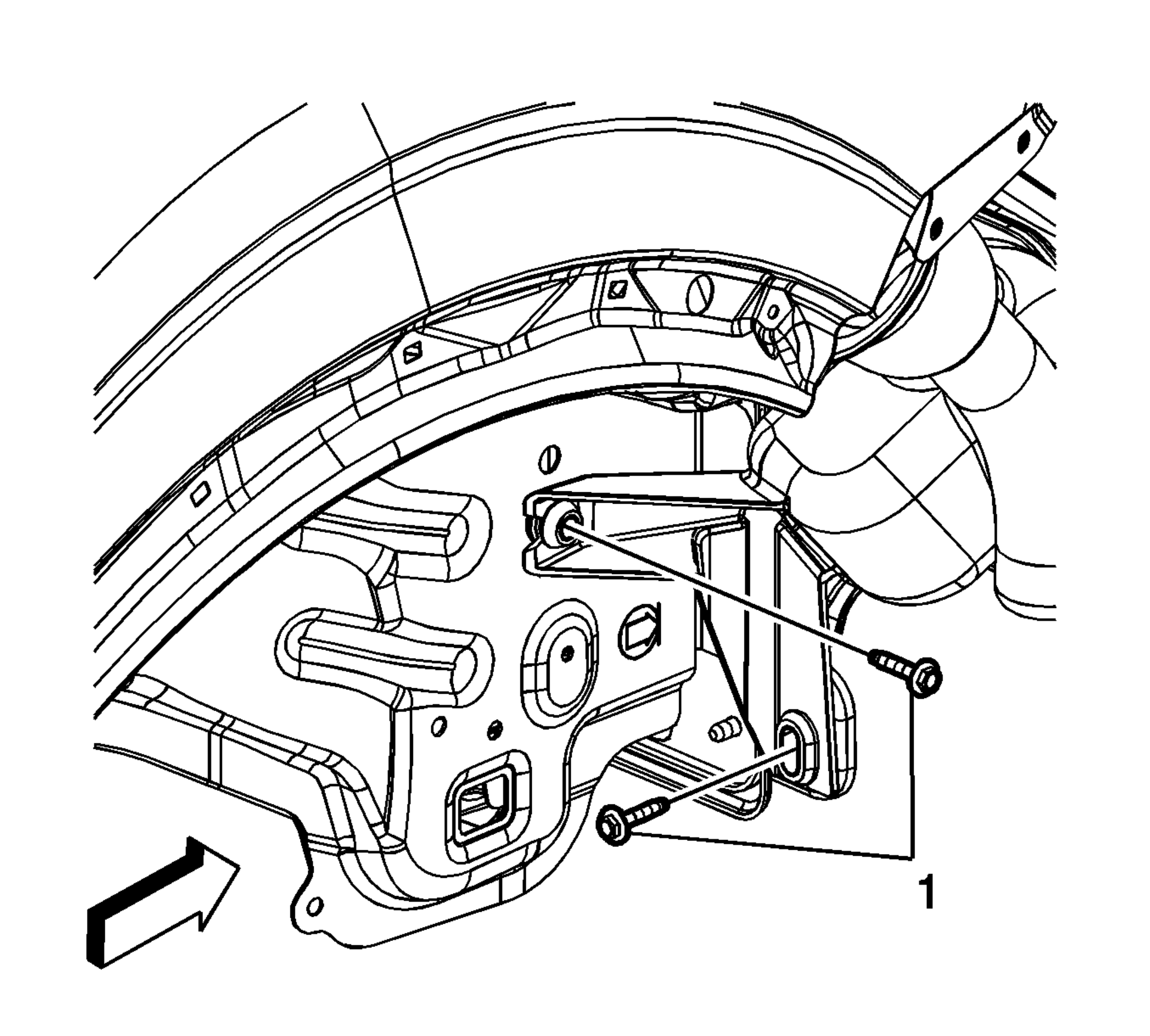

    2. Fig 2: Air Cleaner Inlet Duct Bolts
    GM1884764Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the air cleaner inlet duct bolts (1).

    Tighten

    Tighten the bolts to 6 N.m (53 lb in).

  3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Base) .
