Mass Airflow Sensor with Intake Air Temperature Sensor Replacement
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

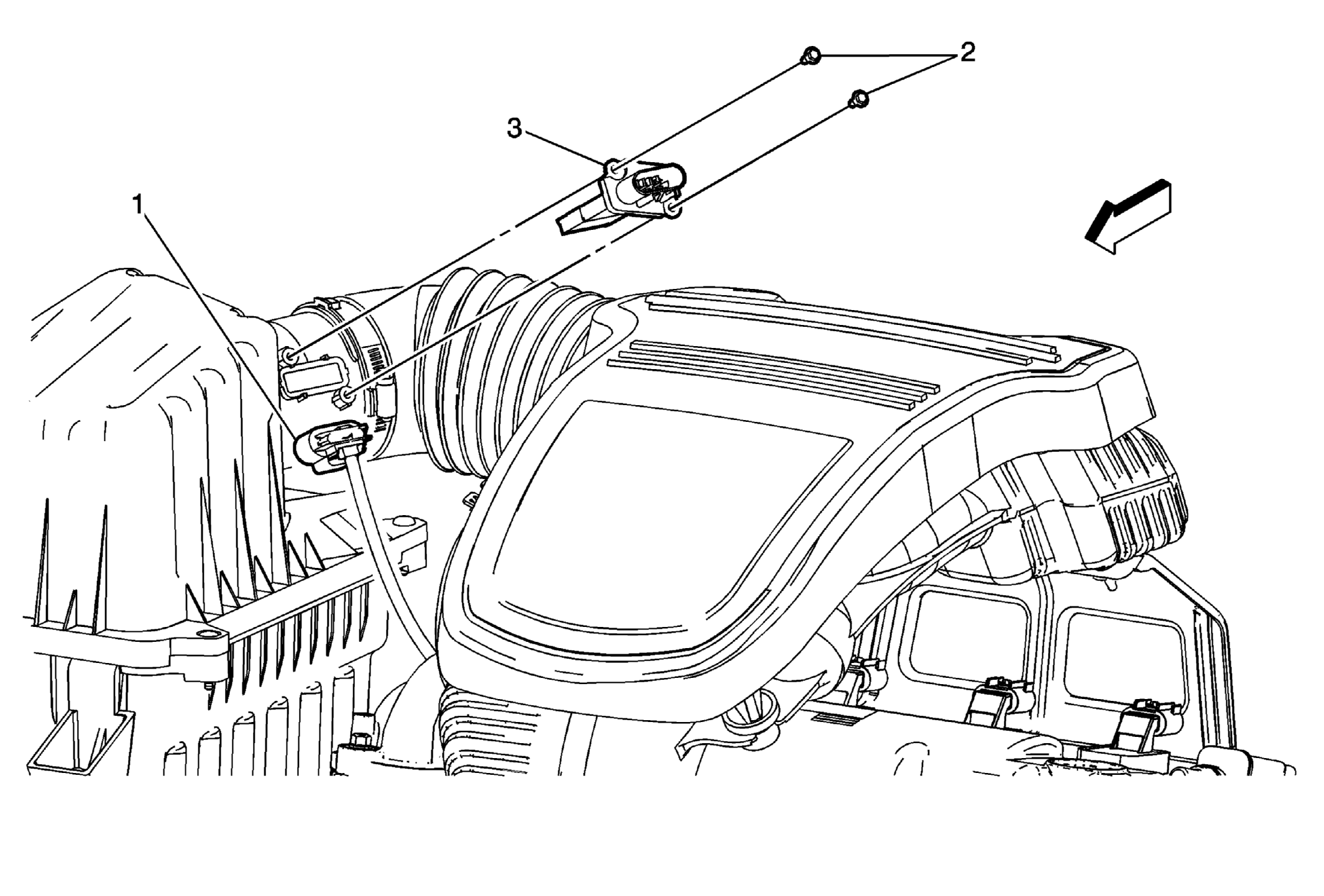

| Callout | Component Name |
|---|---|
| 1 | Mass Airflow Sensor/Intake Air Temperature Sensor Electrical Connector |
| 2 | Mass Airflow Sensor/Intake Air Temperature Sensor Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (34 lb in) |
| 3 | Mass Airflow Sensor/Intake Air Temperature Sensor |
