Installation Procedure

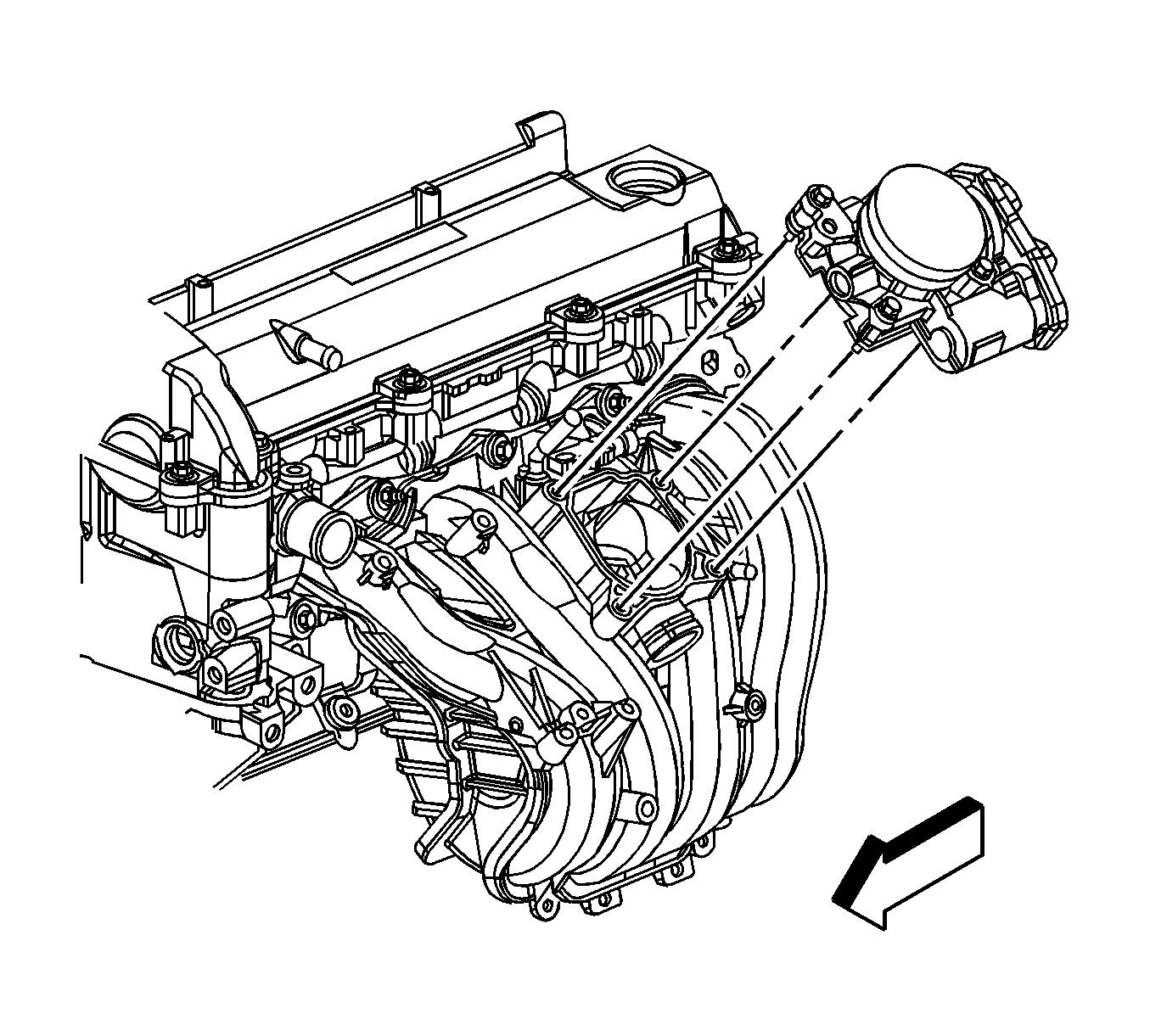

    Fig 1: View Of Throttle Body
    GM1810824Courtesy of GENERAL MOTORS COMPANY
  1. Install the throttle body assembly to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the throttle body assembly bolts and tighten to 10 N.m (89 lb in).
  3. Connect the engine wiring harness electrical connector to the throttle body assembly.
  4. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
