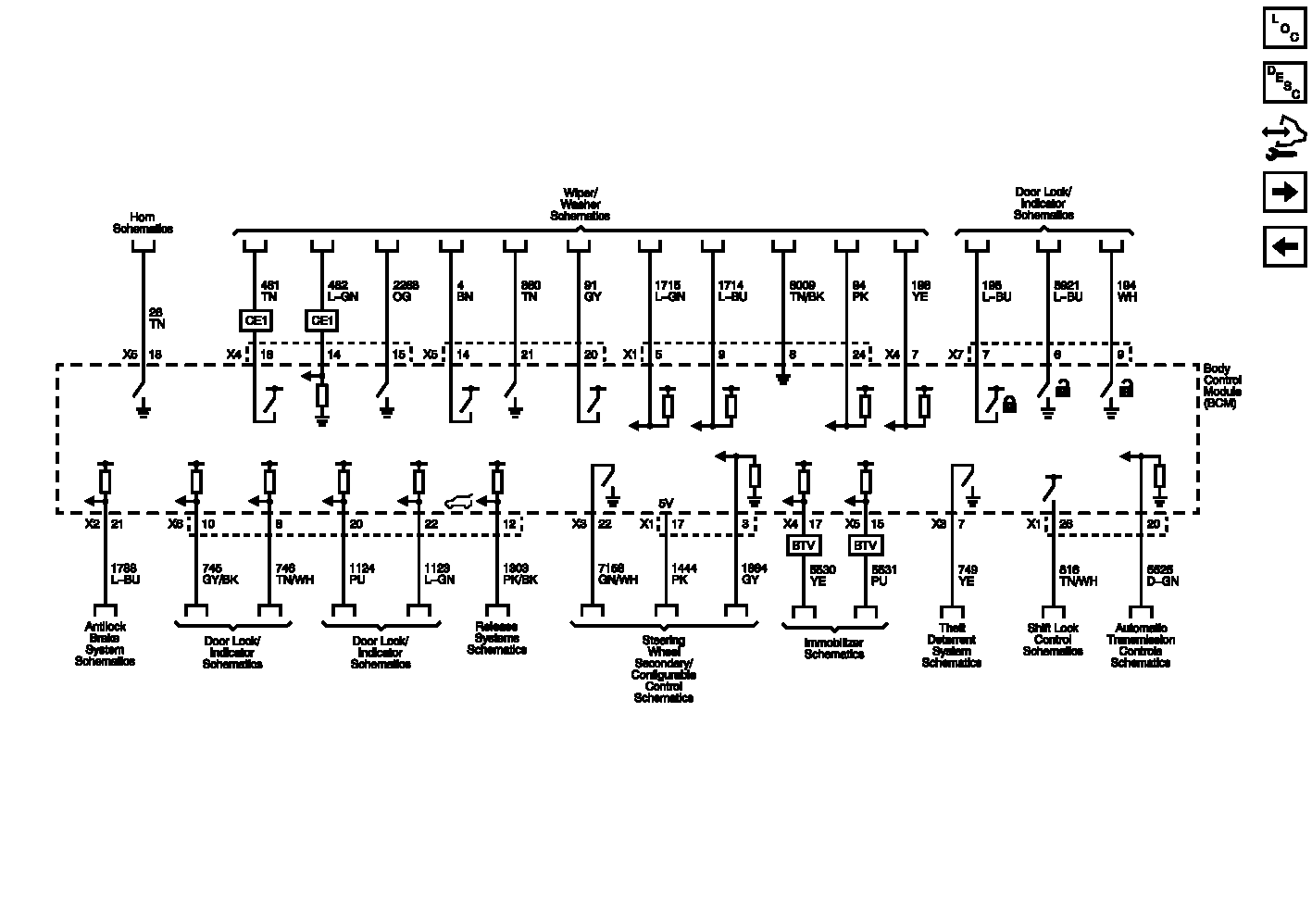

Home › Chevrolet › 2012 › Captiva Sport LS, AWD › Repair and Diagnosis › Engine Performance › System › Data Communications System › Schematic Wiring Diagrams › Body Control System Wiring Schematics › Subsystem References (1 of 3)
