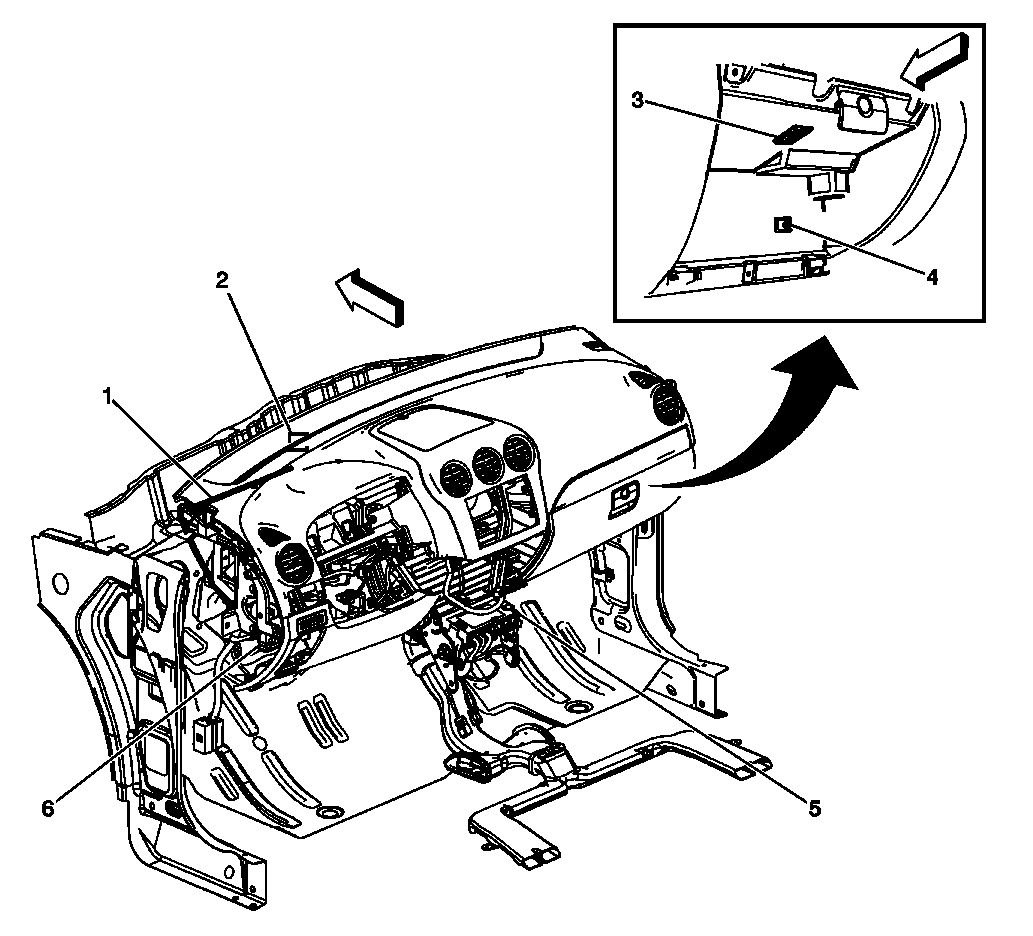

Behind the Instrument Panel Components
Behind the Instrument Panel Components
| Component Name | Callout |
|---|---|
| Remote Control Door Lock Receiver (RCDLR) Antenna - Extended Range (AP3) | 1 |
| GPS Navigational Antenna - Radio | 2 |
| I/P Compartment Lamp | 3 |
| I/P Compartment Lamp Switch | 4 |
| Body Control Module (BCM) | 5 |
| Remote Control Door Lock Receiver (RCDLR) (AP3) | 6 |
