Instrument Panel/Center Console Component Views
›
Floor Console Components

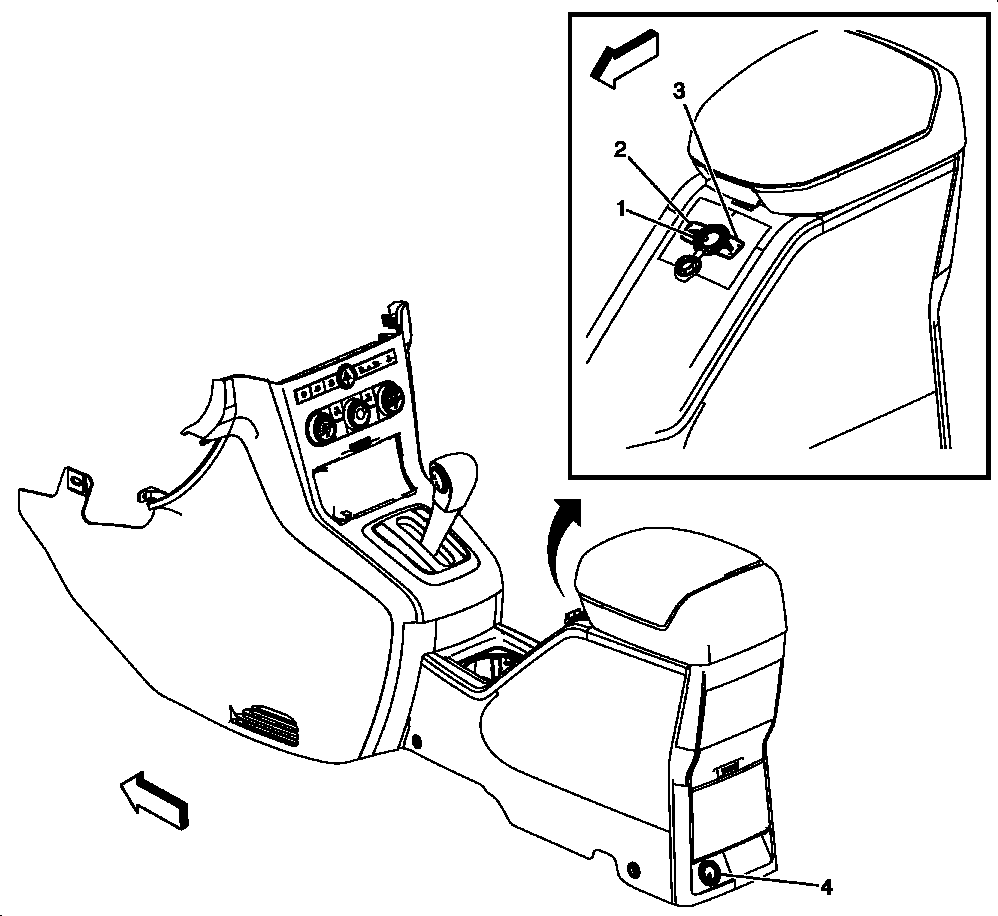

Floor Console Components
Courtesy of GENERAL MOTORS COMPANY
Floor Console Components
Component Name
Callout
Accessory Power Outlet - Console 1
1
Heated Seat Switch - Passenger (KA1)
2
Heated Seat Switch - Driver (KA1)
3
Accessory Power Outlet - Console 2
4
