Electrical Component Locator - Instrument Panel/Center Console Component Views
›
Instrument Panel/Center Console Component Views
›
HVAC Module Components
HVAC Module Components

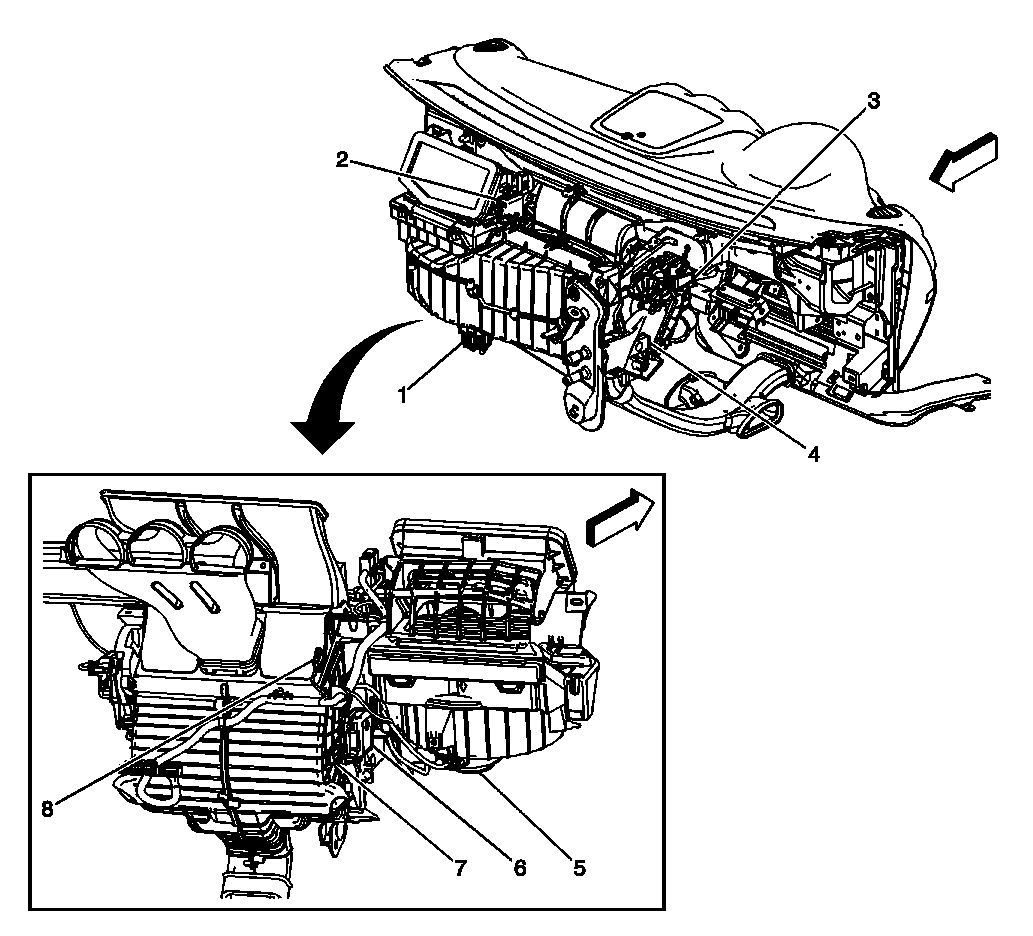

Courtesy of GENERAL MOTORS COMPANY
HVAC Module Components
Component Name
Callout
Blower Motor Control Module
1
Recirculation Actuator
2
Mode Actuator
3
Evaporator Temperature Sensor
4
Blower Motor
5
Air Temperature Actuator
6
Air Temperature Sensor - Lower (C68)
7
Air Temperature Sensor - Upper (C68)
8
