Engine Control Module Bracket Replacement
Engine Control Module Bracket Replacement

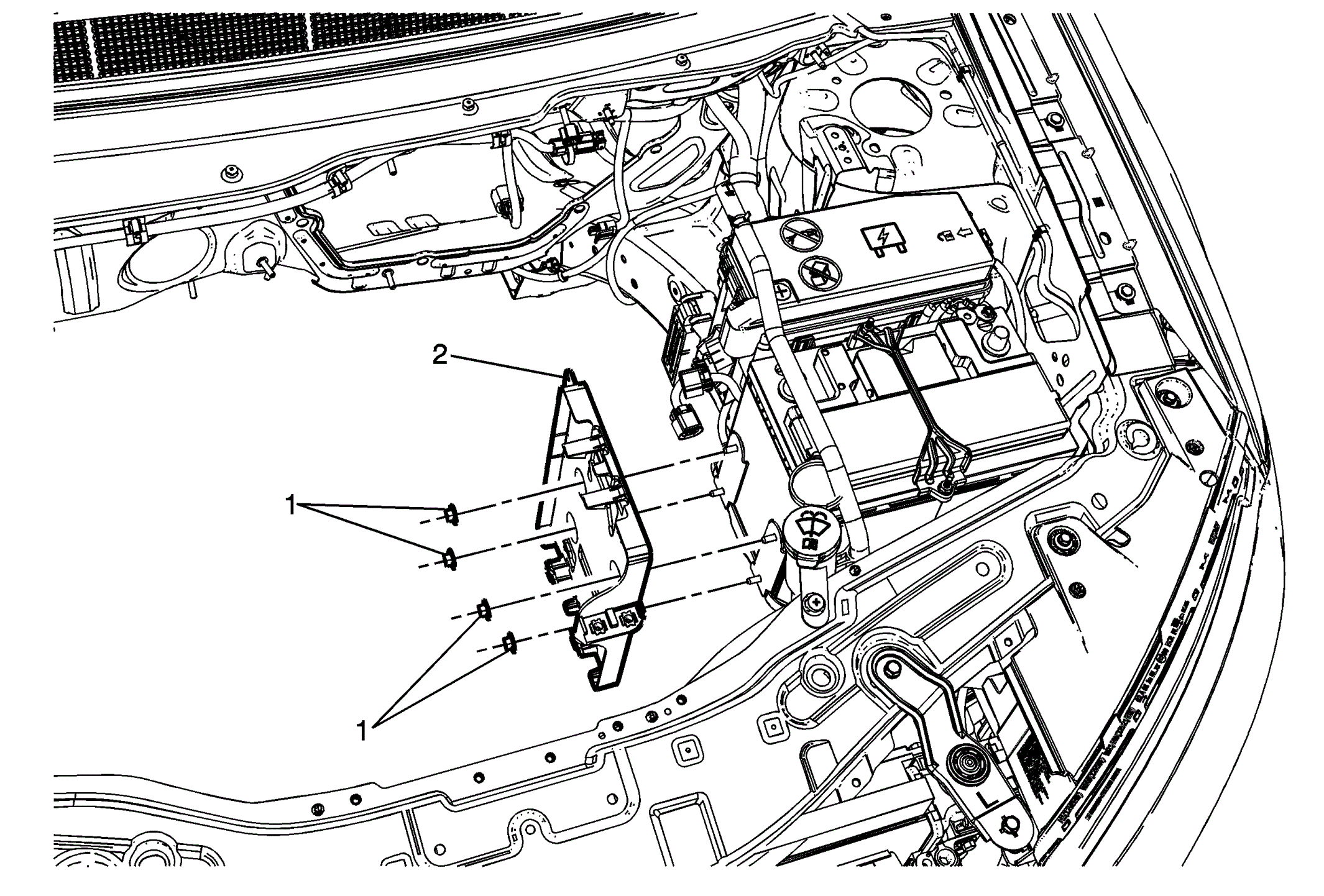

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine control module. Refer to Engine Control Module Replacement . |
|
| 1 | Engine Control Module Bracket Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m(89 lb in) |
| 2 | Engine Control Module Bracket |
