Chevy Express G1500, Van Passenger
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Data Communications System Wiring Schematics
›
High Speed GMLAN (Diesel)
High Speed GMLAN (Diesel)

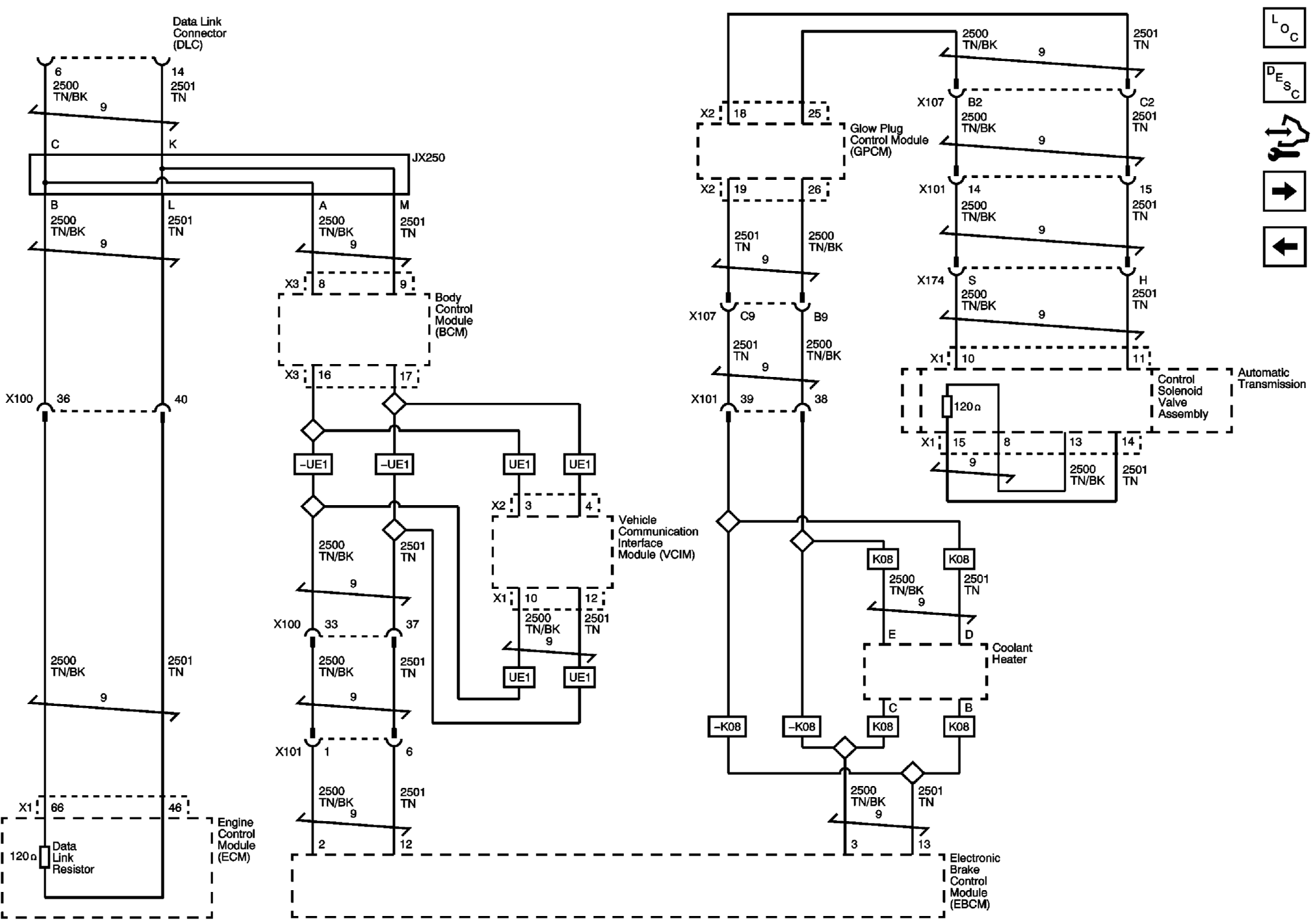

Fig 1: High Speed GMLAN (Diesel) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
