Air Cleaner Assembly Replacement

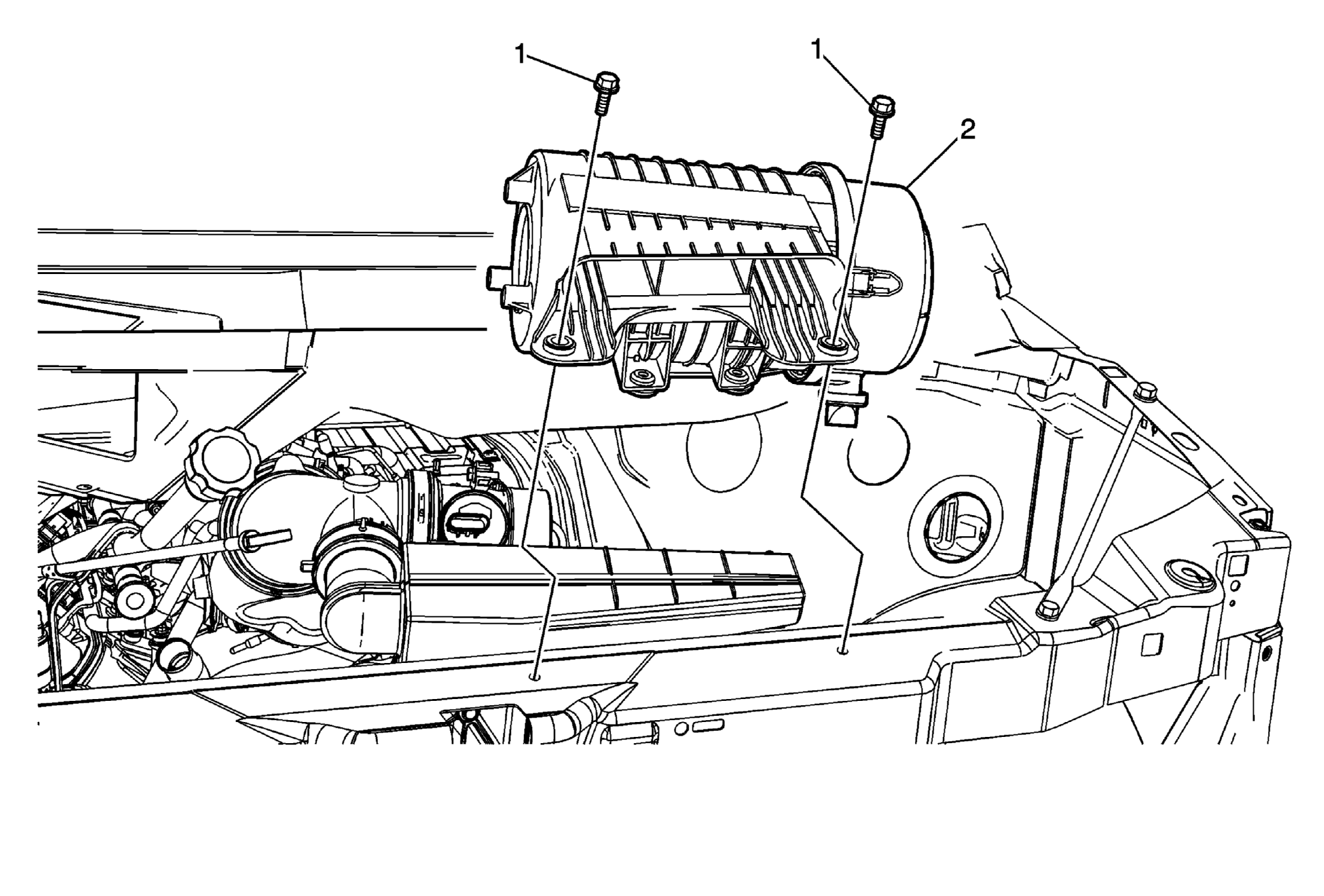

Fig 1: View Of Air Cleaner Assembly & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly Replacement

Callout	Component Name
Preliminary Procedure  Remove the mass airflow sensor bolts. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement .
1	Air Cleaner Assembly Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Air Cleaner Assembly Procedure  Pull up to disconnect the grommets from the rubber studs.
