Chevy Express H1500, Van Cargo
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Data Communications System Wiring Schematics
›
High Speed GMLAN (Gas)
High Speed GMLAN (Gas)

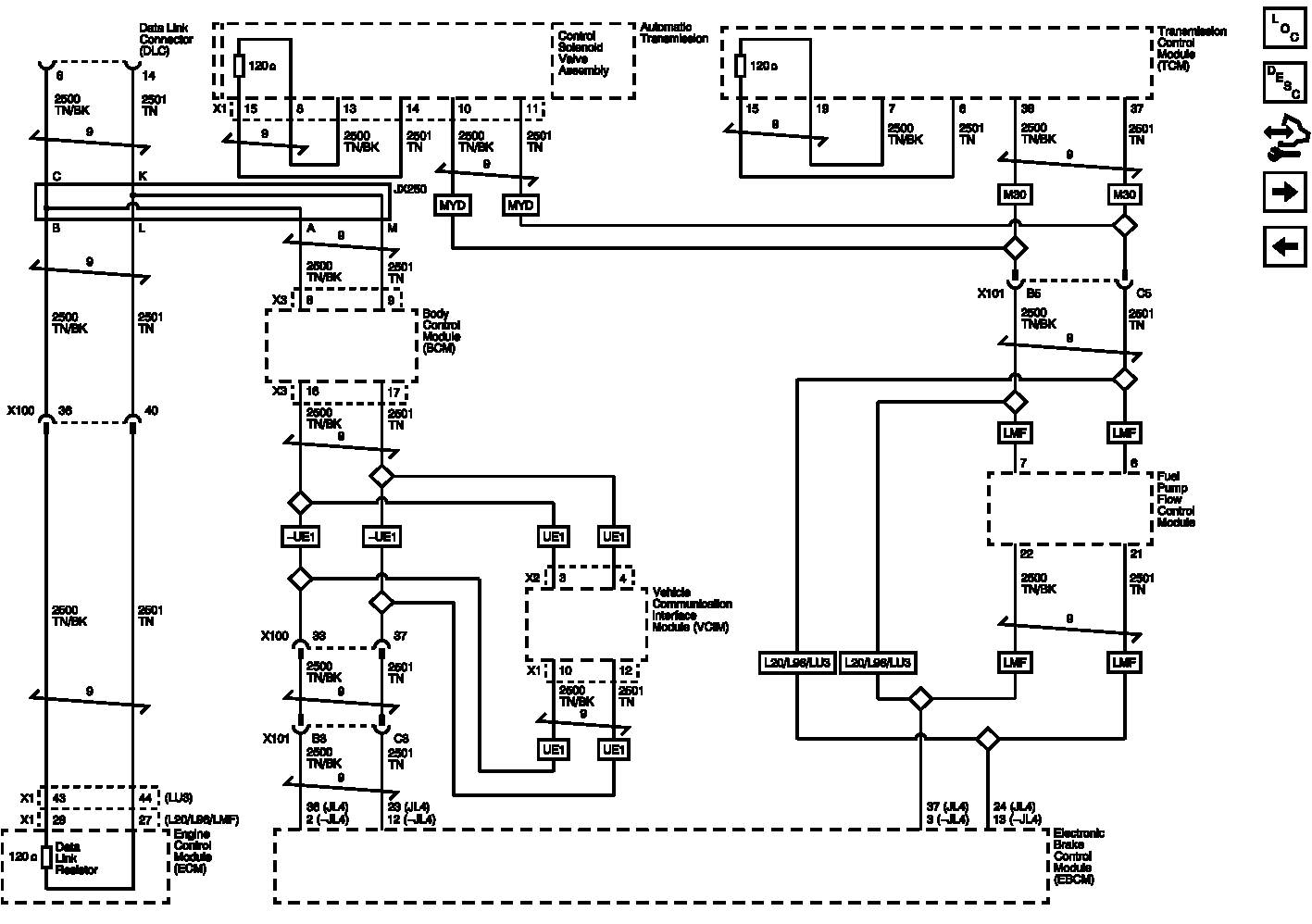

Fig 1: High Speed GMLAN (Gas) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
