Digital Radio Receiver Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2011 GMC Savana Special, 2011 GMC Savana Camper Special, 2011 GMC Savana, 2011 Chevrolet RV Cutaway, and 2011 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

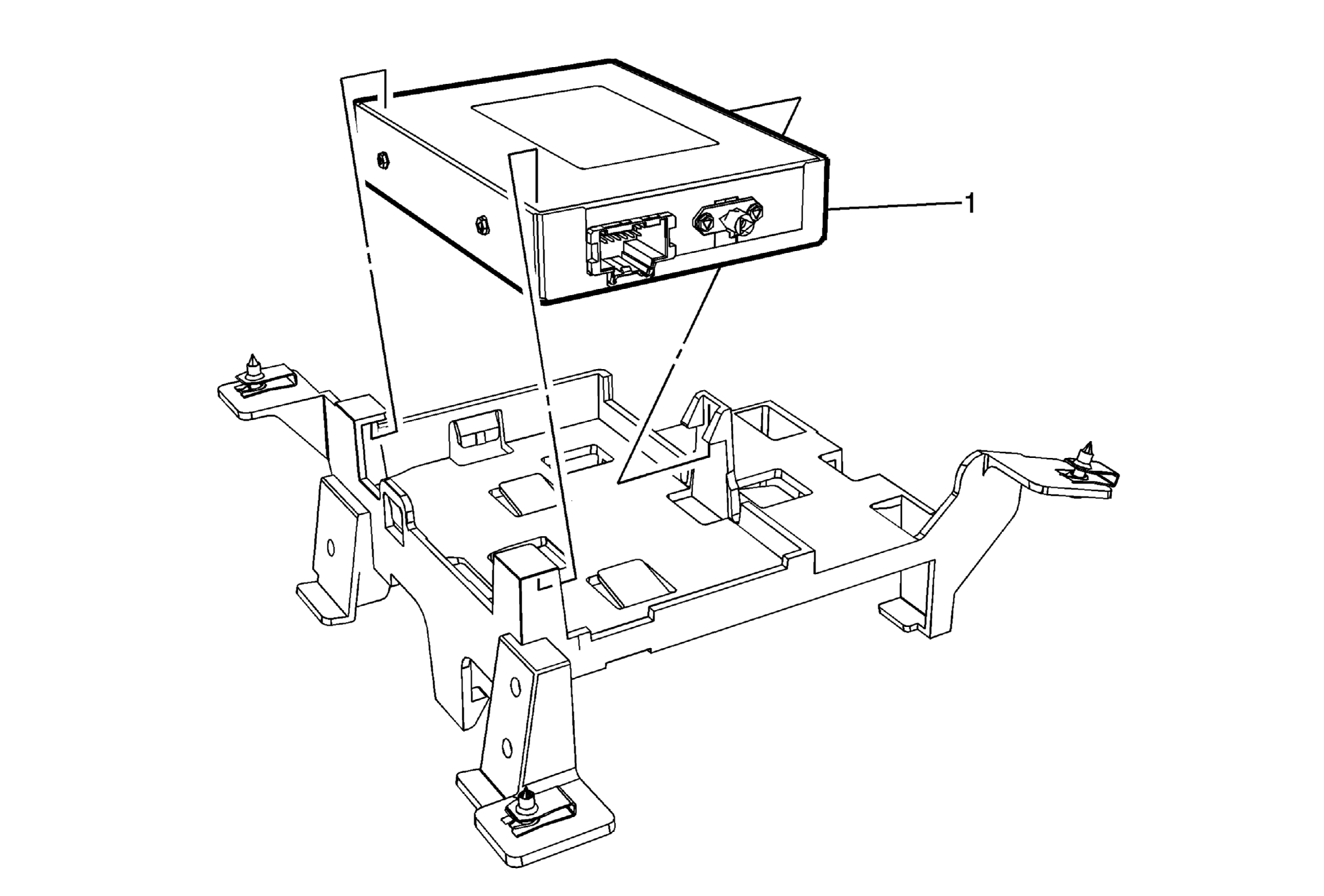

Fig 1: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .
1	Digital Radio Receiver Procedure Disconnect the electrical connectors. Release receiver from three retaining tabs on bracket. For programming and set up, refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement .

Digital Radio Receiver

Procedure

Disconnect the electrical connectors.
Release receiver from three retaining tabs on bracket.
For programming and set up, refer to Control Module References .
