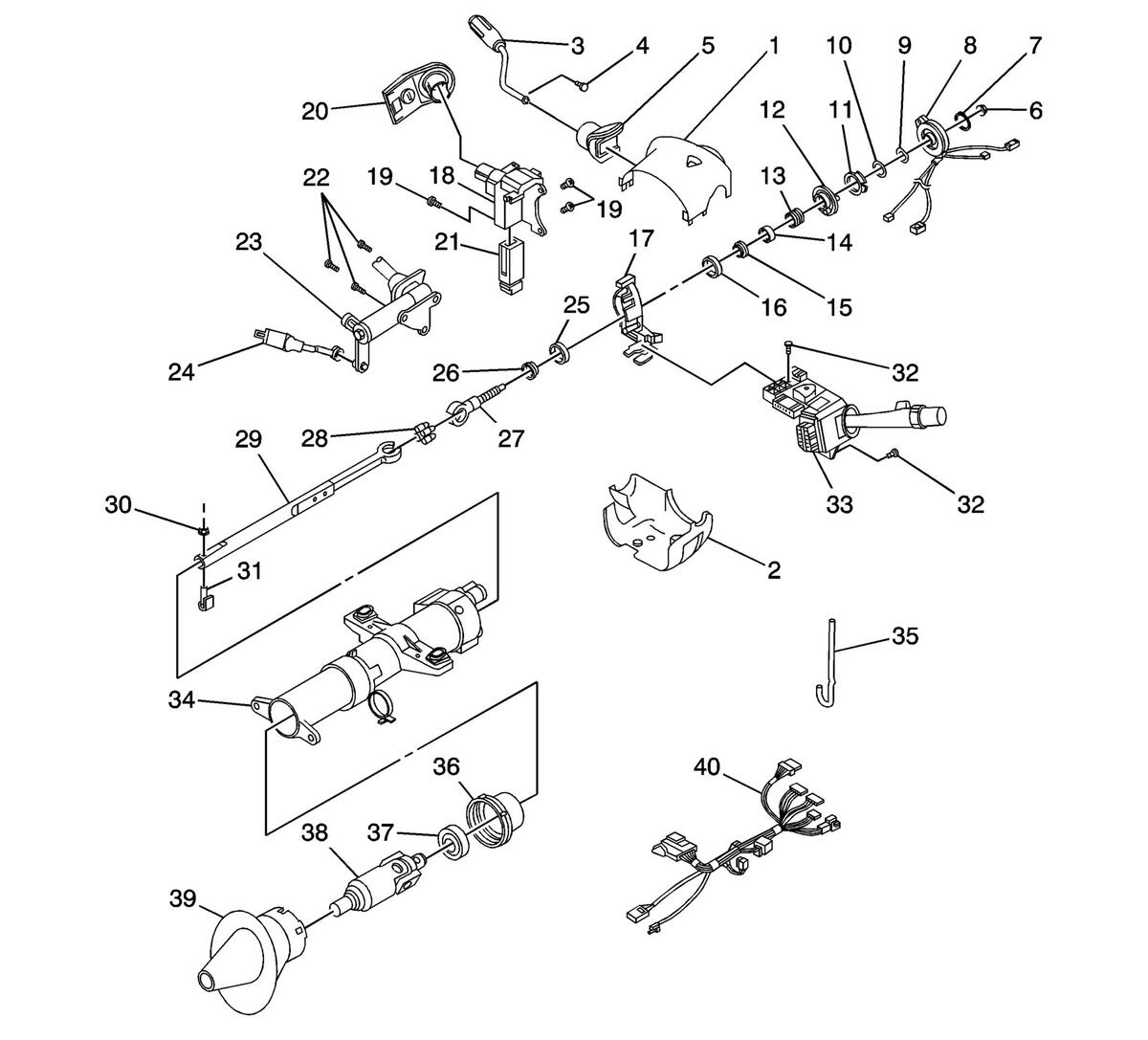

| 1 |
Upper Trim Cover |
| 2 |
Lower Trim Cover |
| 3 |
Shift Lever |
| 4 |
Shift Lever Screw |
| 5 |
Shift Lever Seal |
| 6 |
Flange Prevailing Torque Nut |
| 7 |
Retaining Ring |
| 8 |
Inflatable Restraint Steering Wheel Module Coil |
| 9 |
Wave Washer |
| 10 |
Bearing Retainer |
| 11 |
Cam Orientation Plate |
| 12 |
Turn Signal Cancel Cam Assembly |
| 13 |
Upper Bearing Spring |
| 14 |
Upper Bearing Inner Race Seat |
| 15 |
Inner Race |
| 16 |
Bearing Assembly |
| 17 |
Switch Mounting Bracket |
| 18 |
Ignition Lock Cylinder Case |
| 19 |
TORX Head Screws |
| 20 |
Coded Key Controller |
| 21 |
Ignition Switch Assembly |
| 22 |
TORX Head Screw |
| 23 |
Linear Shift Assembly |
| 24 |
Electrical Actuator |
| 25 |
Bearing Assembly |
| 26 |
Inner Race |
| 27 |
Race and Upper Shaft Assembly |
| 28 |
Centering Sphere |
| 29 |
Lower Steering Shaft Assembly |
| 30 |
Hex Head Nut |
| 31 |
Pinch Bolt |
| 32 |
Pan Head Tapping Screw |
| 33 |
Turn Signal and Multifunction Switch Assembly |
| 34 |
Steering Column Jacket Assembly |
| 35 |
Anti-rotation Pin |
| 36 |
Adapter and Bearing Assembly |
| 37 |
Bearing Assembly |
| 38 |
Intermediate Shaft |
| 39 |
Inner Boot Seal |
| 40 |
Wire Harness Assembly |
