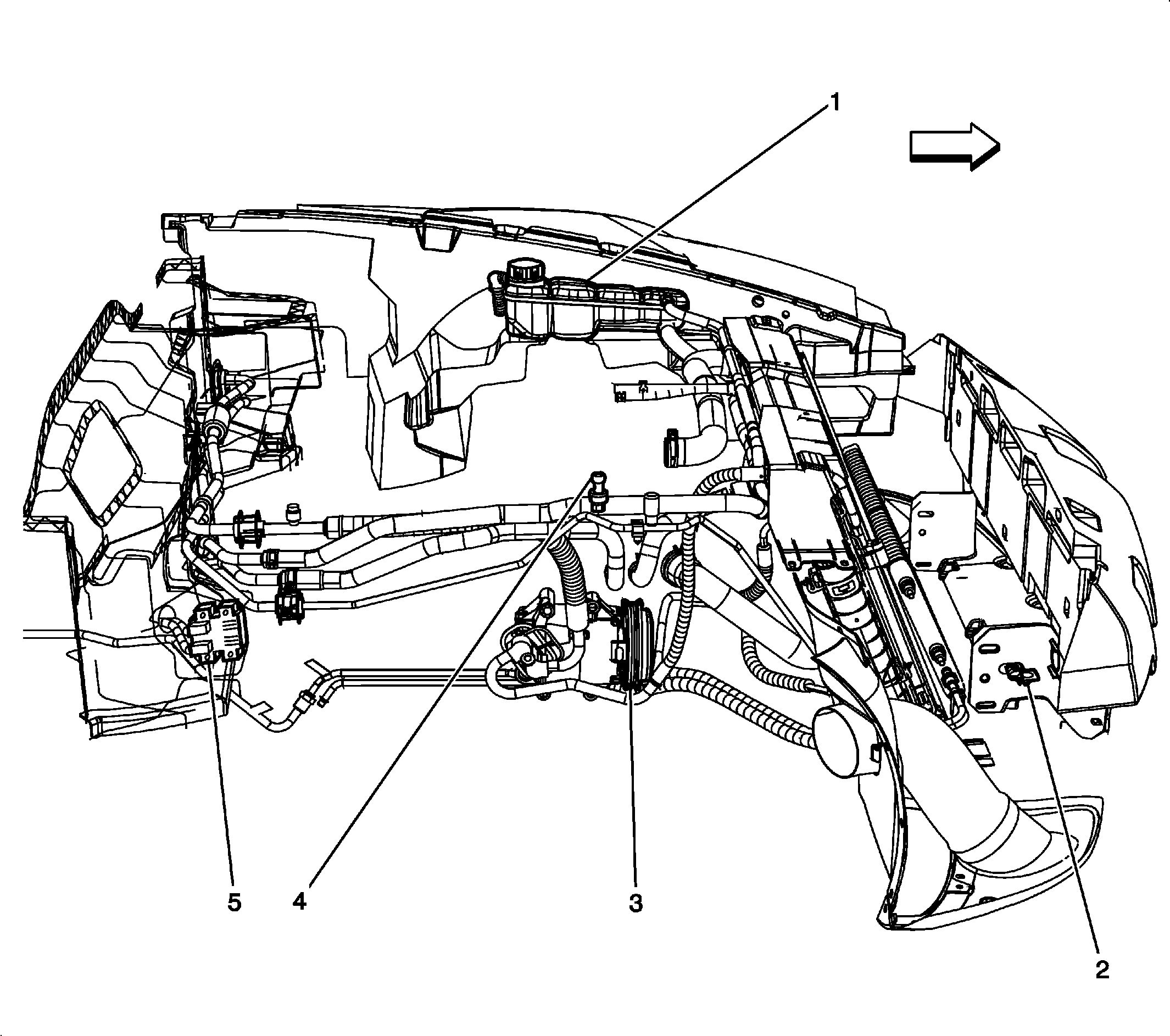

Engine Compartment HVAC Components
Engine Compartment HVAC Components
| Component Name |
Callout |
| Surge Tank |
1 |
| Ambient Air Temperature Sensor |
2 |
| A/C Compressor Clutch |
3 |
| A/C Refrigerant Pressure Sensor |
4 |
| Engine Control Module (ECM) |
5 |
Courtesy of GENERAL MOTORS COMPANY
