Floor Console Accessory Power Receptacle Replacement

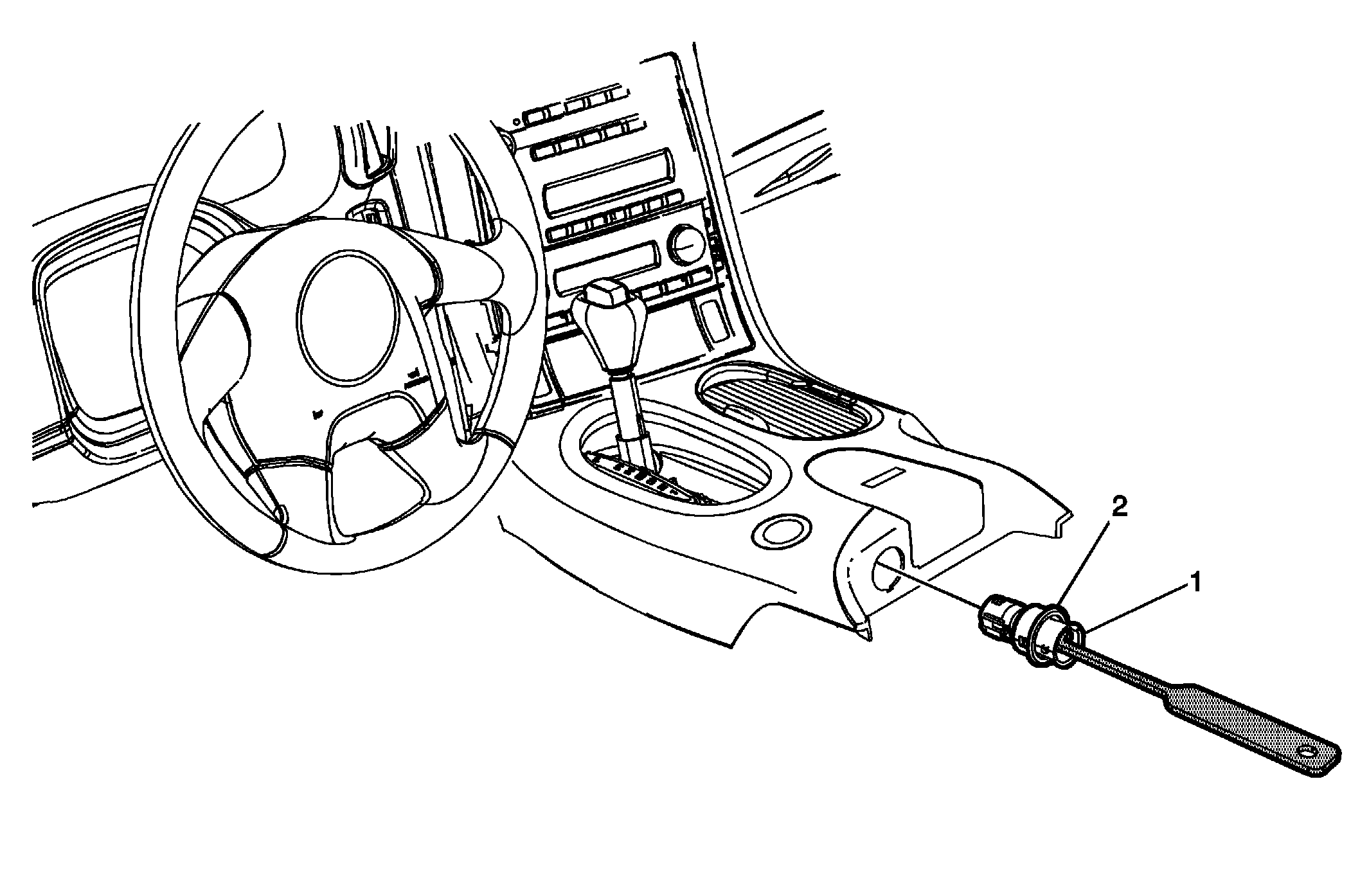

Fig 1: View Of Accessory Power Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Receptacle, Accessory Power Outlet TIP: Use J-42059 Cigar Lighter Socket Remover to remove the power outlet. Place one side of the "T" portion of the J-42059 Cigar Lighter Socket Remover into a tab window. Insert the opposite side of the "T" into the opposing tab window. Pull the receptacle and retainer straight out of the instrument panel (I/P) accessory trim panel. Disconnect the electrical connection.
2	Retainer, Accessory Power Outlet

Callout

Component Name

Receptacle, Accessory Power Outlet
TIP: Use J-42059 Cigar Lighter Socket Remover to remove the power outlet.

Place one side of the "T" portion of the J-42059 Cigar Lighter Socket Remover into a tab window.
Insert the opposite side of the "T" into the opposing tab window.
Pull the receptacle and retainer straight out of the instrument panel (I/P) accessory trim panel.
Disconnect the electrical connection.

Retainer, Accessory Power Outlet
