Brake System Components

Brake System Components

Component Name Callout
Brake Pressure Modulator Valve (BPMV) 1
Brake Fluid Level Switch 2
Electronic Brake Control Module (EBCM) 3
Steering Angle Sensor 4
Brake Pedal Position (BPP) Sensor 5
Yaw and Lateral Accelerometer Sensor 6
Park Brake Switch 7

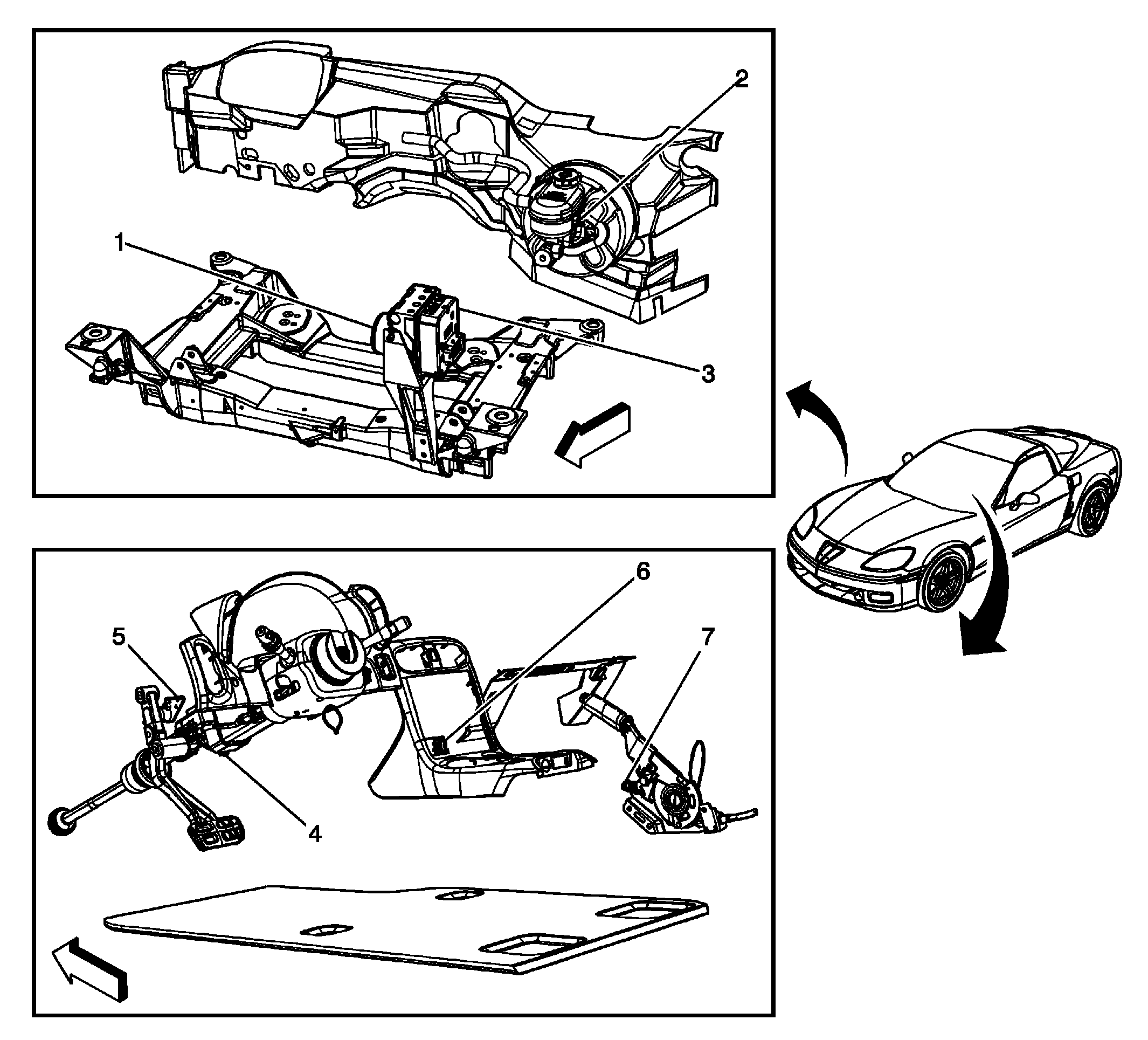

Fig 1: Brake System Components
GM2201418Courtesy of GENERAL MOTORS COMPANY
