Ground Views: G202

G202

Component Name Callout
J217 (LS3) 1
Relay Block- I/P 2
G202 3
J234 4
J202 5
JX208 6

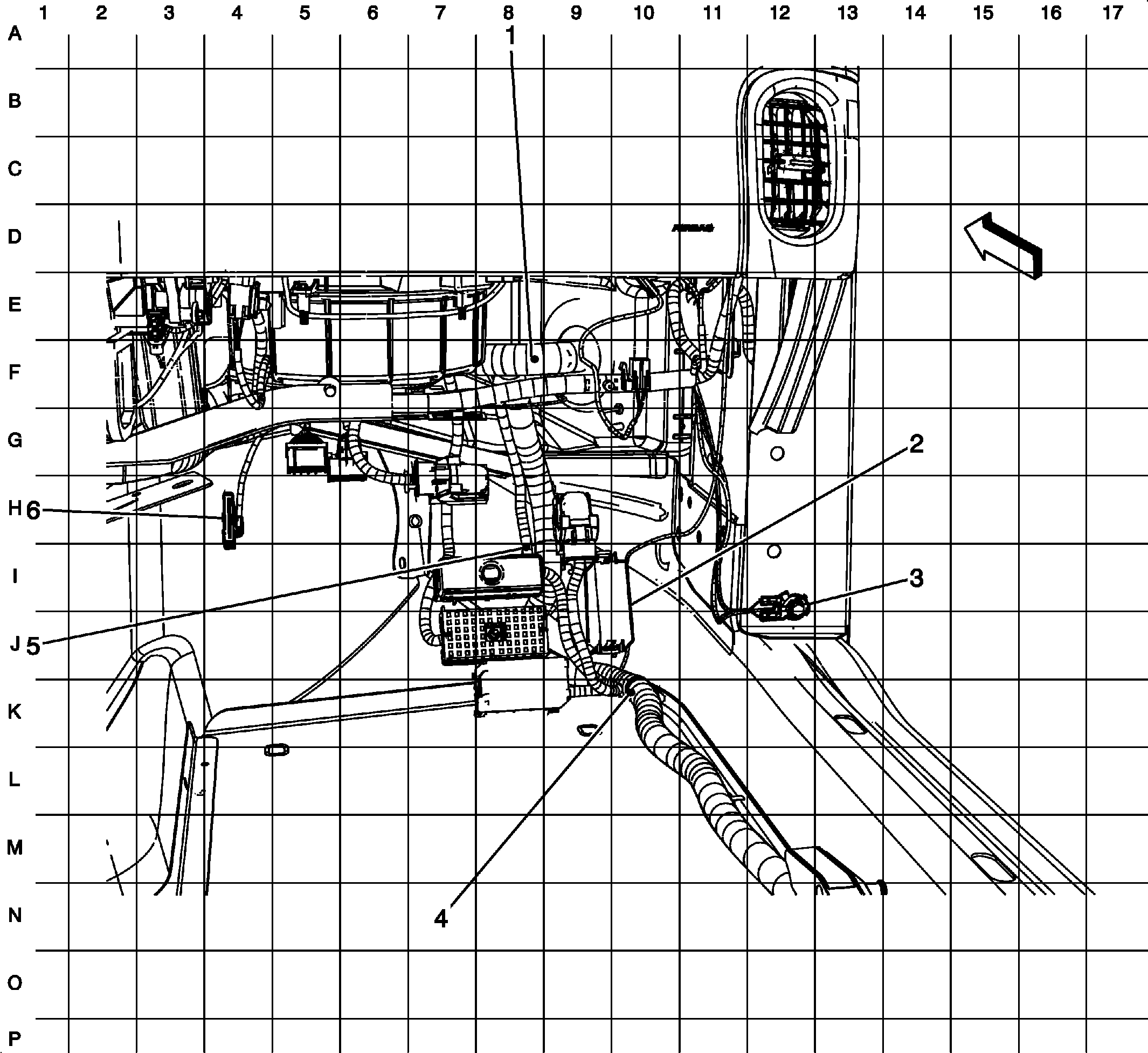

Fig 1: G202
GM1863933Courtesy of GENERAL MOTORS COMPANY
