Air Intake Duct Components

Air Intake Duct Components

Component Name Callout
Air Intake Duct 1
Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor 2
Intake Manifold 3

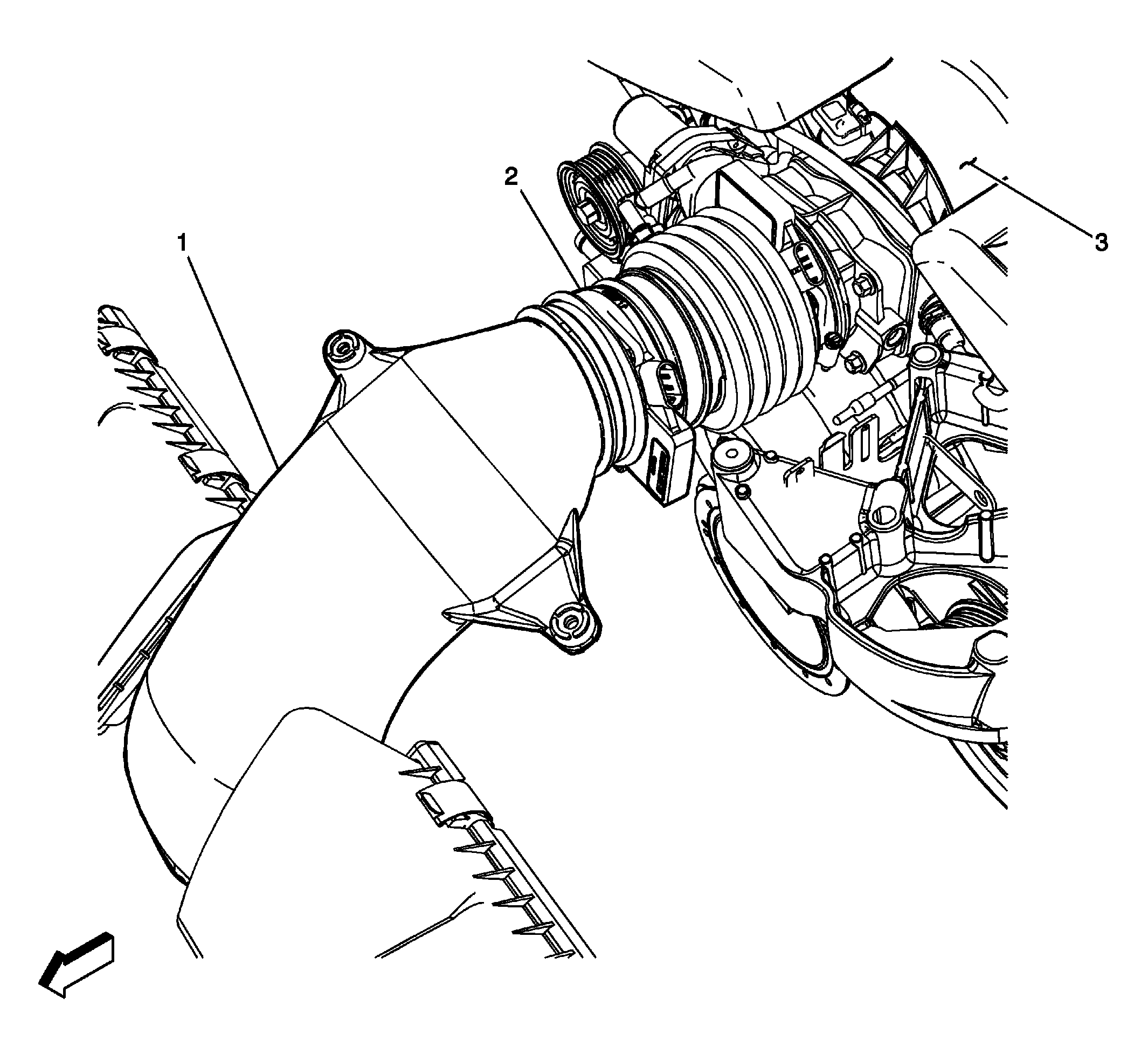

Fig 1: Air Intake Duct Components
GM1863931Courtesy of GENERAL MOTORS COMPANY
