Driver Information Display Switch Replacement

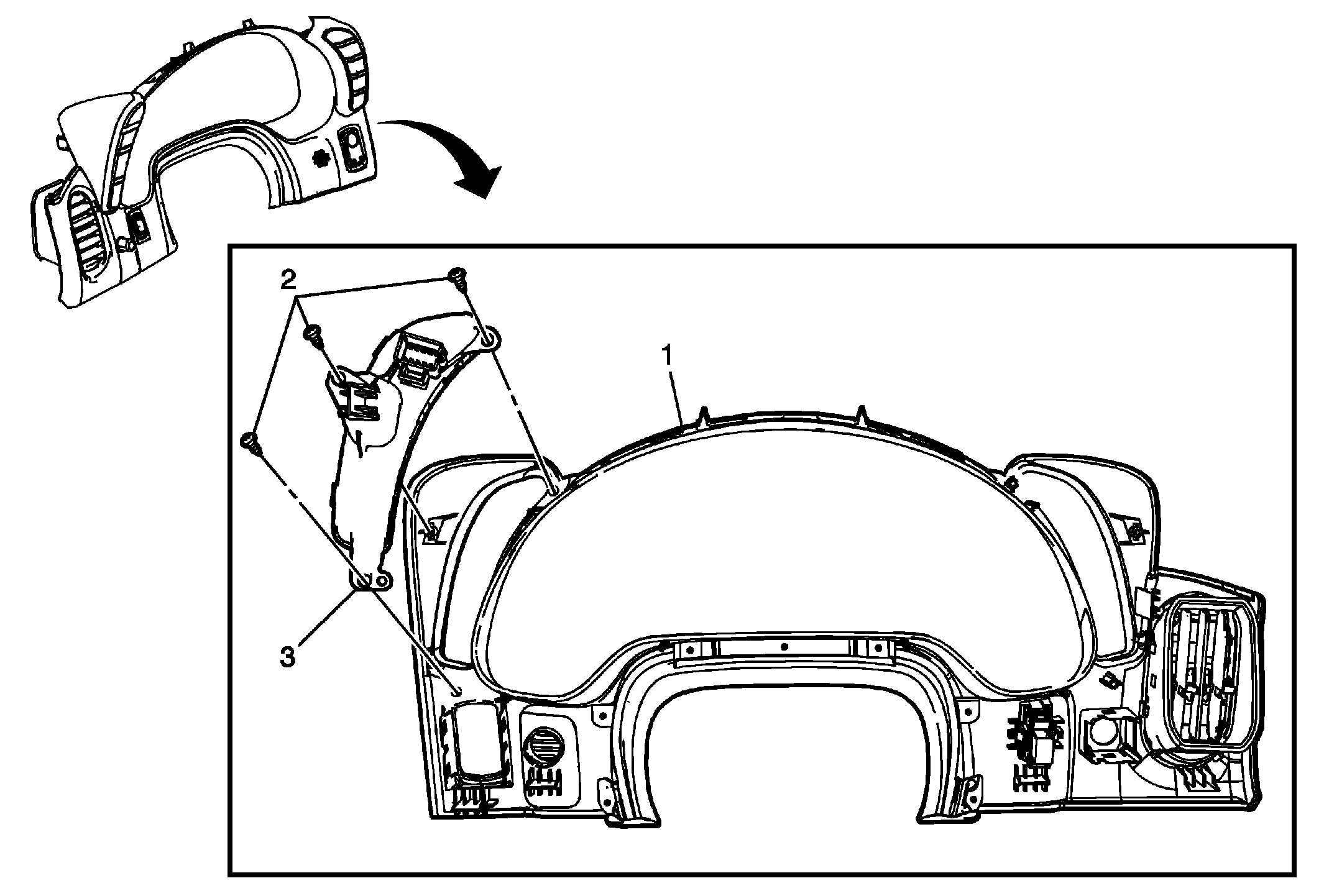

Fig 1: View Of Driver Information Display Components

Courtesy of GENERAL MOTORS COMPANY

Driver Information Display Switch Replacement

Callout	Component Name
1	Instrument Panel Cluster Trim Plate Refer to Instrument Cluster Trim Panel Replacement .
2	Driver Information Center Switch Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
3	Driver Information Center Switch
