Exhaust Tail Pipe Flow Valve Control Module Replacement

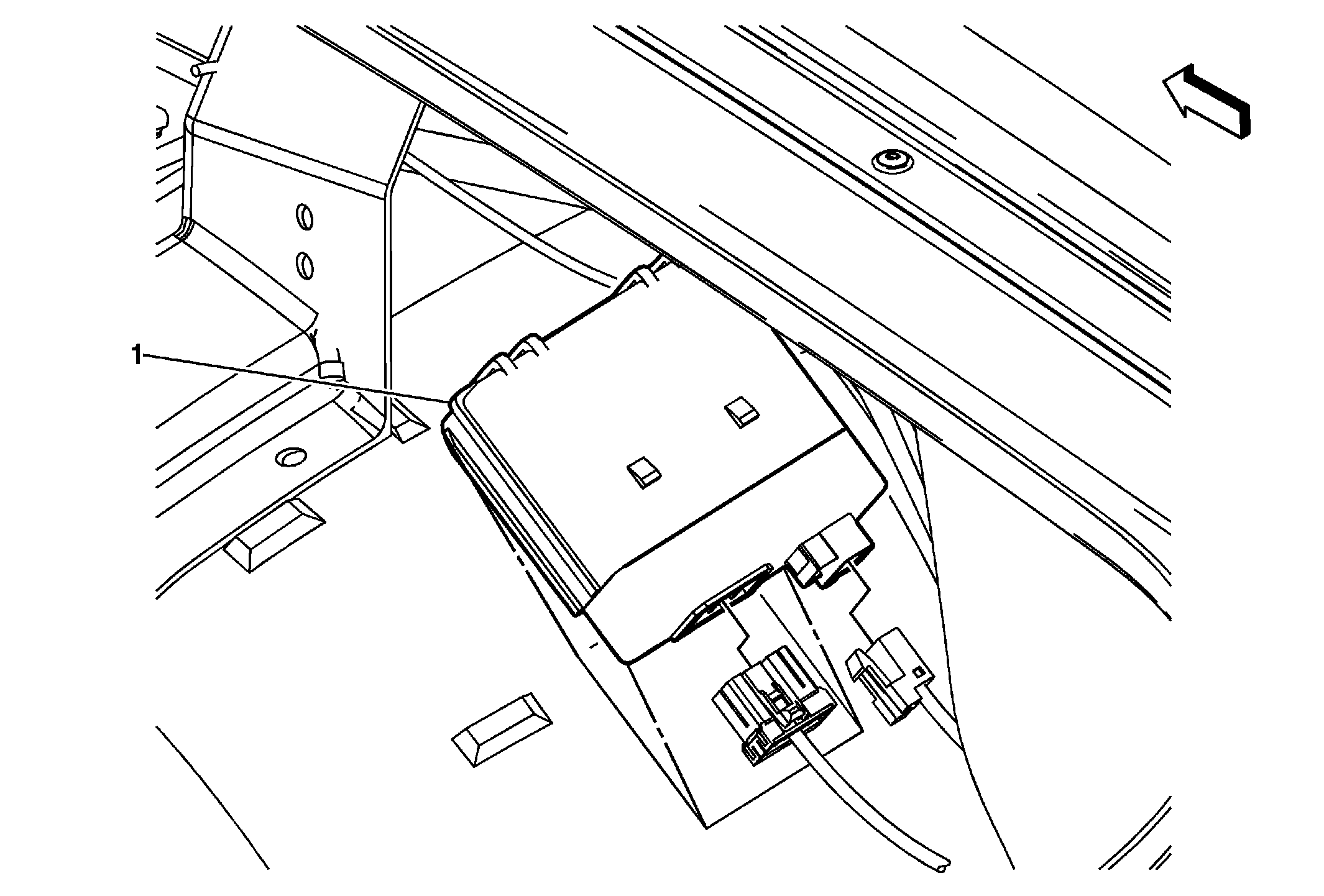

Fig 1: Identifying Exhaust Tail Pipe Flow Valve Control Module
GM2003347Courtesy of GENERAL MOTORS COMPANY
Exhaust Tail Pipe Flow Valve Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the carpet from the right wheel opening.
1 Exhaust Tail Pipe Flow Valve Control Module

Procedure

  1. Disconnect the module harness connector.
  2. Remove the exhaust tail pipe flow valve control module.
