Power, Ground, and Class 2 Wiring Schematics

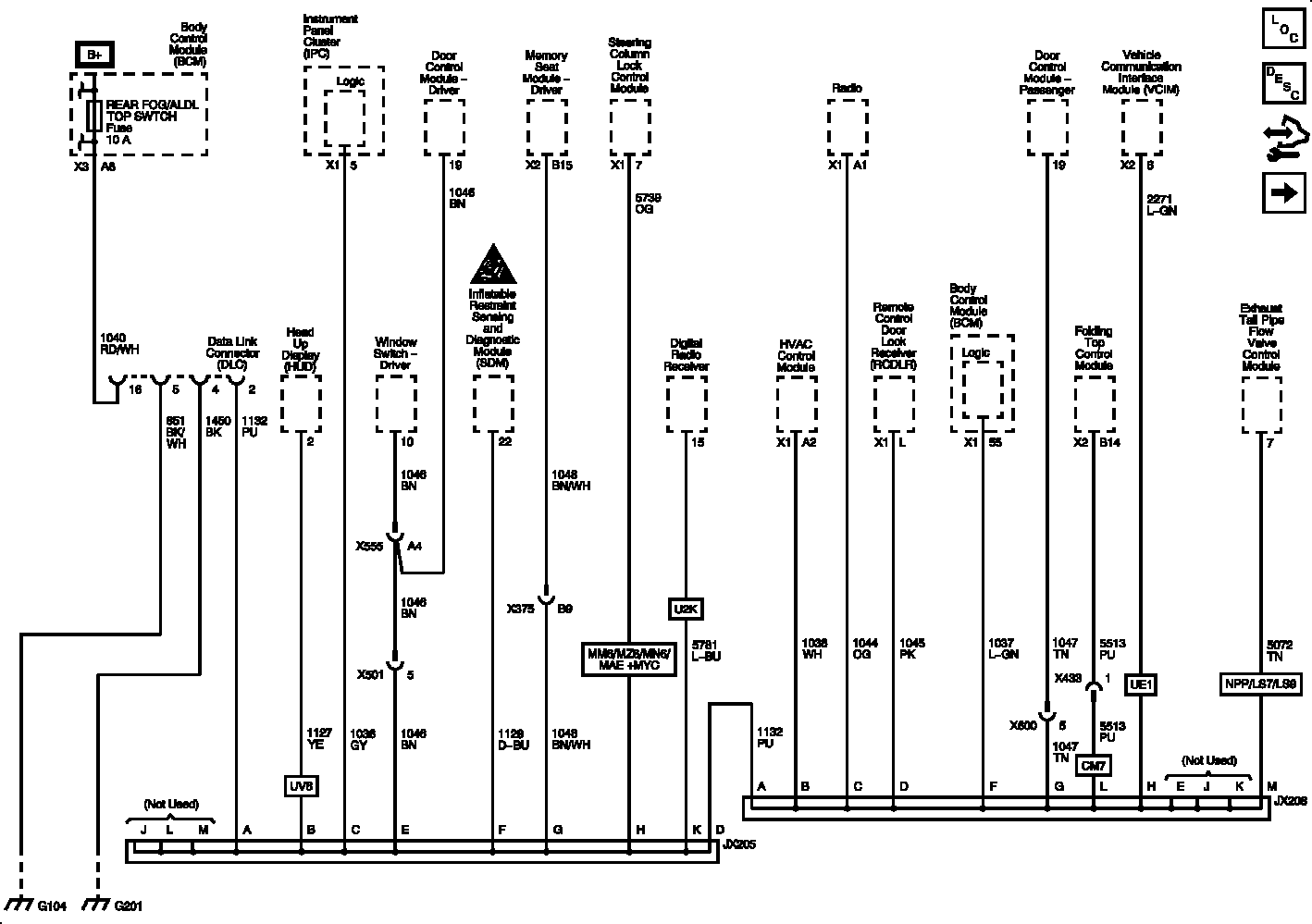

Fig 1: Power, Ground, and Class 2 Wiring Schematics
GM2565825Courtesy of GENERAL MOTORS COMPANY
