Keyless And Passive Entry (ATH)

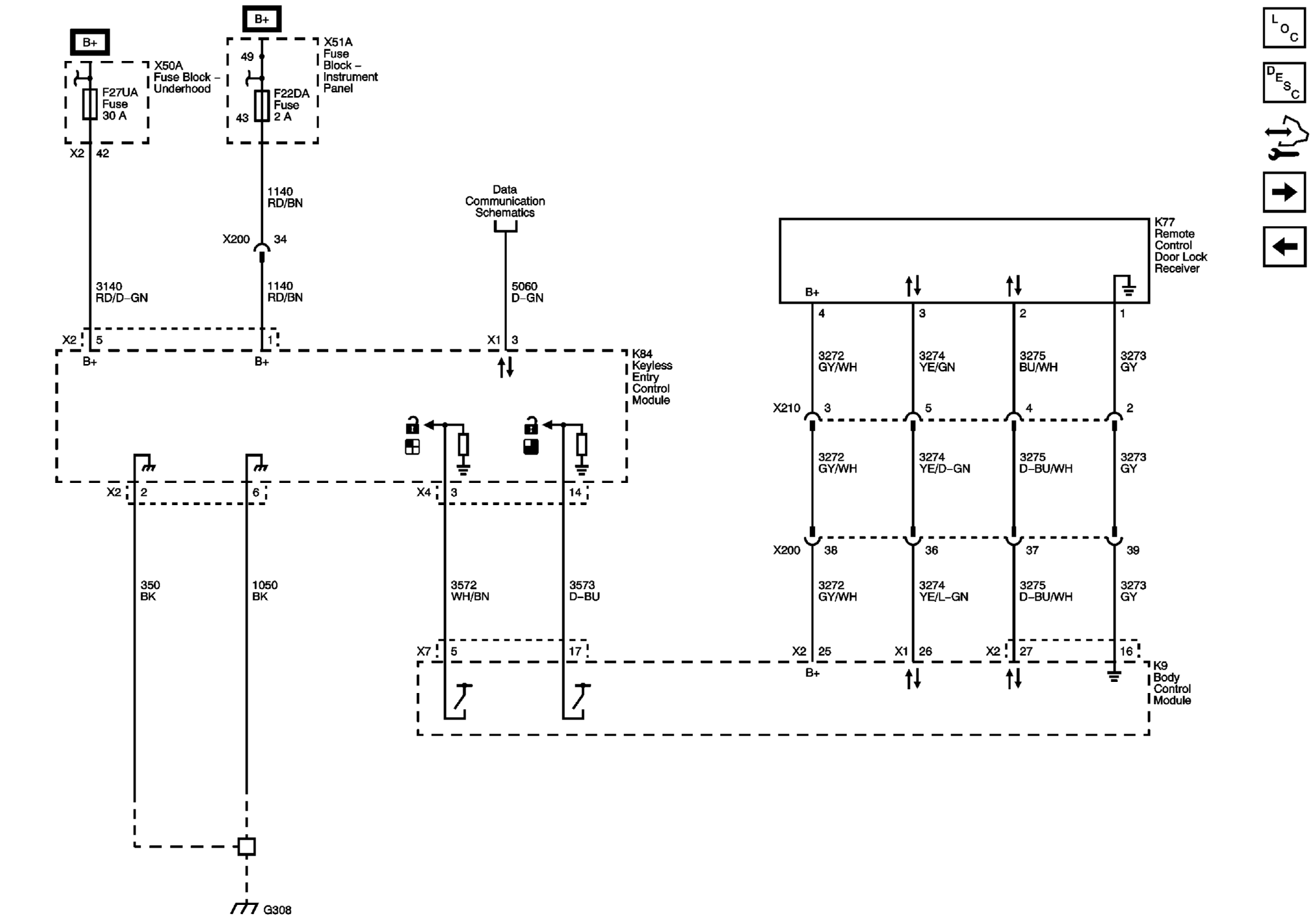

Fig 1: Keyless And Passive Entry (ATH) Wiring Schematic
GM2760029Courtesy of GENERAL MOTORS COMPANY
