Intake Air Pressure and Temperature Sensor Replacement

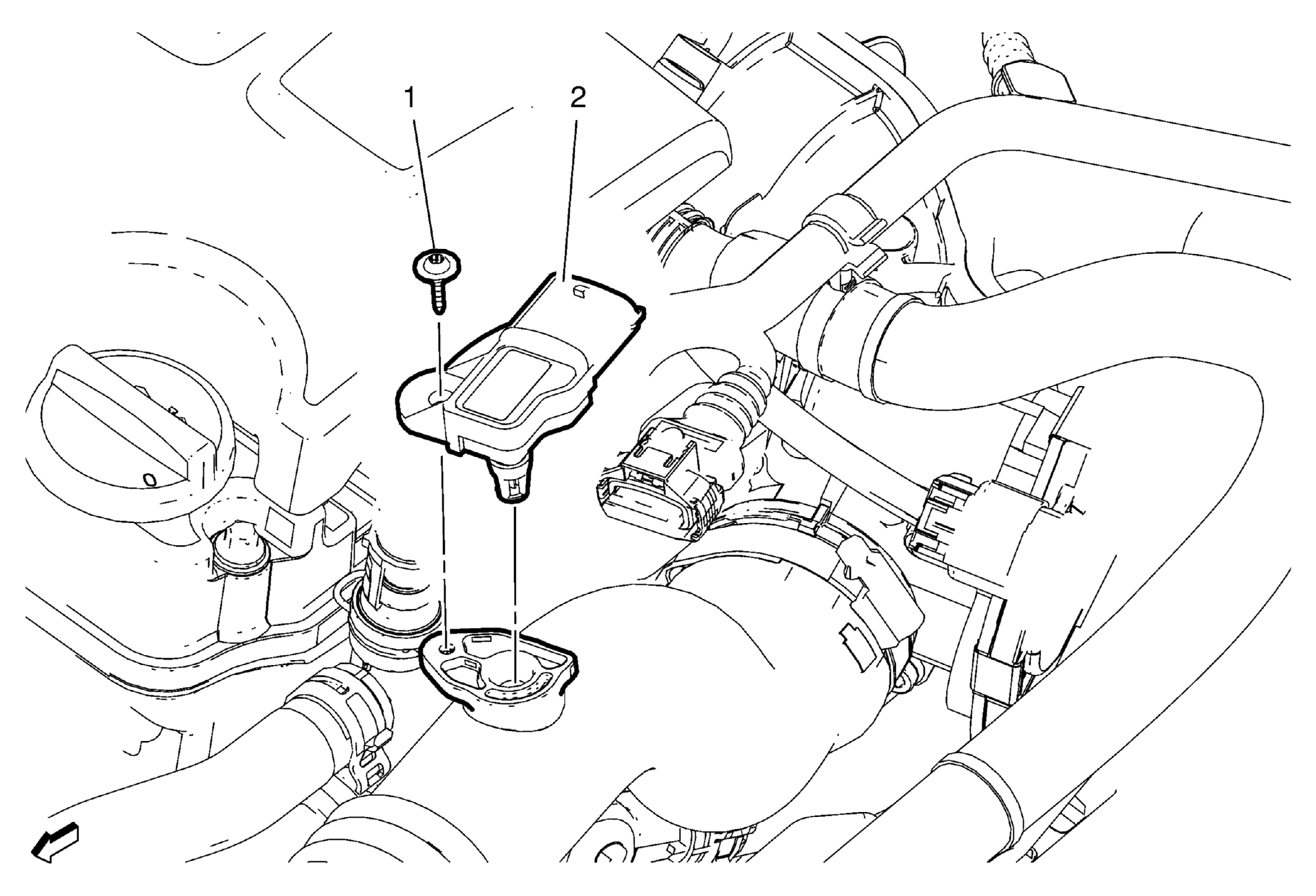

Fig 1: Intake Air Pressure And Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Intake Air Pressure and Temperature Sensor Replacement

Callout	Component Name
1	Intake Air Temperature and Pressure Sensor Bolt CAUTION: Refer to Fastener Caution .
2	Intake Air Temperature and Pressure Sensor Procedure  Disconnect the electrical connector.
