Removal Procedure

  1. Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
    2. Fig 1: Battery Fuse Box Cover
    GM2577153Courtesy of GENERAL MOTORS COMPANY
  2. Unlock the retaining tab (1) on the battery fuse box cover.
  3. Use a suitable screwdriver (2) to unlock the clip (4) through the window (3).
    4. Fig 2: Fuse Box Cover, Battery Cable And Nut
    GM2027594Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Pull the battery fuse box housing. DO NOT pull the flap.

  4. Open the battery fuse box cover (1).
  5. Remove the positive battery cable to starter nut (2).
  6. Remove the positive battery cable to starter (3) from the battery.
  7. Remove the positive battery cable. Refer to Battery Positive Cable Replacement .

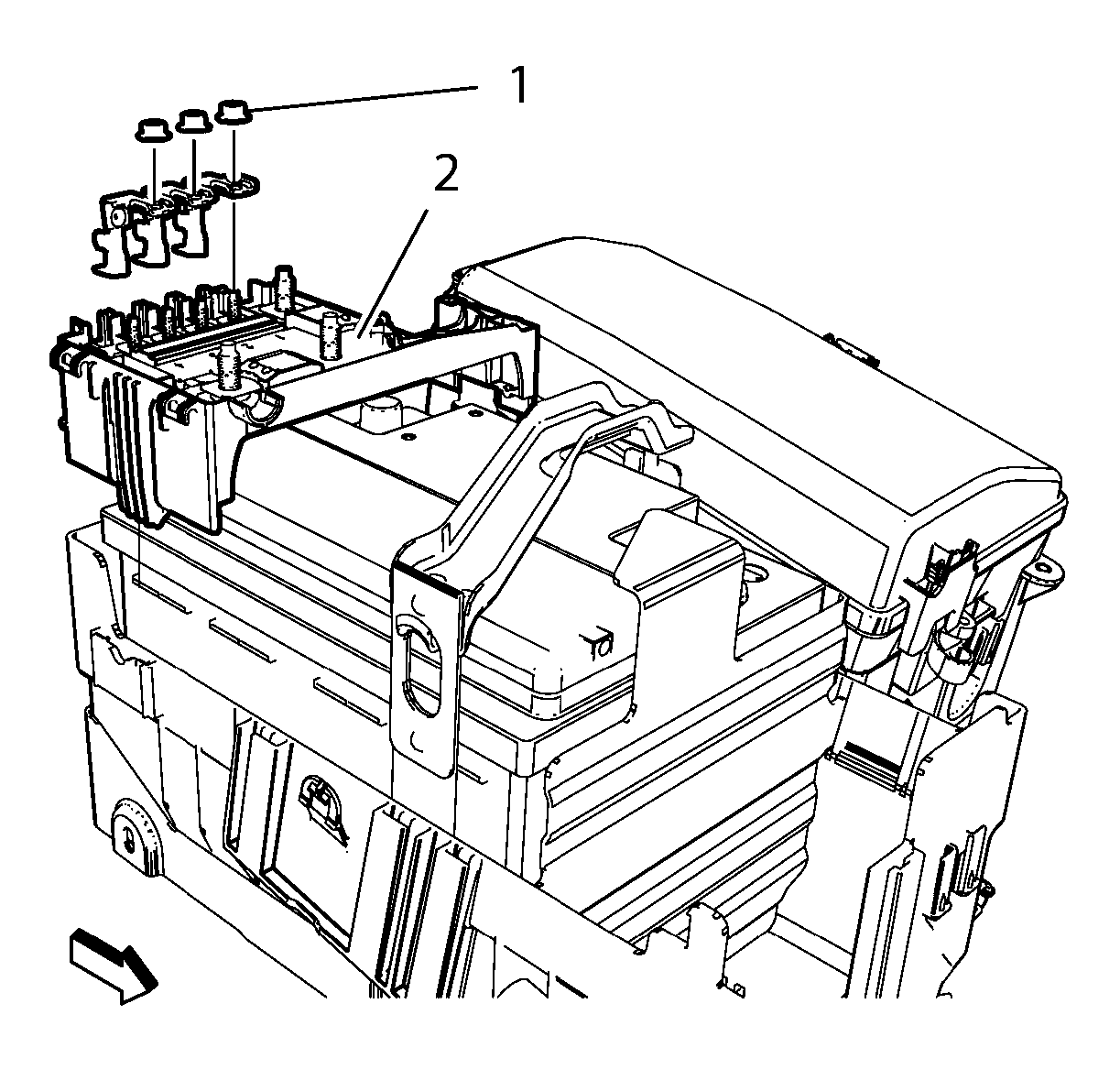

    8. Fig 3: Fuse Block, Body Wiring Harness And Nuts
    GM2027692Courtesy of GENERAL MOTORS COMPANY
  8. Remove 2 body wiring harness nuts (1) and body wiring harness.
  9. Remove fuse block (2).
