Outside Rearview Mirror Replacement

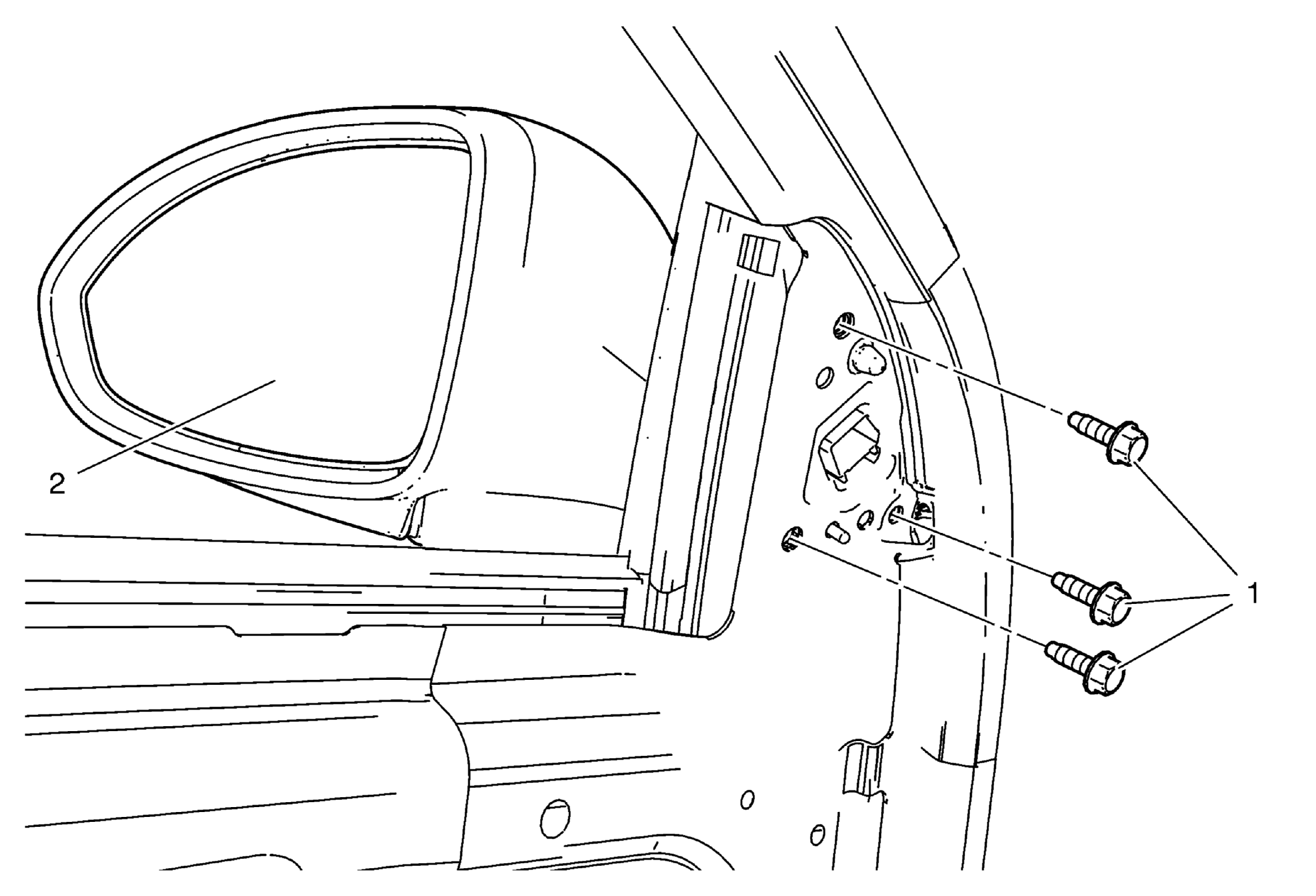

Fig 1: Outside Rearview Mirror And Mount Plate Bolts

Courtesy of GENERAL MOTORS COMPANY

Outside Rearview Mirror Replacement

Callout	Component Name
Preliminary Procedures  Remove the front side door upper trim cover. Refer to Front Side Door Upper Trim Cover Replacement .
1	Outside Rearview Mirror Mount Plate Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Outside Rearview Mirror Procedure  Disconnect electrical connector.
