Front Seat Heater Control Module Replacement
Front Seat Heater Control Module Replacement

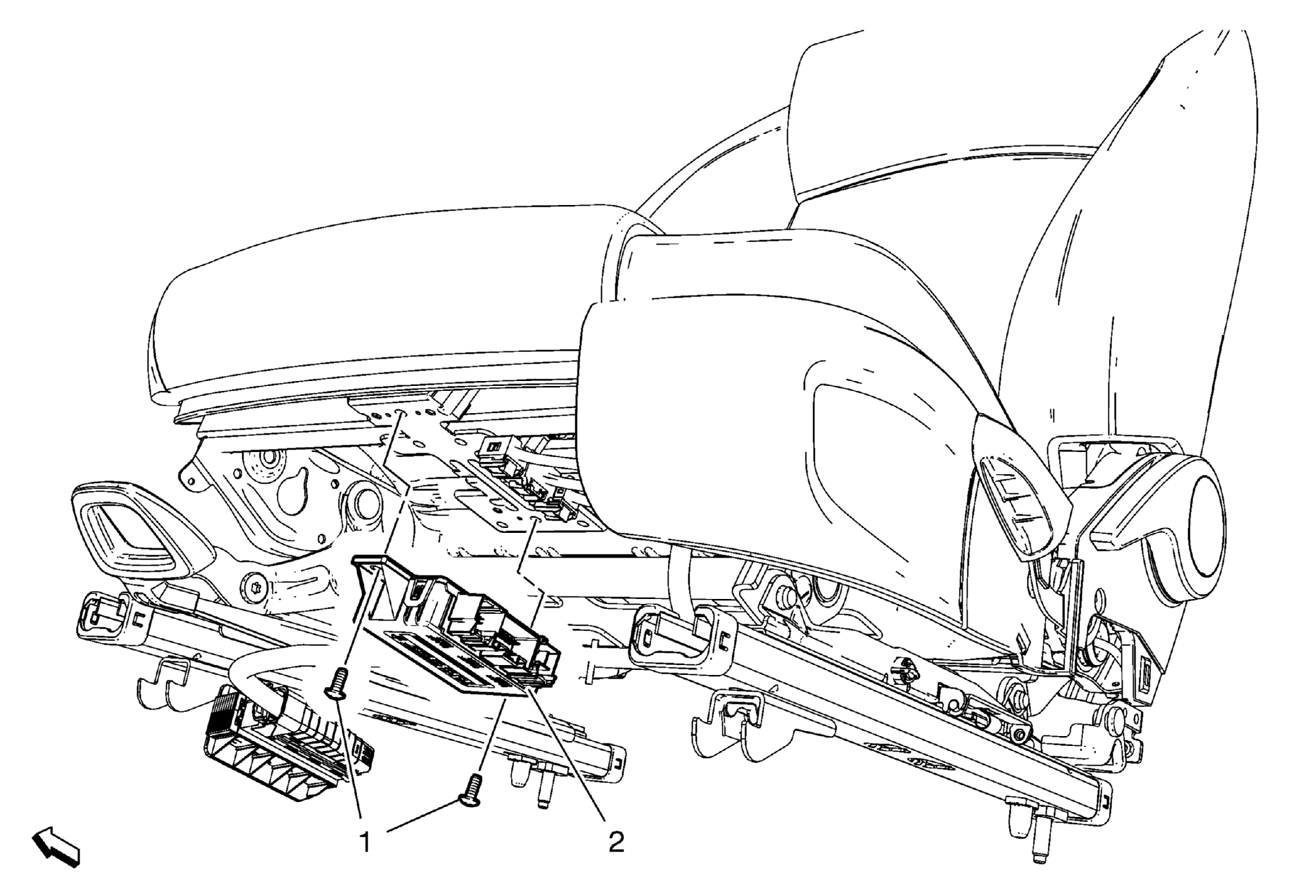

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation . |
|
| 1 | Front Seat Heater Control Module Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Seat Heater Control Module Procedure Disconnect the electrical connector. |
