Installation Procedure

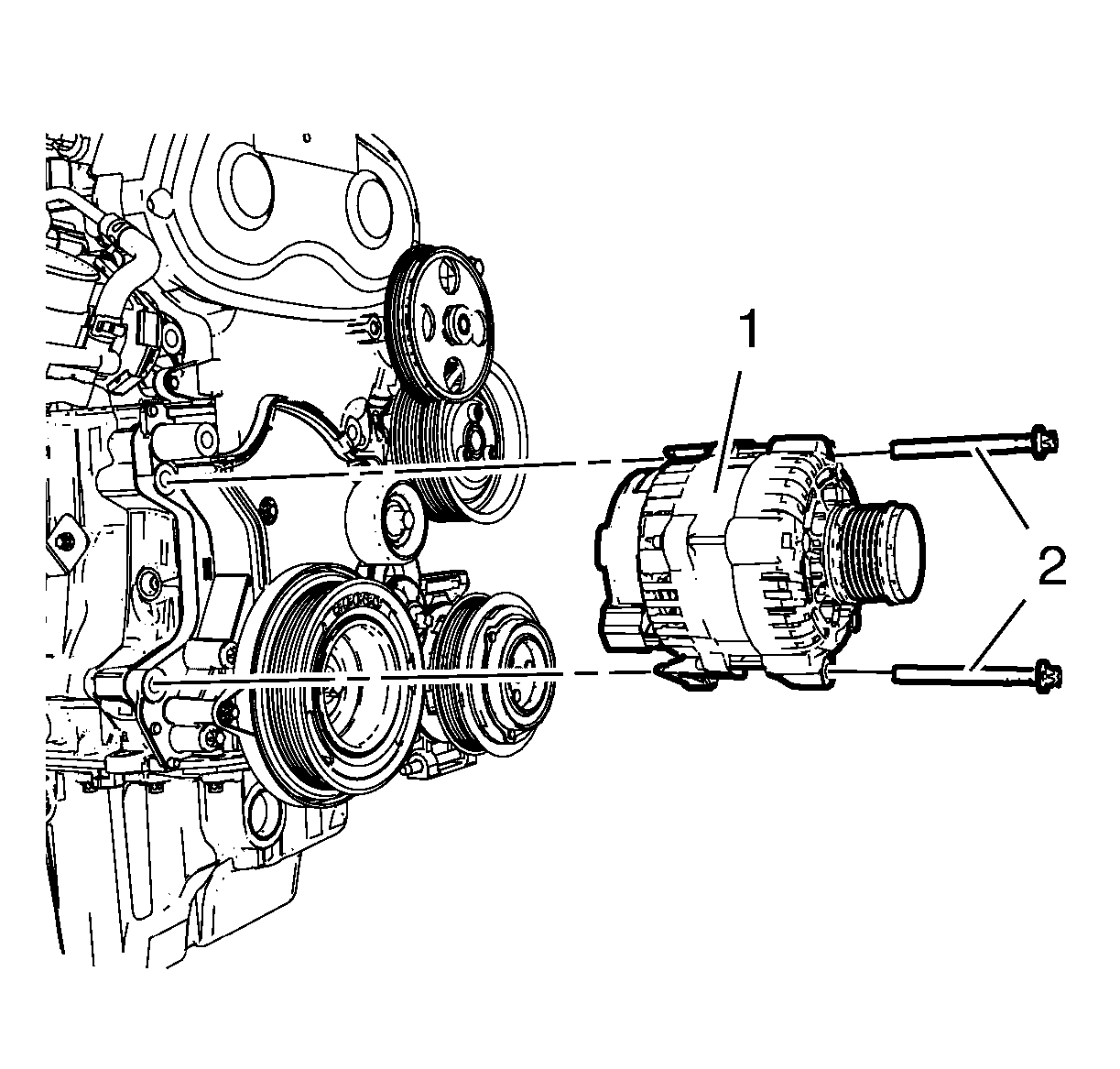

    Fig 1: Generator And Bolts
    GM2027790Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 generator bolts (2) and tighten to 35 N.m (26 lb ft).

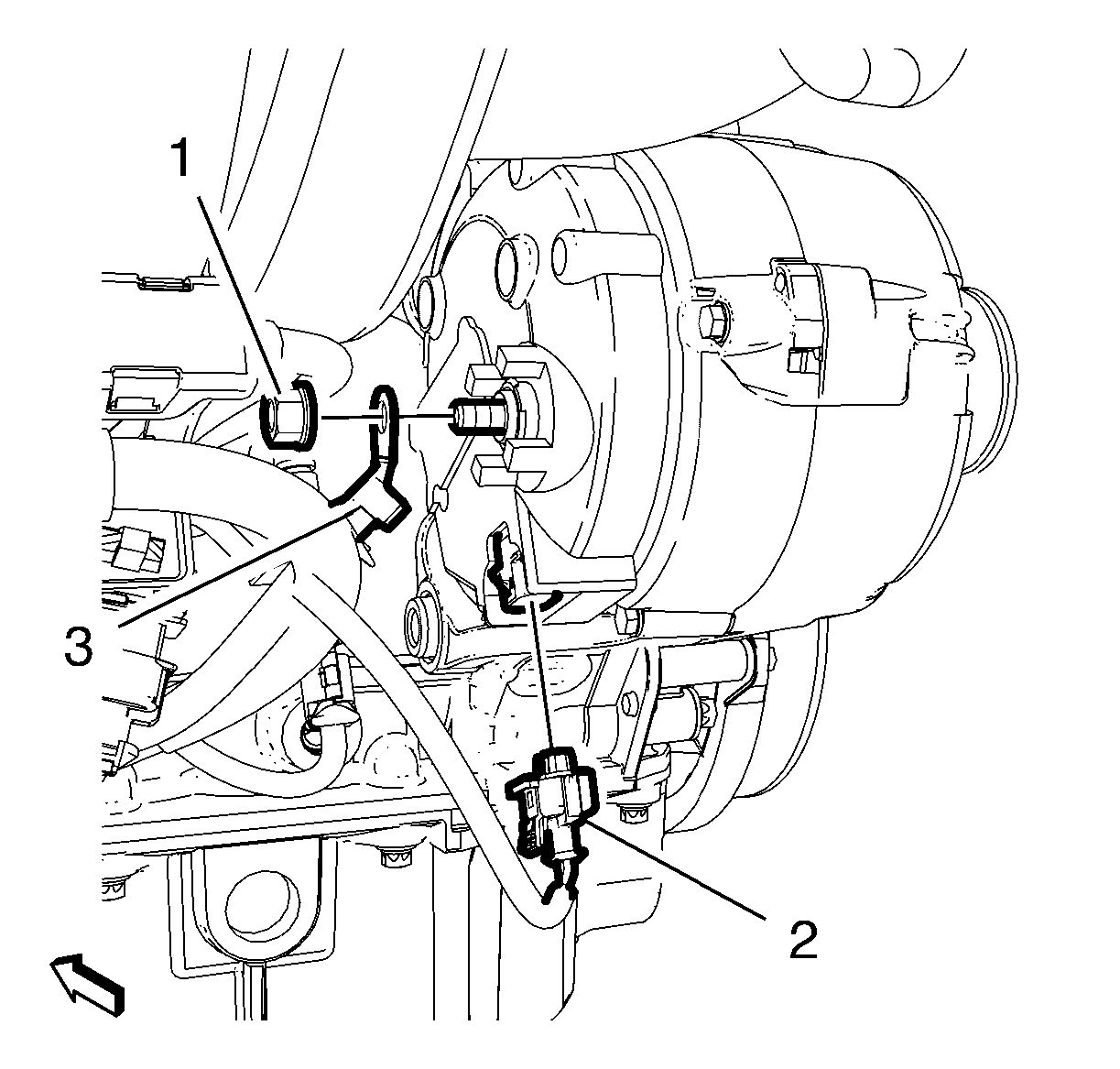

    3. Fig 2: Generator Positive Cable Nut And Nut
    GM2757769Courtesy of GENERAL MOTORS COMPANY
  3. If equipped, install the generator positive cable (3) and the generator positive cable nut (1). Tighten the nut to 12.5 N.m (111 lb in).
  4. If equipped, connect the generator wiring harness plug (2).

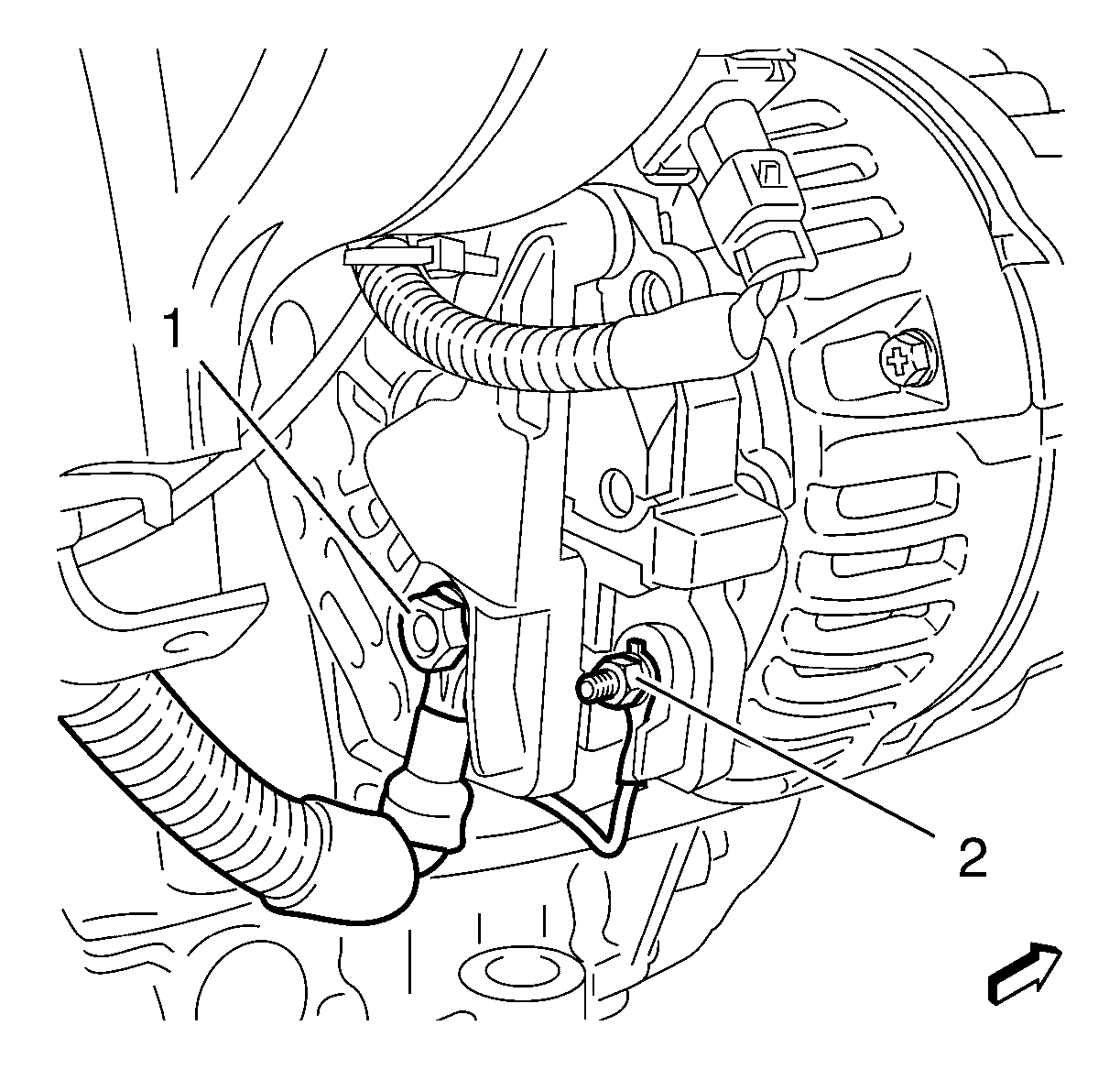

    5. Fig 3: Generator Positive Cable Nut And Generator Wiring Harness Nut
    GM2027791Courtesy of GENERAL MOTORS COMPANY
  5. Install the generator wiring harness nut and tighten to 12.5 N.m (111 lb in).
  6. Install the generator positive cable nut (1) and tighten to 7 N.m (62 lb in).
  7. Install the generator and air conditioning compressor belt. Refer to Drive Belt Replacement .
  8. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  9. Close the hood.
