Front Of Engine Compartment Components

Component Name	Callout
G24 Windshield Washer Pump	1
B55 Hood Ajar Switch	2
B59R Front Impact Sensor - Right	3
B1 A/C Refrigerant Pressure Sensor	4
B34B Engine Coolant Temperature Sensor 2	5
G10 Cooling Fan Motor	6

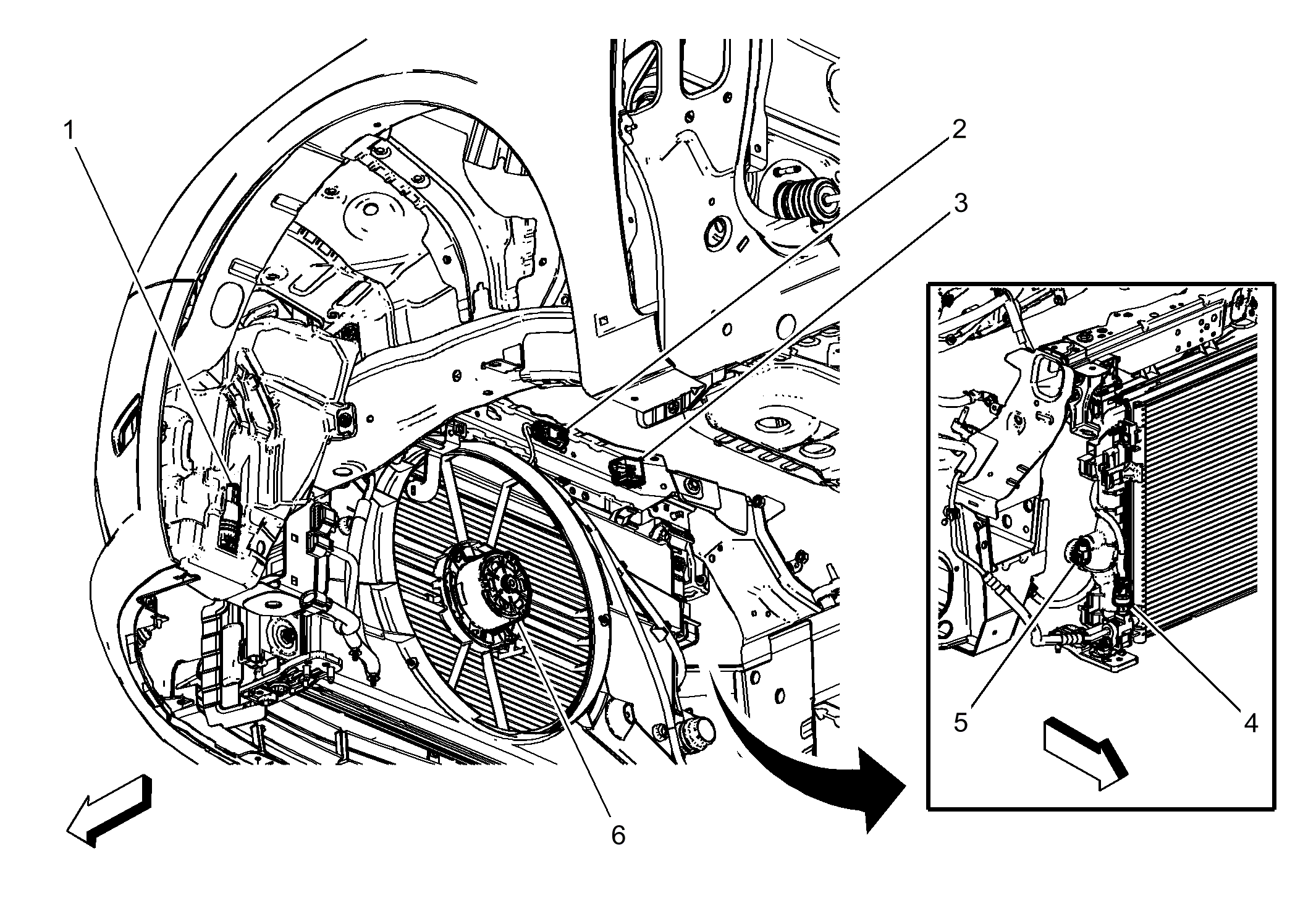

Fig 1: Front Of Engine Compartment

Courtesy of GENERAL MOTORS COMPANY
