Interior HVAC Components

Component Name	Callout
M37 Mode Door Actuator	1
M6 Air Temperature Door Actuator	2
M46 Air Recirculation Door Actuator	3
B39 A/C Evaporator Temperature Sensor	4
K8 Blower Motor Control Module	5
M8 Blower Motor	6

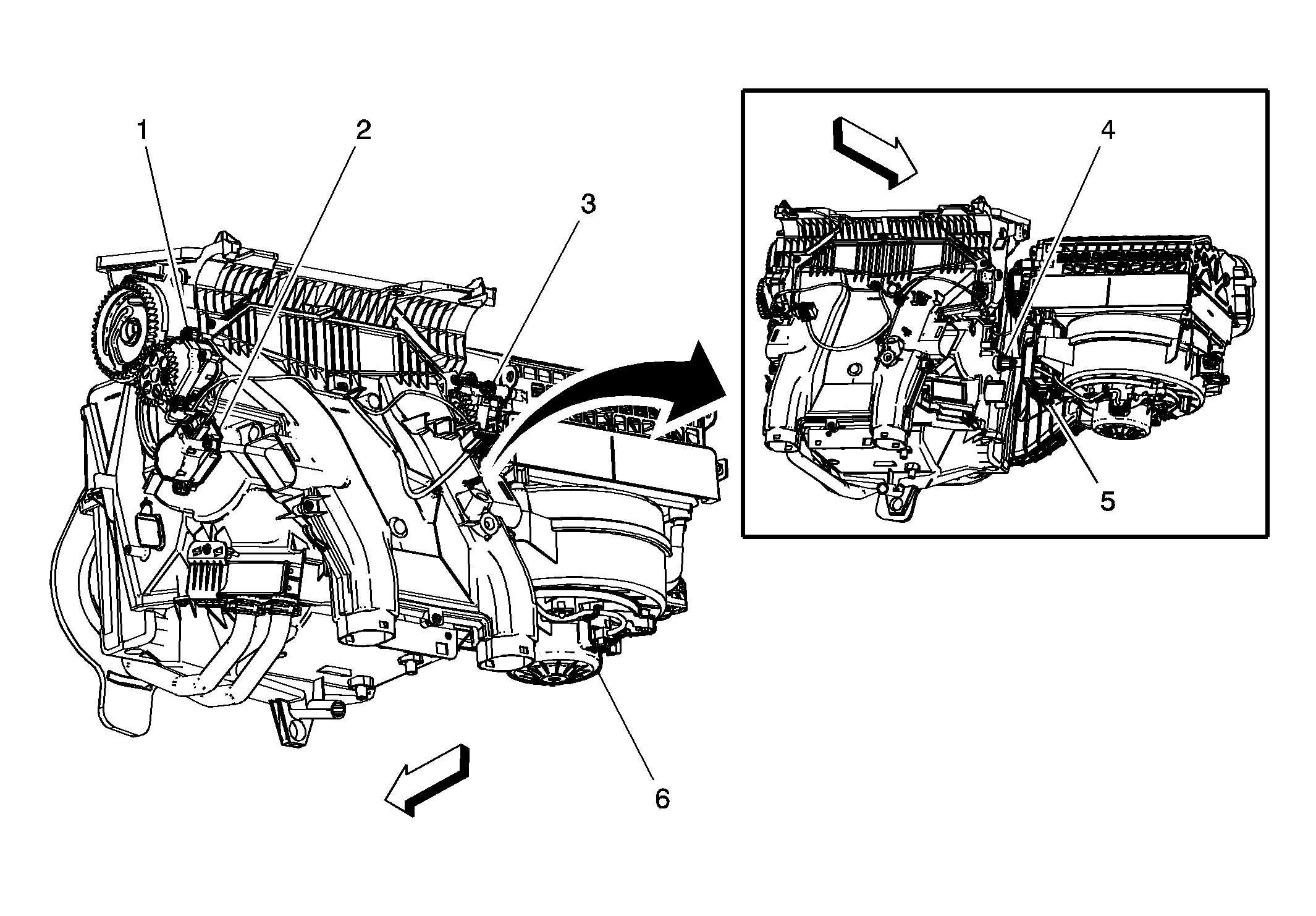

Fig 1: Interior HVAC Components

Courtesy of GENERAL MOTORS COMPANY
