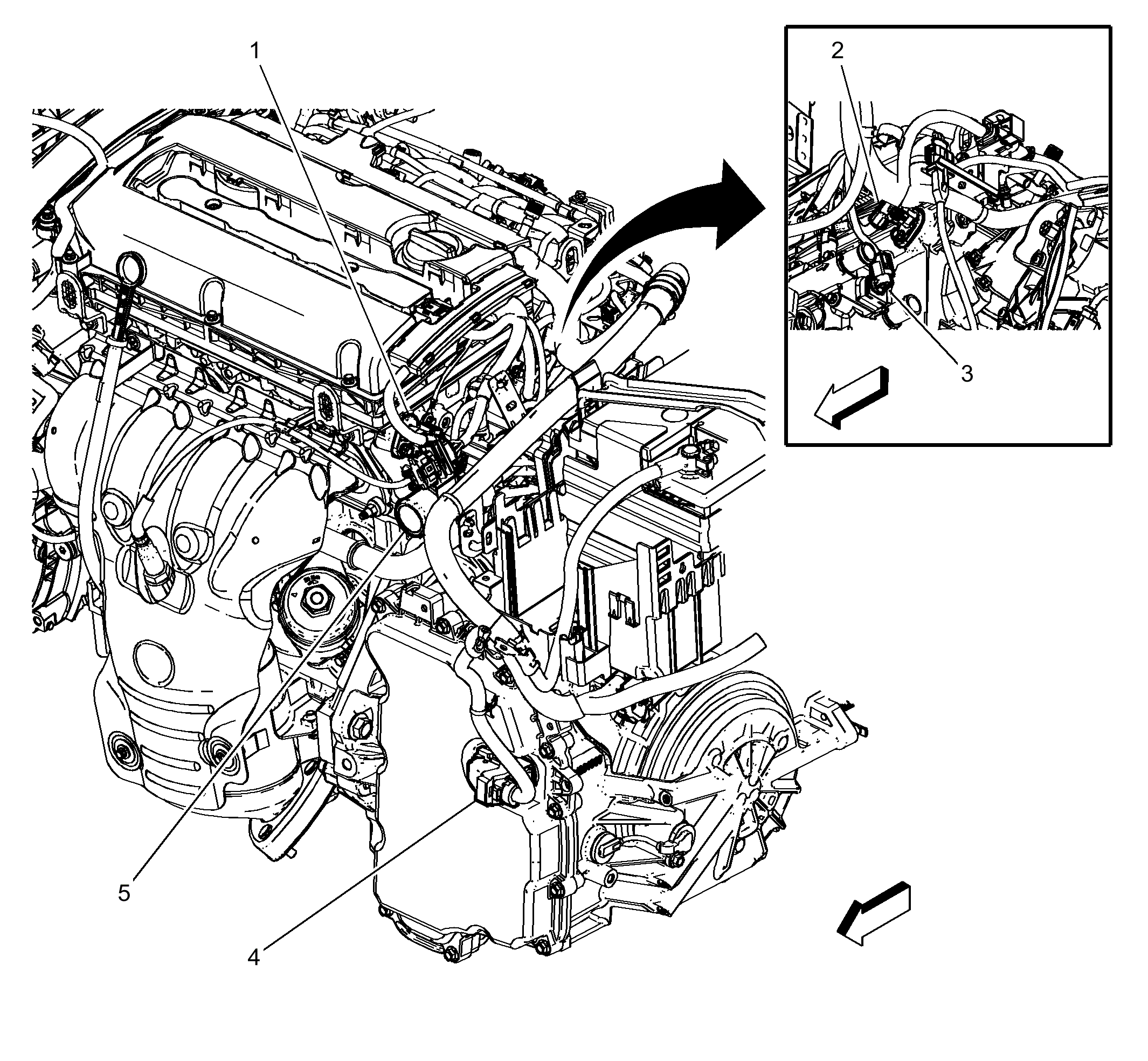

Left Front Of The Engine Components (LUW)
Left Front Of The Engine Components (LUW)
| Component Name |
Callout |
| B23E Camshaft Position Sensor - Exhaust |
1 |
| B23F Camshaft Position Sensor - Intake |
2 |
| B34A Engine Coolant Temperature Sensor 1 |
3 |
| Q8 Control Solenoid Valve Assembly (MH8) |
4 |
| E41 Engine Coolant Thermostat Heater |
5 |
Courtesy of GENERAL MOTORS COMPANY
