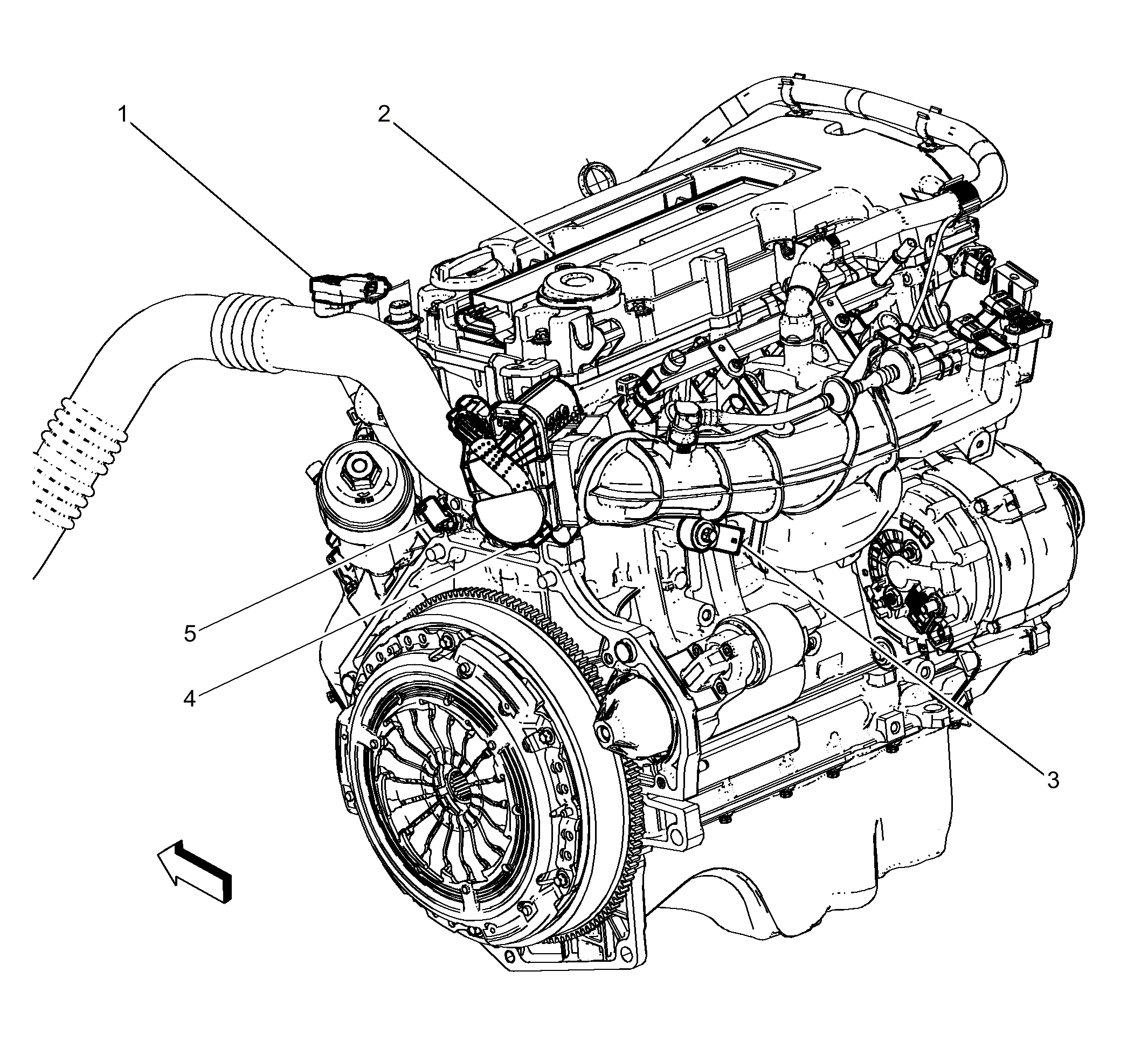

Left Rear of the Engine Components (LUJ)
Left Rear of the Engine Components (LUJ)
| Component Name |
Callout |
| B65 Intake Manifold Pressure and Air Temperature Sensor |
1 |
| T8 Ignition Coil |
2 |
| B68 Knock Sensor |
3 |
| Q38 Throttle Body |
4 |
| B34A Engine Coolant Temperature Sensor 1 |
5 |
Courtesy of GENERAL MOTORS COMPANY
