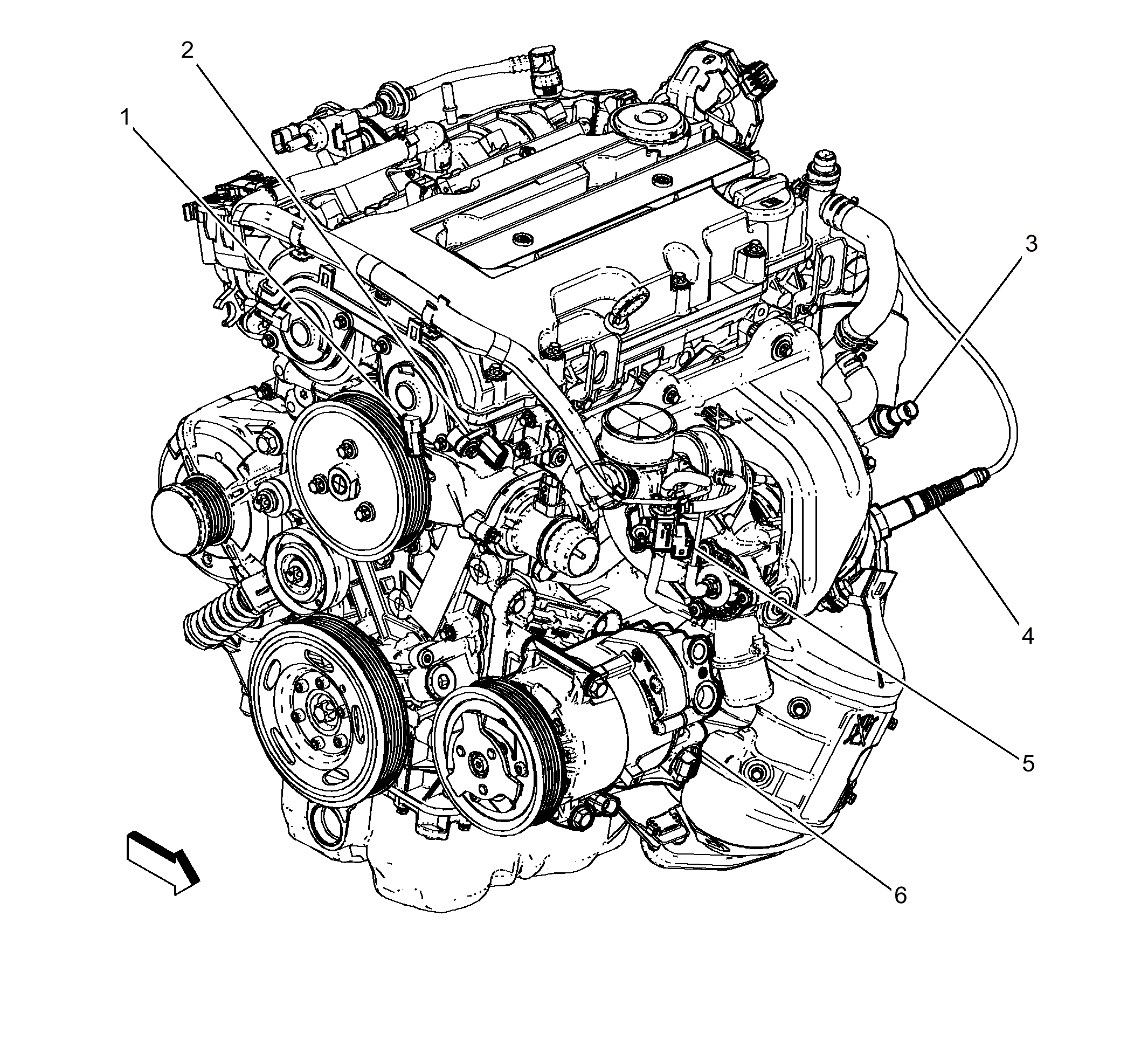

Right Front of the Engine Components (LUJ)
Right Front of the Engine Components (LUJ)
| Component Name | Callout |
|---|---|
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust | 1 |
| B23E Camshaft Position Sensor - Exhaust | 2 |
| B37 Engine Oil Pressure Switch | 3 |
| B52A Heated Oxygen Sensor 1 | 4 |
| Q42 Turbocharger Wastegate Solenoid Valve | 5 |
| Q46 A/C Compressor Solenoid Valve | 6 |
