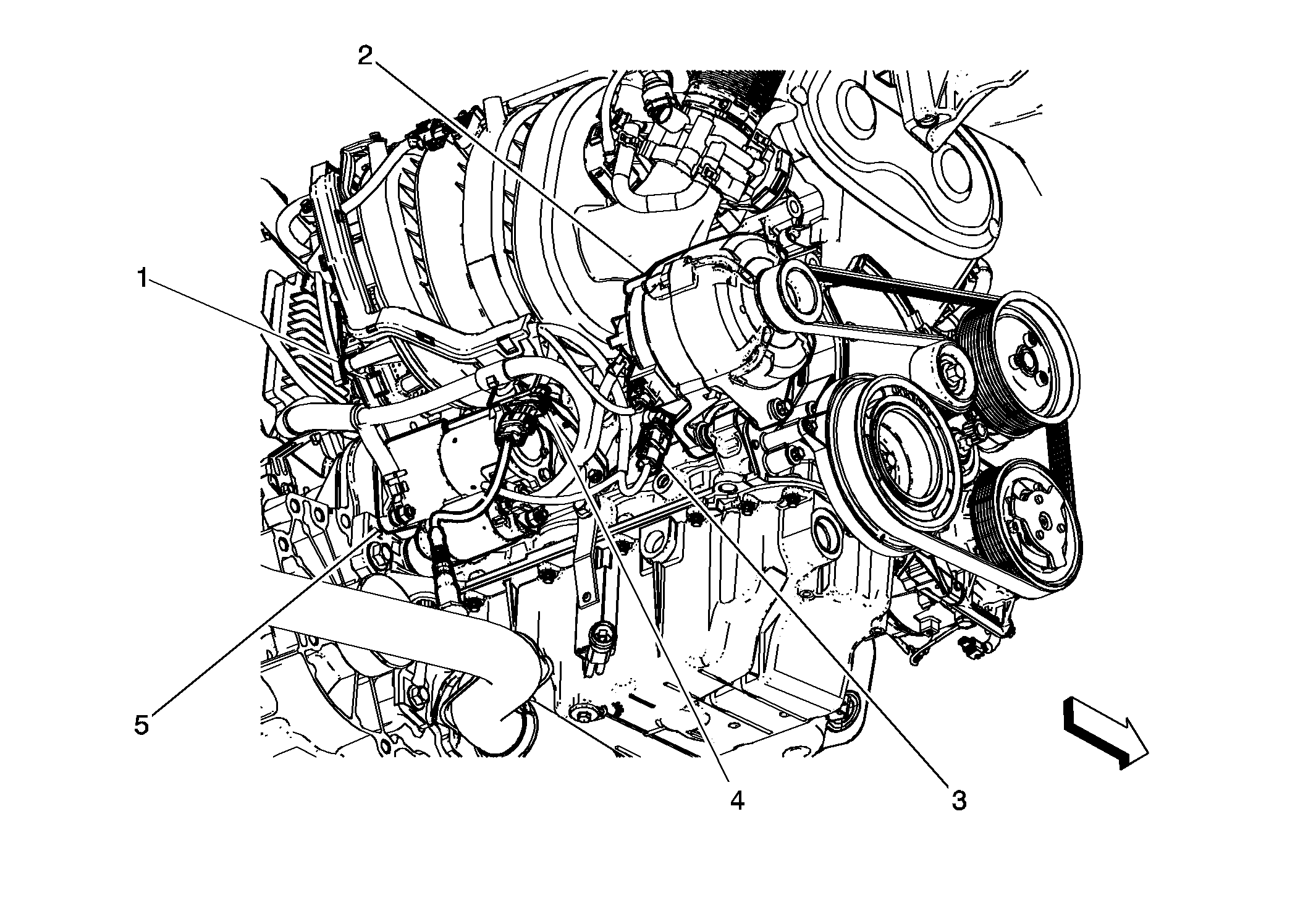

Right Rear Of The Engine Components (LUW)
Right Rear Of The Engine Components (LUW)
| Component Name |
Callout |
| Q22 Intake Manifold Tuning Solenoid Valve |
1 |
| G13 Generator |
2 |
| B68 Knock Sensor |
3 |
| B52B Heated Oxygen Sensor 2 |
4 |
| M64 Starter Motor |
5 |
Courtesy of GENERAL MOTORS COMPANY
