Driver Information Display Replacement

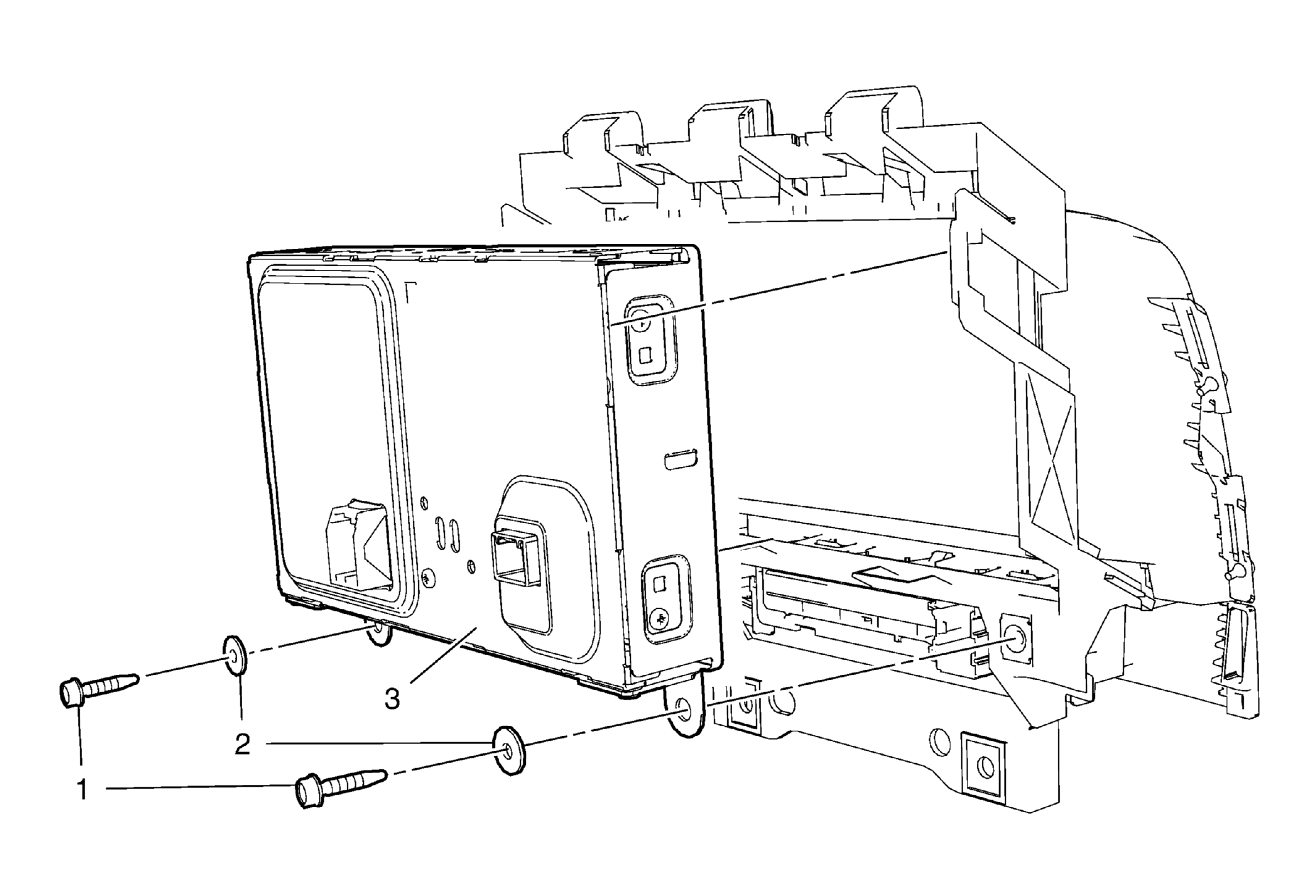

Fig 1: Driver Information Display

Courtesy of GENERAL MOTORS COMPANY

Driver Information Display Replacement

Callout	Component Name
Preliminary Procedure  Remove driver information display bezel. Refer to Driver Information Display Bezel Replacement .
1	Driver Information Display Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Driver Information Display Washer (Qty: 2)
3	Driver Information Display Procedure  Slide the driver information display bezel from driver information display.
