Fuel Tank Heat Shield Replacement

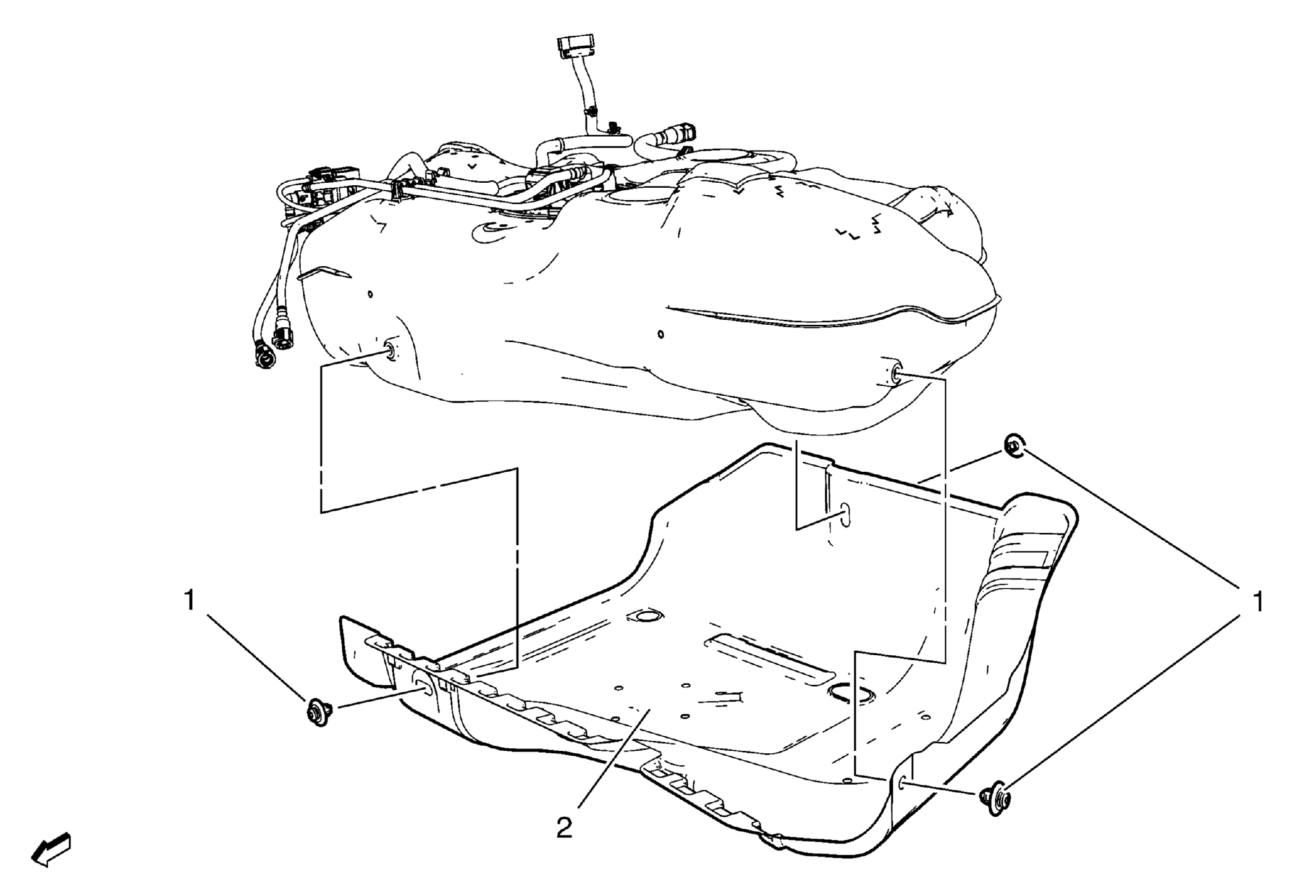

Fig 1: Fuel Tank Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Fuel Tank Heat Shield Replacement

Callout	Component Name
WARNING: Refer to Safety Goggles and Fuel Warning . WARNING: Refer to Actions to Take When Working with Fuel Warning . Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Tank Heat Shield Retaining Clamp (Qty: 3)
2	Fuel Tank Heat Shield
