Installation Procedure

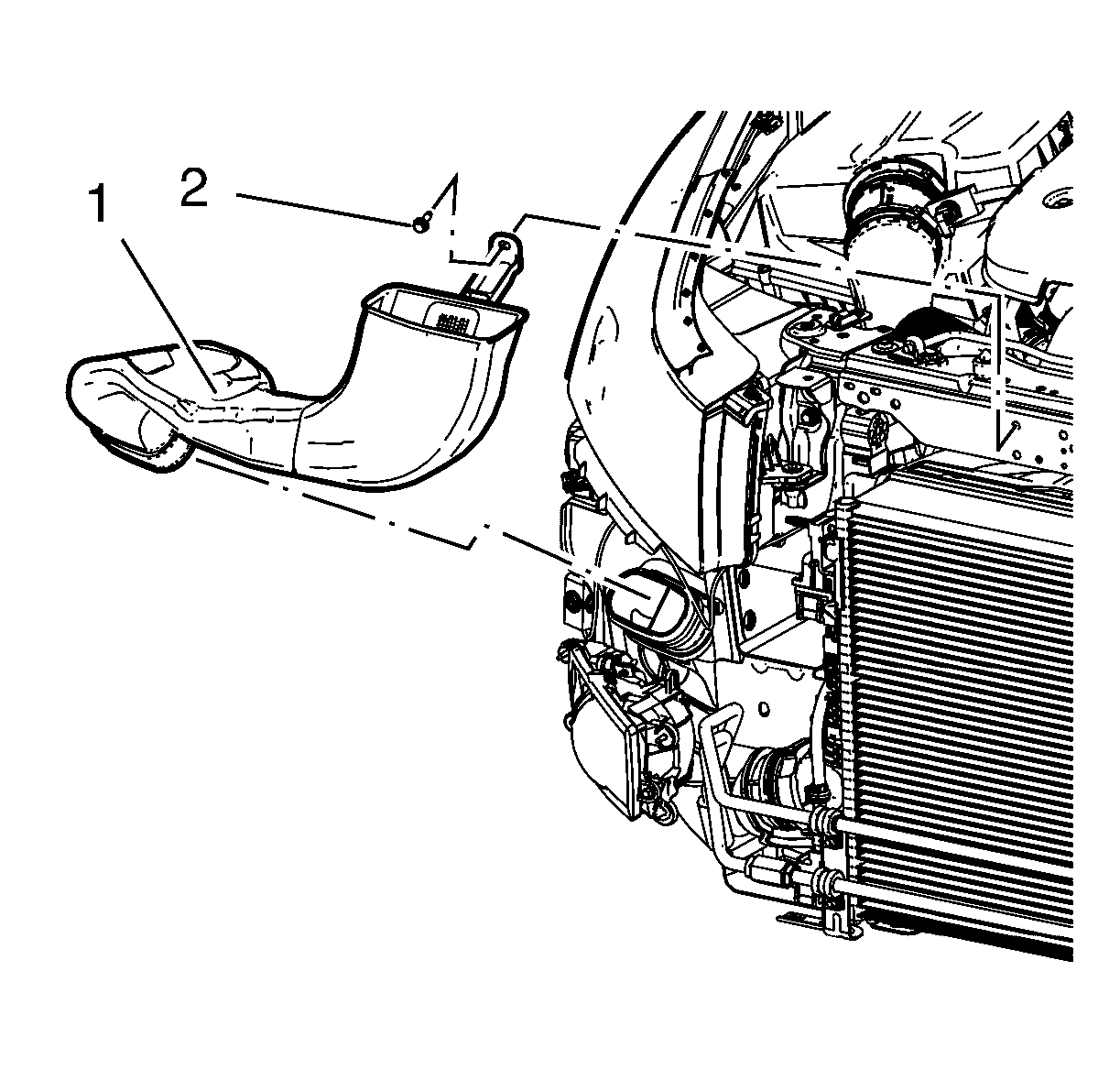

    Fig 1: Intake Air Duct And Bolt
    GM2027420Courtesy of GENERAL MOTORS COMPANY
  1. Install the intake air duct (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the intake air duct bolt (2) and tighten the to 5 N.m (44 lb in).
  3. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement .
