Crankshaft Position Sensor Replacement
Crankshaft Position Sensor Replacement

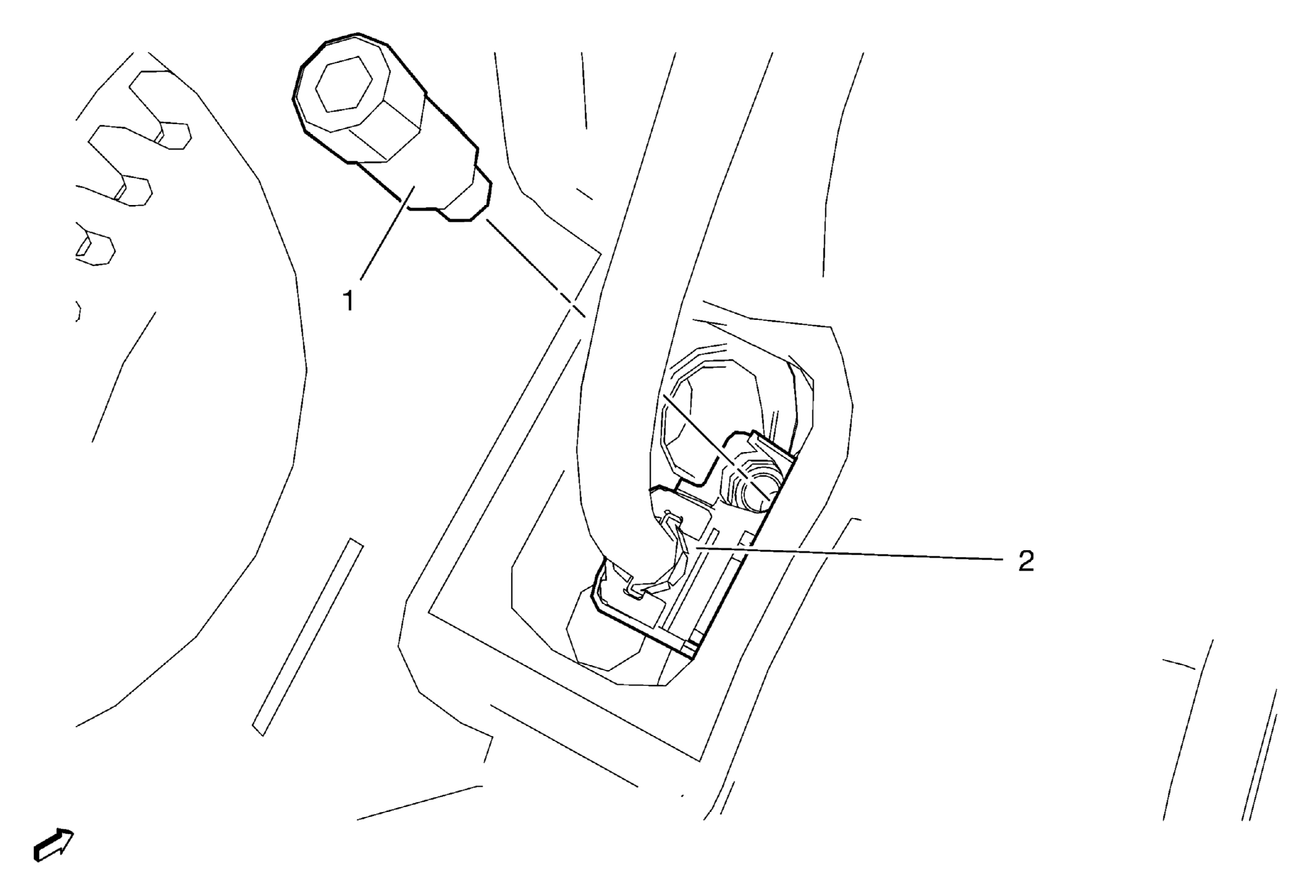

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the starter motor. Refer to Starter Replacement (LUW) , Starter Replacement (LUJ) . |
|
| 1 | Crankshaft Position Sensor Fastener
CAUTION:
Refer to Fastener Caution . Procedure Remove the crankshaft position sensor bolt Tighten 4.5 N.m (40 lb in) |
| 2 | Crankshaft Position Sensor Procedure Disconnect all electrical connectors as needed. |
