Installation Procedure

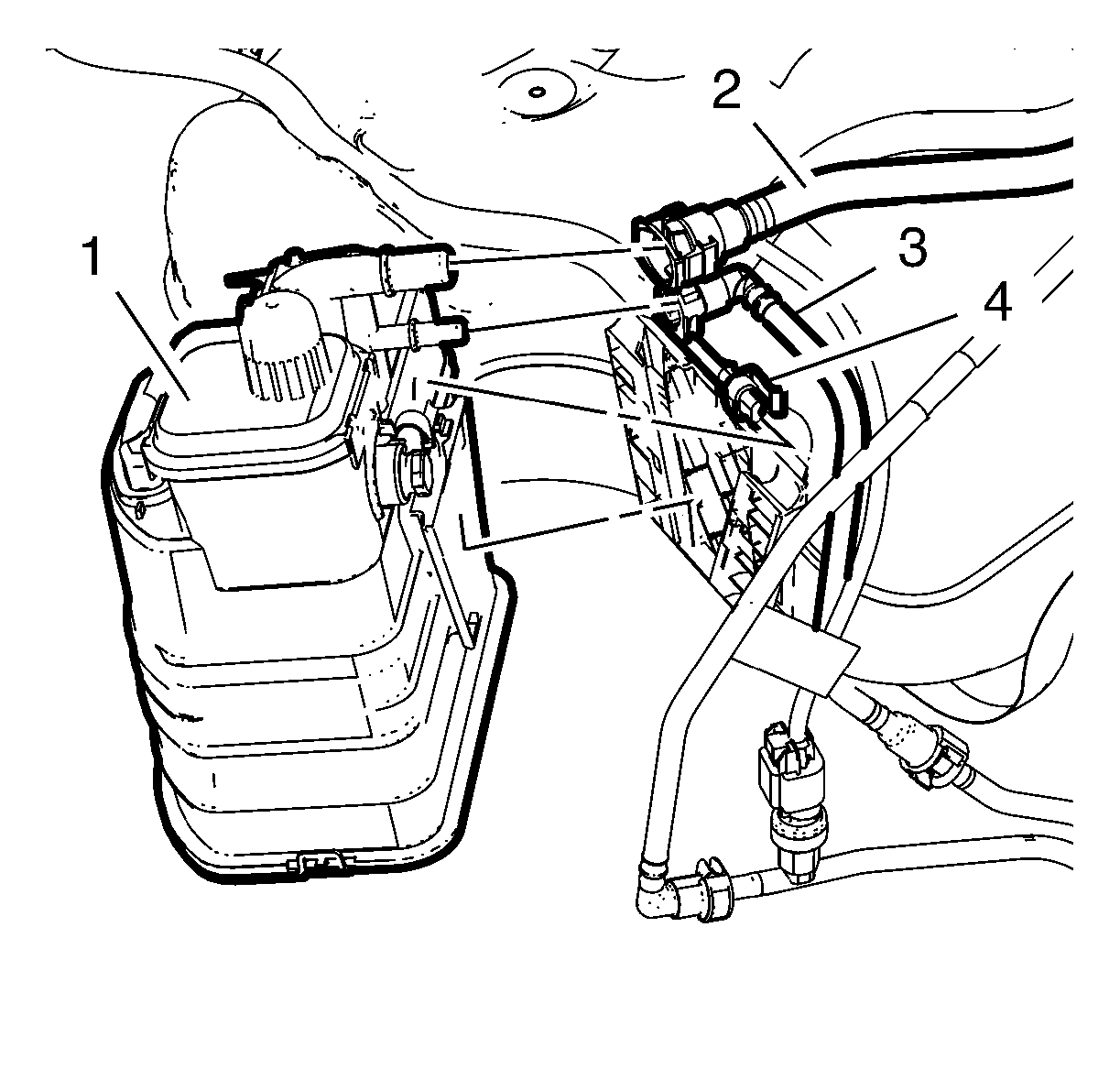

    Fig 1: Evaporative Emission Canister
    GM2373021Courtesy of GENERAL MOTORS COMPANY
  1. Install the evaporative emission canister (1) to the evaporative emission canister bracket.
  2. Connect the evaporative emission canister purge pipe (3).
  3. Connect the evaporative emission canister wiring harness plug (4).
  4. Connect the evaporative emission vent pipe (2).
  5. Raise the fuel tank to its original position.
    6. Fig 2: Fuel Tank Straps
    GM2028244Courtesy of GENERAL MOTORS COMPANY
  6. Install the 2 fuel tank straps (1).
    7. CAUTION:

    Refer to Fastener Caution .

  7. Install the 2 fuel tank strap bolts (2) and tighten to 22 N.m (16 lb ft).
  8. Remove the suitable adjustable jack.

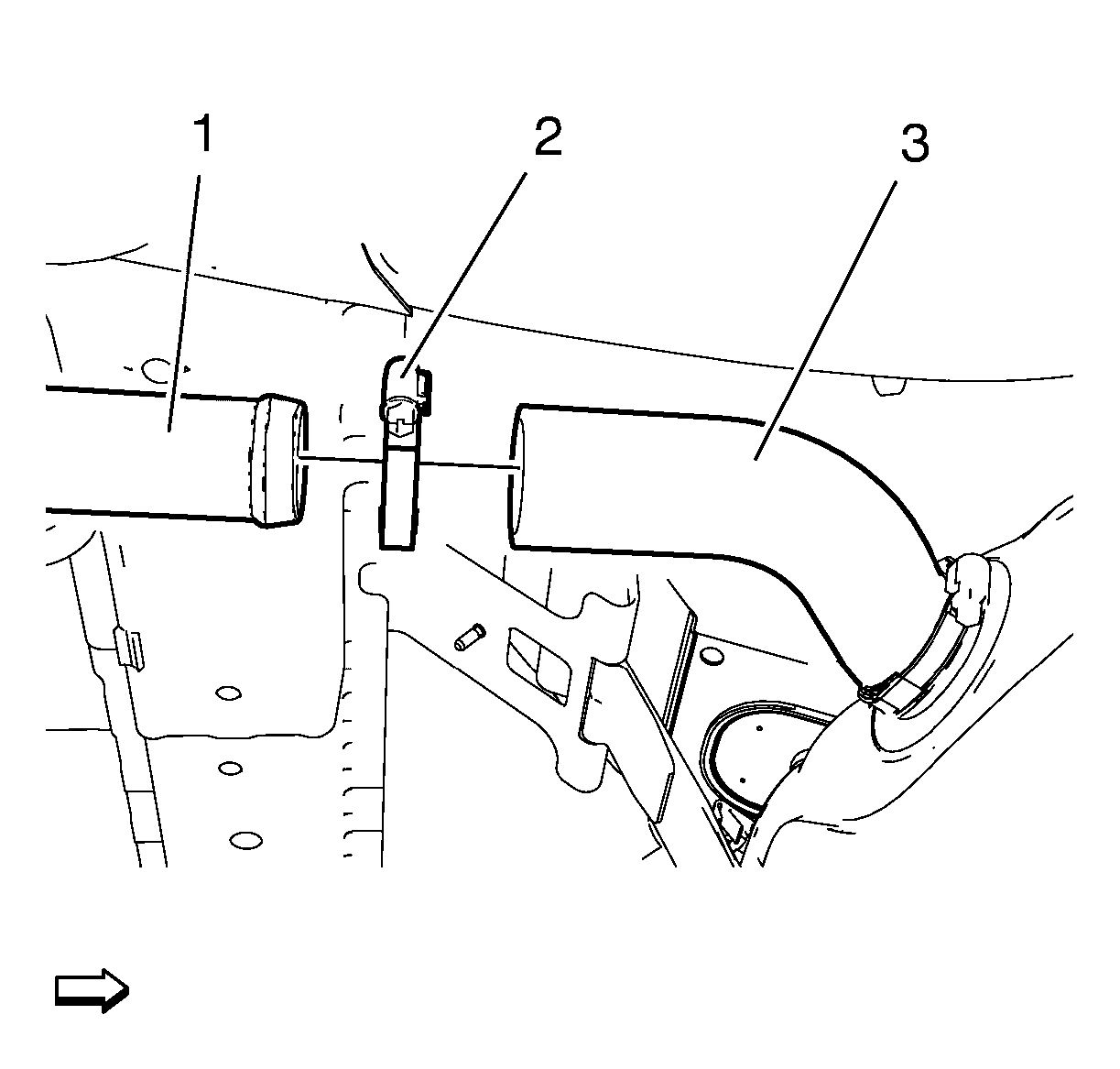

    9. Fig 3: Fuel Tank Filler Pipe
    GM2028238Courtesy of GENERAL MOTORS COMPANY
  9. Install the fuel tank filler hose (3) to the fuel tank filler pipe (1).
  10. Install the clamp (2).
  11. Lower the vehicle.
  12. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
  13. Close the hood.
