Chevrolet
›
2012
›
Cruze LS, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communications System
›
Wiring Schematics
›
Body Control System Wiring Schematics
›
Power, Ground, Data Communications And Subsystem References (1 Of 4)
Power, Ground, Data Communications And Subsystem References (1 Of 4)

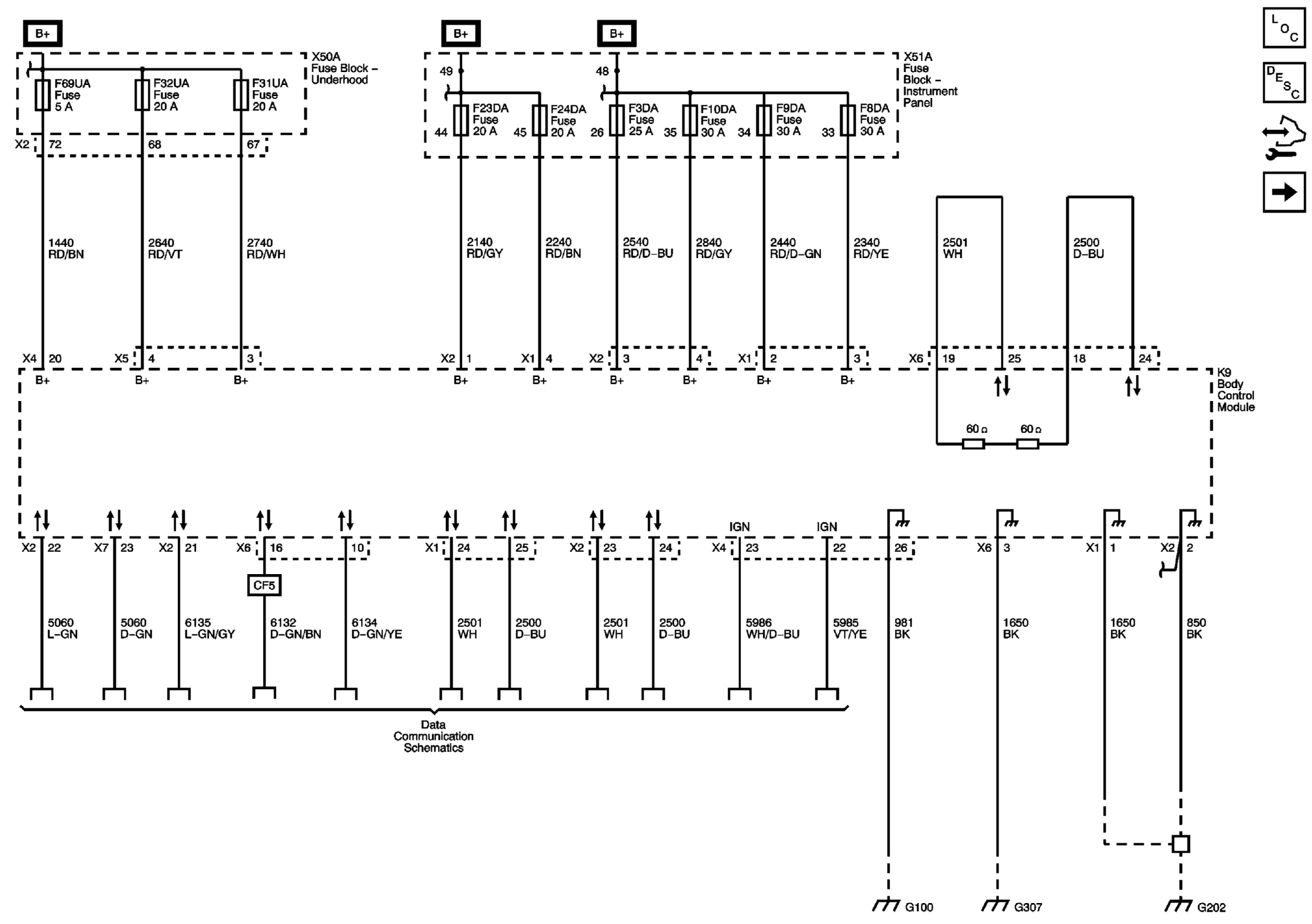

Fig 1: Power, Ground, Data Communications And Subsystem References Wiring Schematic (1 Of 4)
