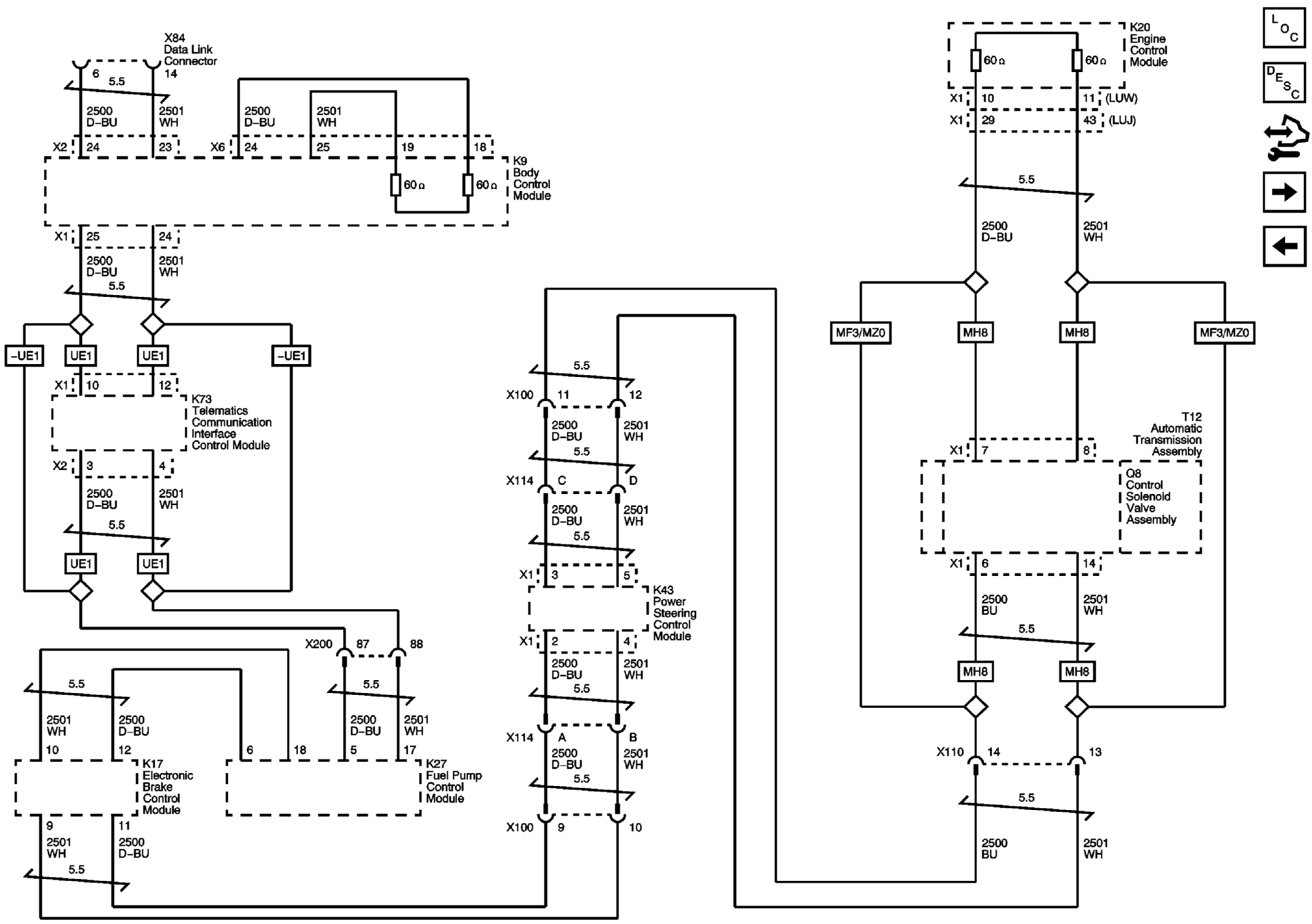

Home › Chevrolet › 2012 › Cruze LS, Automatic Trans › Repair and Diagnosis › Engine Performance › System › Data Communications System › Wiring Schematics › Data Communication Wiring Schematics › High Speed GMLAN
