Engine Shield Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

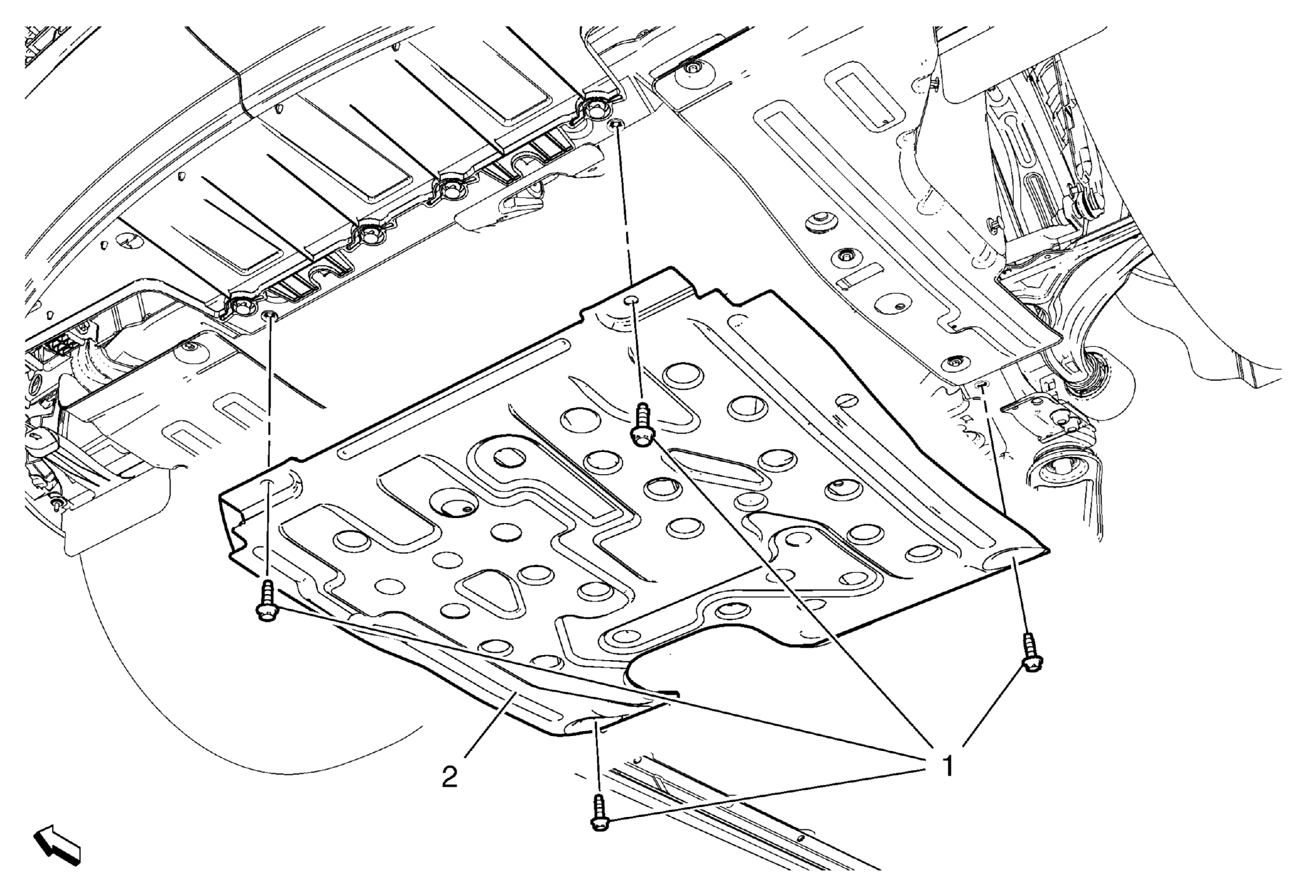

Fig 1: View Of Engine Shield And Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Engine Shield Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 40 N.m (30 lb ft)
2	Engine Shield
