Roof Side Rail Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

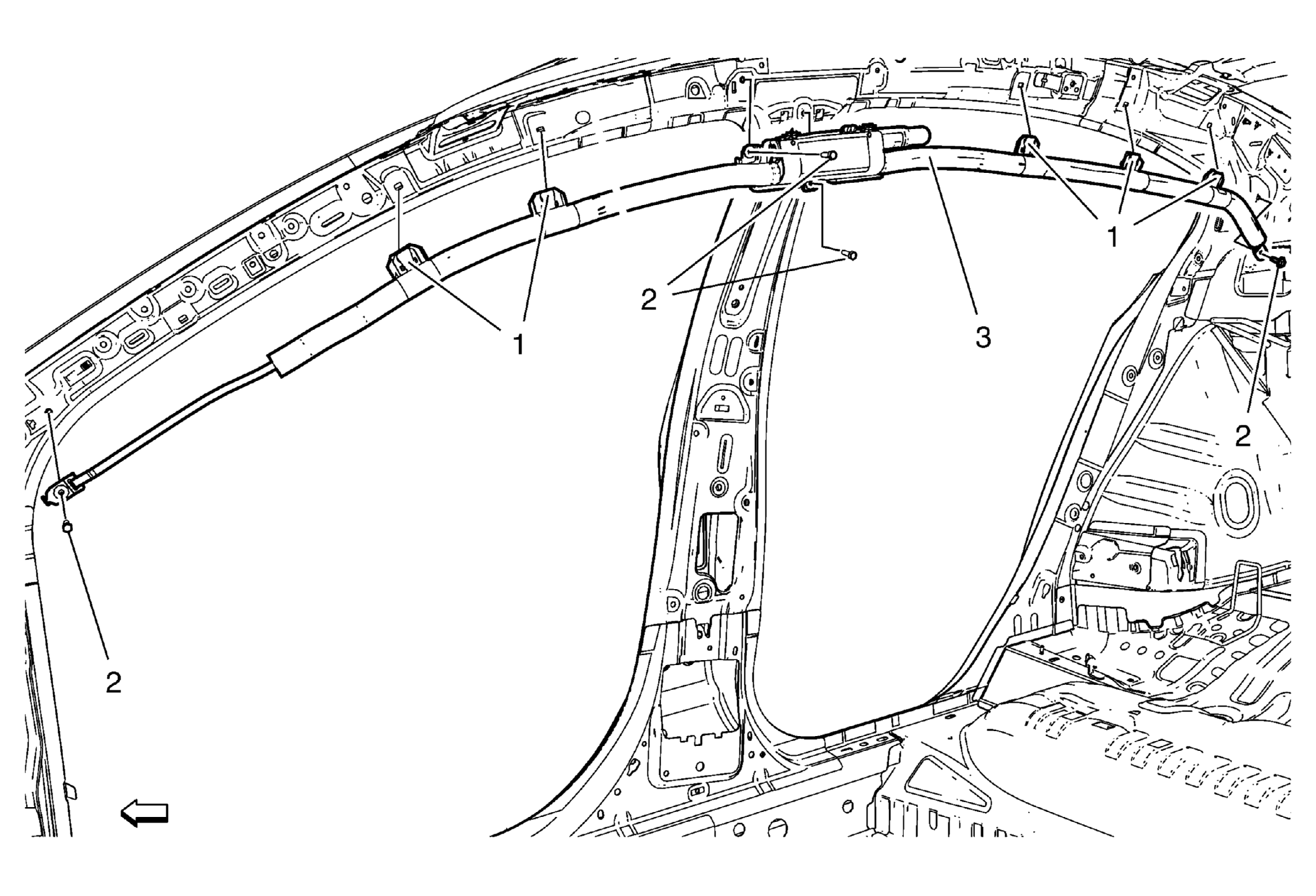

Fig 1: Roof Side Rail Inflatable Restraint Module, Retainers And Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS. WARNING: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling . Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs. Preliminary Procedures Disable SIR system. Refer to SIR Disabling and Enabling . Remove the headliner. Refer to Headlining Trim Panel Replacement (with Sunroof) or Headlining Trim Panel Replacement (without Sunroof) .
1	Inflatable Restraint Roof Rail Retainer (Qty: 5)
2	Inflatable Restraint Roof Rail Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 9.5 N.m (84 lb in)
3	Inflatable Restraint Roof Rail Module
