Installation Procedure
WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the electrical connectors.

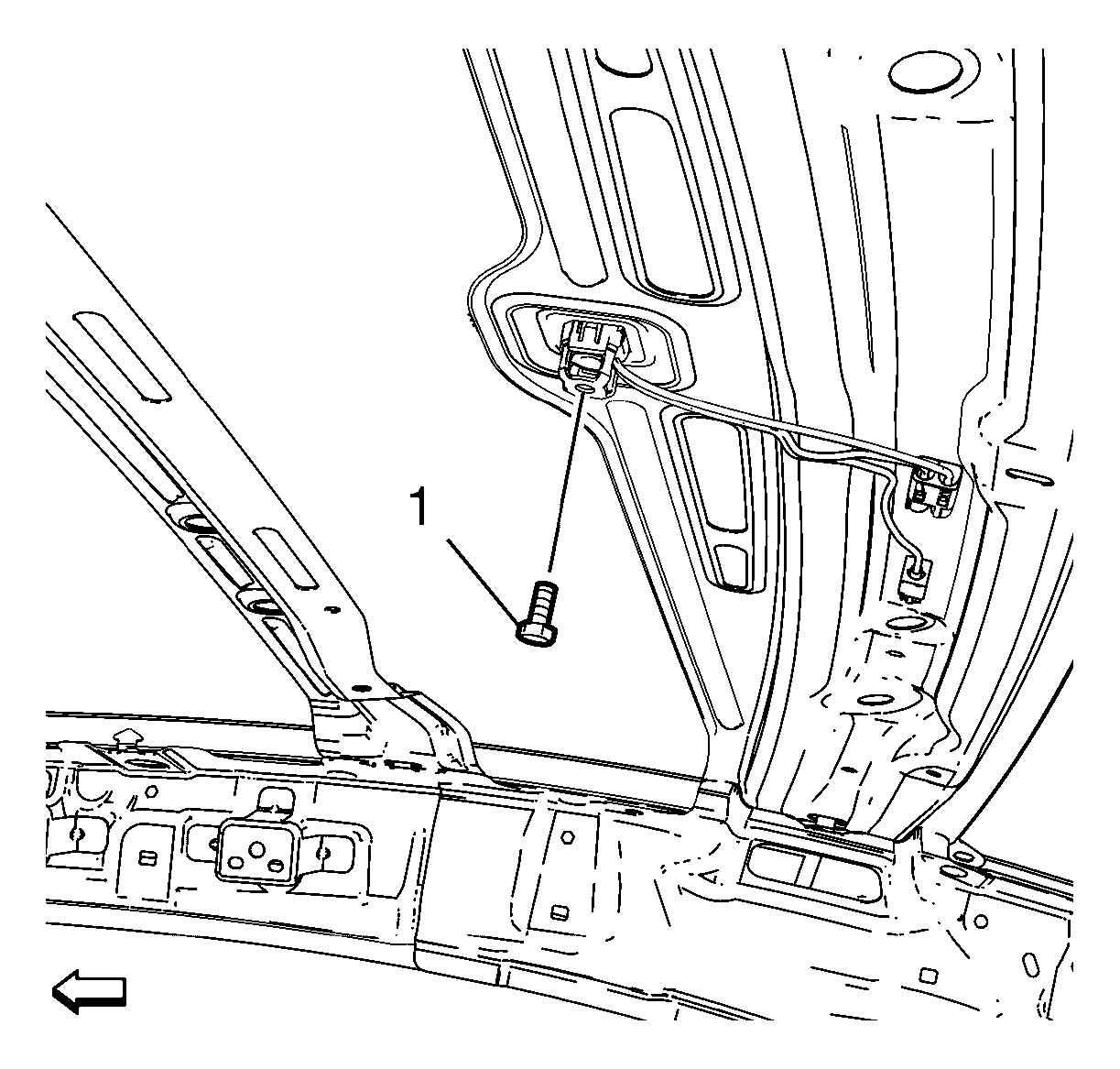

- Install the radio antenna base (1).
- Install the radio antenna base bolt (1) and tighten to 10 N.m (89 lb in).
- Install the headlining trim panel. Refer to Headlining Trim Panel Replacement (with Sunroof) , Headlining Trim Panel Replacement (without Sunroof) .
CAUTION:
Refer to Fastener Caution .
