Radio Front Speaker Replacement

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

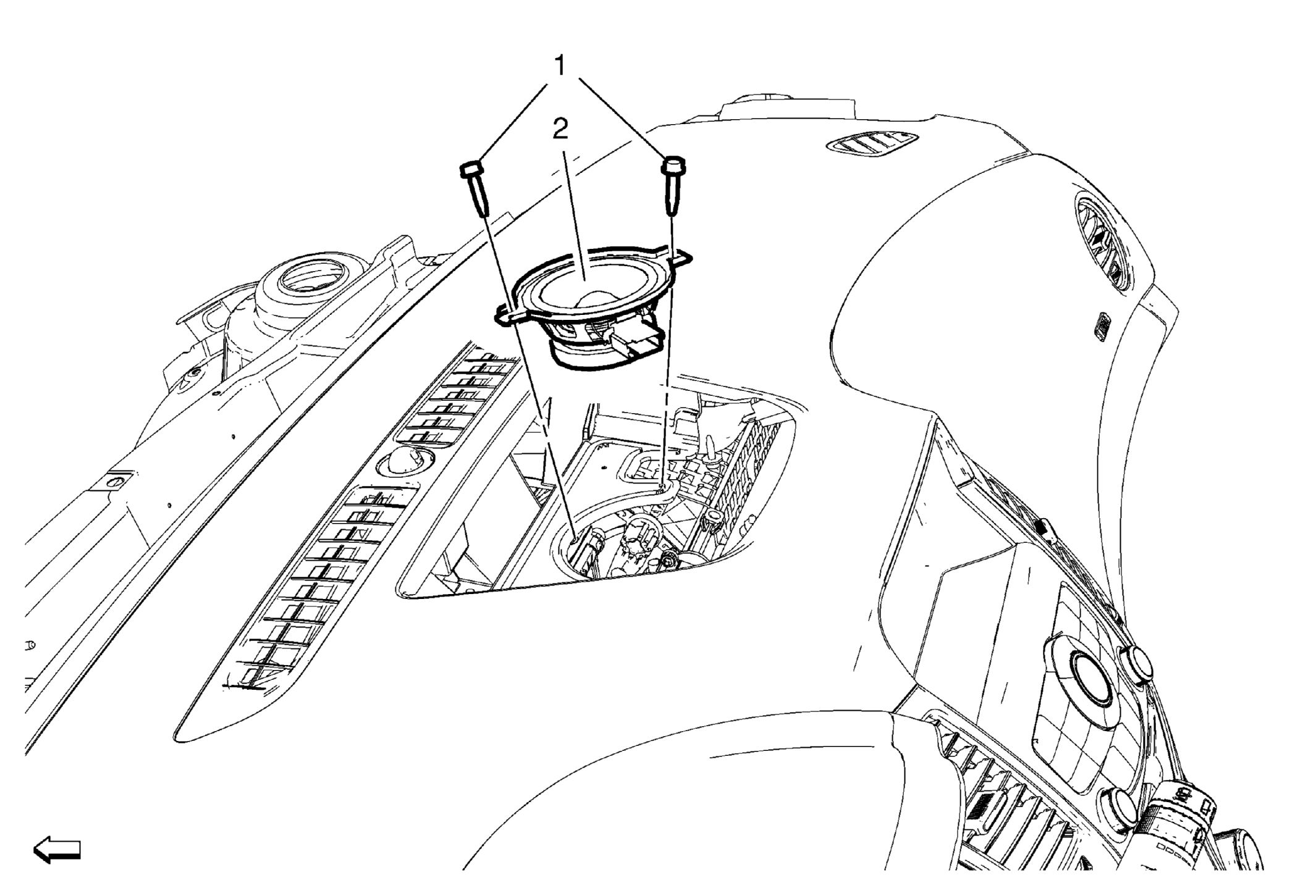

Fig 1: Radio Front Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove instrument panel upper trim pad insert. Refer to Instrument Panel Upper Trim Pad Insert Replacement .
1	Radio Front Speaker Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Front Speaker
