Driver Door Components

Component Name	Callout
A23D Door Latch Assembly - Driver	1
A9A Outside Rearview Mirror - Driver	2
S52 Outside Rearview Mirror Switch	3
P19AG Speaker - Left Front Door	4
S79D Window Switch - Driver	5
M74D Window Motor - Driver	6

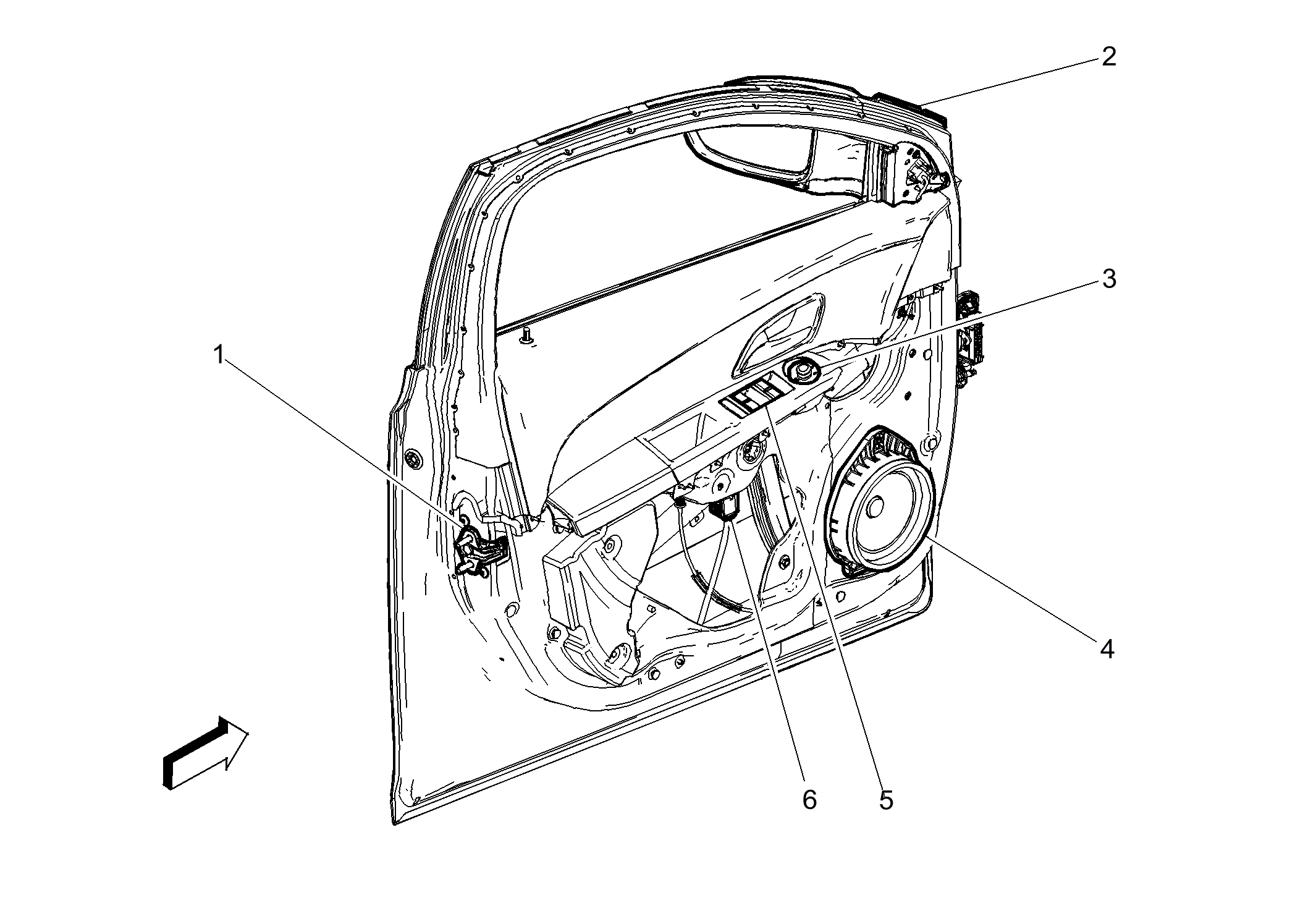

Fig 1: Driver Door Components

Courtesy of GENERAL MOTORS COMPANY
