Passive Entry And Passive Start Antennas (ATH)

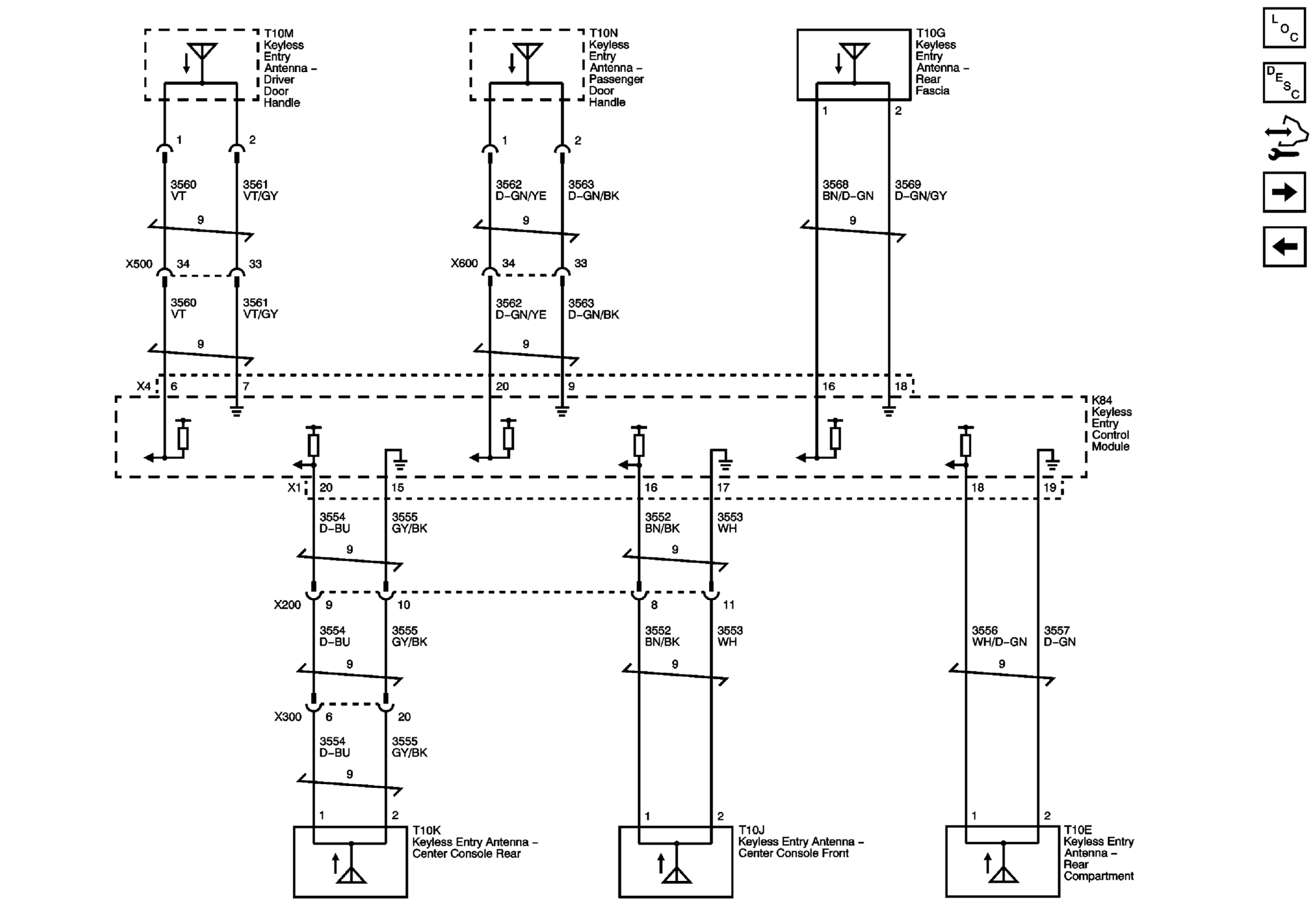

Fig 1: Passive Entry And Passive Start Antennas (ATH) Wiring Schematic
GM2760037Courtesy of GENERAL MOTORS COMPANY
